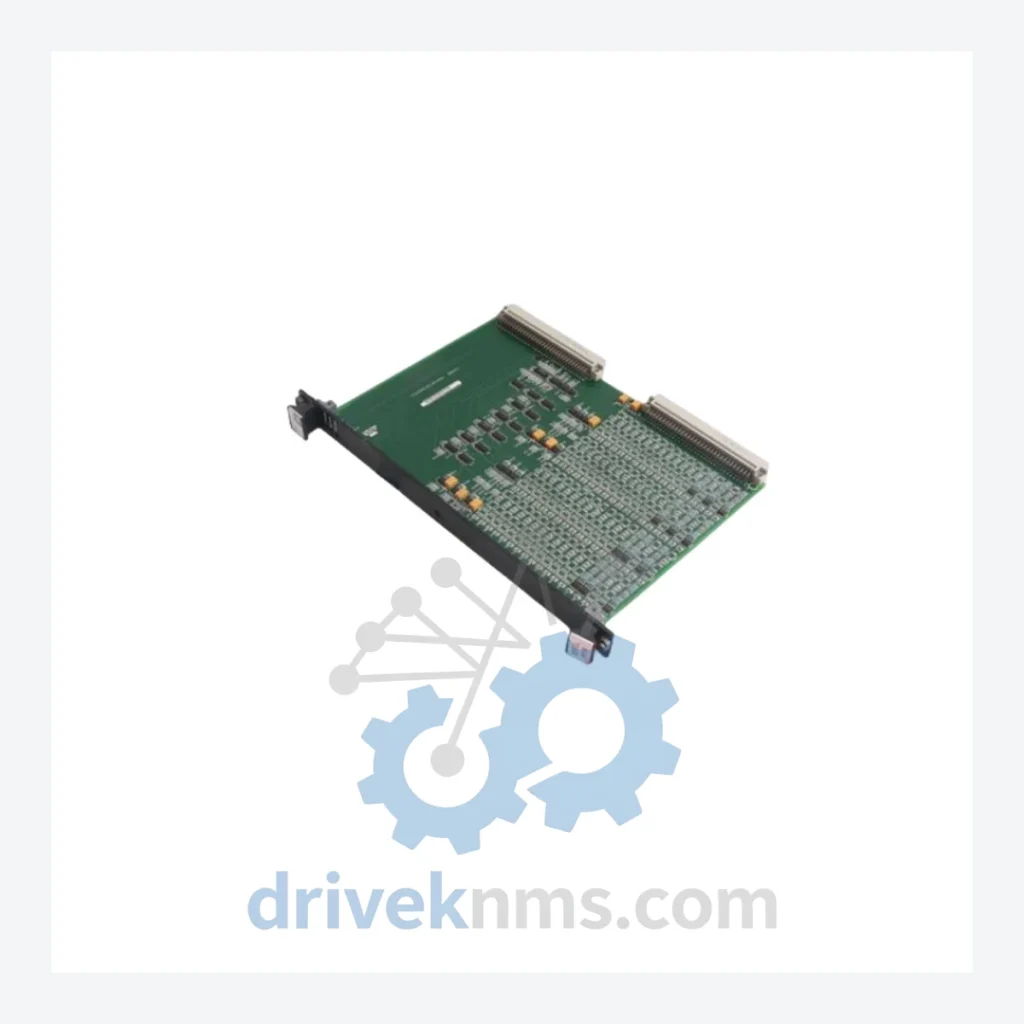

GE IS200JPDMG1ADC Printed Circuit Board – Mark VI Series Modules

Technical Dossier

Product Details And Specifications

GE IS200 Series Technical Notes

The GE IS200 series represents the core I/O, control, and communication module family deployed within GE's Mark VI Turbine Control System and EX2100 Excitation Control platform. These systems are installed across heavy industrial sectors globally — including gas turbine power plants, combined-cycle facilities, petrochemical refineries, offshore platforms, and nuclear auxiliary systems. The Mark VI platform, introduced in the mid-1990s as the successor to the Mark V, established the IS200 module family as the standard hardware layer for turbine sequencing, protection, and excitation control. Installed base estimates place Mark VI systems in thousands of generating units worldwide, making IS200 modules among the most actively sourced industrial spare parts in the power generation sector.

The Evolution of IS200 Architecture

The IS200 module family was engineered to operate within the Mark VI's triple-redundant (TMR) and simplex (S) hardware configurations. Early deployments (1995–2002) relied on VME-based backplane architecture with dedicated I/O racks communicating over the IONet Ethernet backbone. The IS200 series replaced the earlier IS215 and IS410 families used in Mark IV and Mark V systems, introducing 32-bit processing, improved diagnostics, and modular field termination via JumpTec connectors.

Between 2003 and 2012, GE expanded the IS200 catalog to include enhanced communication adapters (Profibus, Modbus, DeviceNet) and high-density I/O modules. The introduction of the Mark VIe platform (circa 2010) brought Ethernet-based I/O over EGD (Ethernet Global Data) protocol, with some IS200 modules remaining backward-compatible in hybrid configurations. As of 2026, the Mark VI hardware is in the mature/end-of-life phase; GE Vernova (formerly GE Gas Power) has transitioned new installations to the Mark VIe and Mark VIeS platforms. This lifecycle status makes IS200 spare parts — including the IS200JPDMG1ADC — critical long-lead items for plants committed to multi-decade operational continuity.

IS200 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced IS200 series modules. Each entry reflects the module's primary functional role within the Mark VI control architecture.

IS200JPDMG1ADC: JPDM printed circuit board; junction panel driver module for Mark VI TMR/simplex systems.
IS200AEPAH1A: Analog I/O module; 16-channel analog input/output for process variable monitoring.
IS200BICLH1A: Bus interface and communication link module; IONet backbone interface card.
IS200CPCLH1A: Controller processor card; primary CPU module for Mark VI simplex control rack.
IS200CPCLH1B: Controller processor card Rev B; updated firmware baseline for Mark VI CPU rack.
IS200DSPXH1A: Digital signal processor module; high-speed turbine speed/phase signal conditioning.
IS200EACFH1A: EX2100 AC feedback module; three-phase AC voltage/current measurement for excitation.
IS200EDCFH1A: EX2100 DC feedback module; DC bus voltage and current sensing for excitation control.
IS200EMIOH1A: Enhanced mixed I/O module; combined DI/DO/AI channels for auxiliary control loops.
IS200EPCTG1A: Ethernet protocol communication module; EGD/Modbus TCP gateway for Mark VI networks.
IS200ERDDH1A: Redundant drive and diagnostic module; monitors drive health in TMR configurations.
IS200ESYSH1A: System power supply module; 28 VDC regulated output for IS200 I/O rack distribution.
IS200EXHSH1A: Excitation hardware interface module; gate drive signal distribution for thyristor bridges.
IS200HFPAG1A: High-frequency pulse accumulator module; turbine flowmeter and speed pulse counting.
IS200IOCAH1A: I/O controller adapter module; rack-level I/O bus master for distributed I/O expansion.
IS200JPDMG1ADC: (See primary SKU above) Junction panel driver; interfaces field wiring termination panels to control rack.
IS200PSCDH1A: Power supply conditioning module; input filtering and surge protection for 125 VDC control power.
IS200STCIH1A: Servo and trip coil interface module; hydraulic servo valve and trip solenoid drive outputs.
IS200TRLYH1A: Relay output module; 16-channel dry-contact relay outputs for alarm and trip circuits.
IS200VSVOH1A: Valve servo and LVDT interface module; electrohydraulic servo control with position feedback.

Quality Control for the IS200 Range

IS200 modules present specific test challenges due to their VME backplane bus architecture, proprietary IONet communication protocol, and multi-layer PCB construction with fine-pitch BGA and PLCC components. DriveKNMS applies the following test protocol to all IS200 units prior to shipment:

Visual inspection under 10× magnification for solder joint integrity, capacitor ESR degradation, and connector pin condition. Functional power-on test using a calibrated IS200-compatible rack simulator to verify module initialization and self-diagnostic pass status. IONet communication verification using protocol analyzer to confirm correct node addressing and data frame integrity. For analog I/O modules (e.g., IS200AEPAH1A), channel-by-channel calibration verification against NIST-traceable reference standards. Burn-in testing at rated operating temperature (0–60°C) for a minimum of 24 hours prior to final inspection sign-off.
