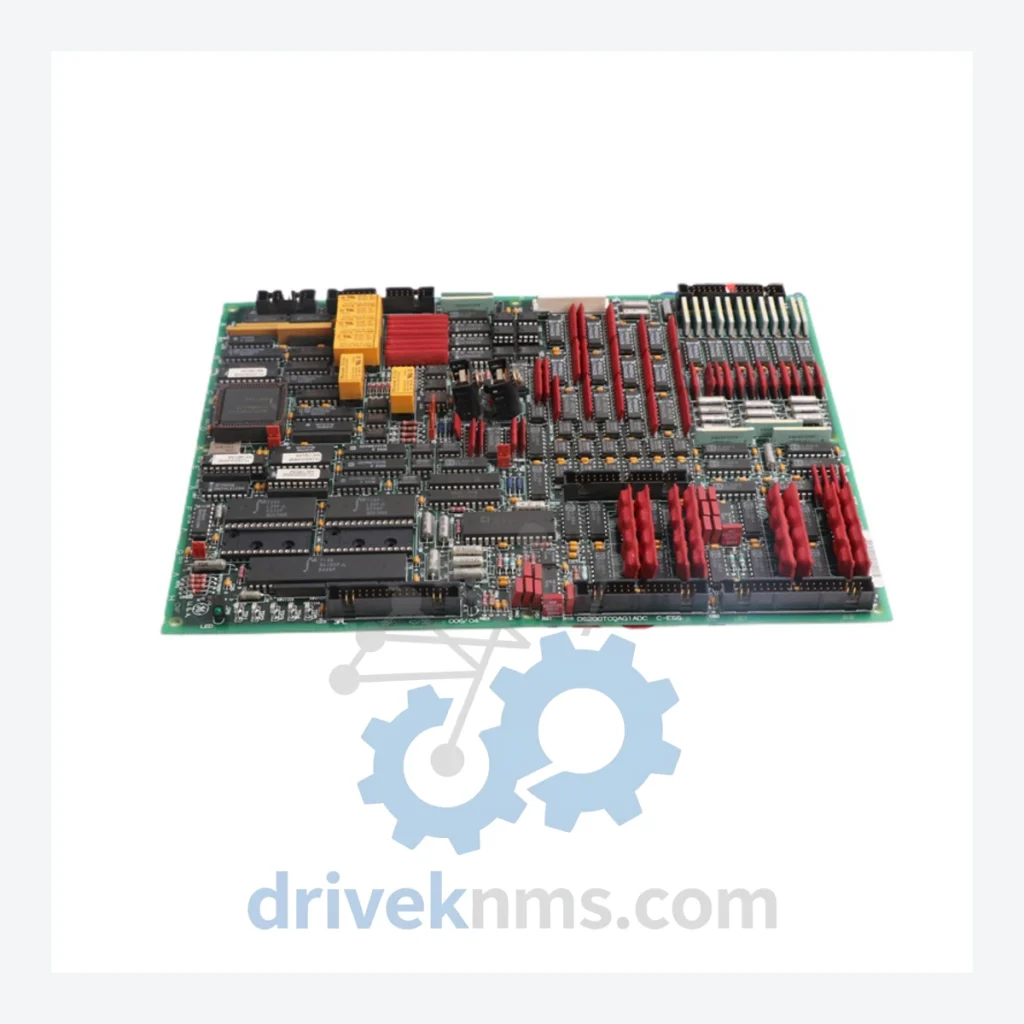

GE IS215WEMAH1BB / IS200WEMAH1A: Mark VIe WEMA Excitation Module

Technical Dossier

Product Details And Specifications

GE IS200/IS215 Series Technical Notes

The GE IS200 and IS215 series are core hardware platforms within GE's Mark VIe turbine control system — one of the most widely deployed distributed control architectures in heavy industry globally. These modules are installed in gas turbine power plants, steam turbine facilities, combined-cycle plants, nuclear auxiliary systems, offshore oil & gas platforms, and petrochemical refineries. The Mark VIe platform replaced the earlier Mark V and Mark VI systems and introduced a fully redundant, triple-redundant (TMR) I/O and controller architecture. IS200/IS215 boards operate on the IONet and UDH (Unit Data Highway) communication backbones, and are designed for continuous operation in Class G3 corrosive environments per ISA-71.04.

The Evolution of IS200/IS215 Architecture

The IS200 series was introduced alongside the Mark VIe platform in the early 2000s as GE's response to the need for modular, scalable turbine control hardware. Early revisions (Rev A/B boards) used VME-style backplane connectors and communicated over proprietary IONet Ethernet. The IS215 sub-series represents a hardware revision layer — IS215 boards are functionally equivalent to their IS200 counterparts but incorporate revised PCB layouts, updated FPGA firmware, and improved EMI shielding for harsh industrial environments.

By the mid-2010s, GE transitioned many IS200/IS215 functions toward the Mark VIeS (Safety) and Mark VIeR (Redundant) variants, introducing IS420 and IS410 series modules for newer installations. However, the IS200/IS215 installed base remains enormous — hundreds of power generation sites worldwide continue to operate on this hardware, making long-term spare parts availability a critical operational concern. Many IS200/IS215 part numbers are now classified as Last Time Buy (LTB) or fully obsolete by GE Vernova, placing the burden of lifecycle support on specialist distributors.

IS200/IS215 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the IS200/IS215 hardware family. Modules are categorized by functional role:

Excitation & Generator Control

IS215WEMAH1BB / IS200WEMAH1A: WEMA excitation management board, dual-revision cross-reference, generator AVR interface.
IS200EACAH1A: Excitation analog control board, AVR signal conditioning and reference input processing.
IS200EXHSG1A: Excitation hardware signal gateway, bridges excitation I/O to Mark VIe IONet.
IS200VCRCH1BBB: Voltage and current regulator control board, used in EX2100e excitation systems.

CPU & Controller Modules

IS215UCVEH2A: Mark VIe main controller board (UCVE), dual-core processor, IONet and UDH interface.
IS200UCVEH2A: Predecessor UCVE controller, single Ethernet port configuration, TMR-compatible.
IS215UCVEH2B: Revised UCVE with enhanced memory and updated firmware support for ToolboxST v05+.
IS200TREGH1BBA: Turbine regulation and governor control board, speed/load reference processing.

Analog I/O Modules

IS200AAIAH1A: Analog input board, 16-channel, 4–20 mA / 0–10 V, used for thermocouple and RTD signal acquisition.
IS200AAOAH1A: Analog output board, 8-channel, 4–20 mA output for valve positioner and actuator control.
IS215AAIAH1A: Revised analog input board, improved noise rejection, drop-in replacement for IS200AAIAH1A.

Digital I/O Modules

IS200DAIAH1A: Digital input board, 24 VDC, 32-channel, used for discrete contact monitoring in turbine protection circuits.
IS200DAOAH1A: Digital output board, relay-driven, 16-channel, for solenoid valve and trip relay actuation.
IS215DAIAH1A: Revised DI board with updated optocoupler isolation and extended temperature rating.

Communication & Network Adapters

IS200IOCIH1A: IONet communication interface card, connects I/O packs to Mark VIe controller over 100 Mbps Ethernet.
IS200STCIH1A: Serial communication interface, RS-232/RS-485, used for legacy device integration (vibration monitors, flow computers).
IS215UCVGH1A: UCVG gateway module, Modbus TCP and DNP3 protocol bridge for SCADA integration.

Power Supply Modules

IS200PSCDH1A: DC power supply distribution board, 28 VDC rail, feeds I/O terminal boards in Mark VIe cabinets.
IS200PSCAH1A: AC/DC power conditioning board, input 120/240 VAC, output 28 VDC regulated.

Sourcing Hard-to-Find & Obsolete IS200/IS215 Parts

For operators running Mark VIe systems on extended service agreements (ESA) or self-maintained sites, DriveKNMS provides: revision-matched board sourcing, cross-revision compatibility verification, and emergency same-week dispatch for critical plant outage scenarios. Boards are stored in ESD-safe, climate-controlled facilities and shipped with full traceability documentation.

Quality Control for the IS200/IS215 Range

IS200/IS215 boards present specific test challenges due to their multi-layer PCB construction, FPGA-based logic, and backplane bus communication dependencies. DriveKNMS applies the following test protocol to all IS200/IS215 units prior to dispatch:
