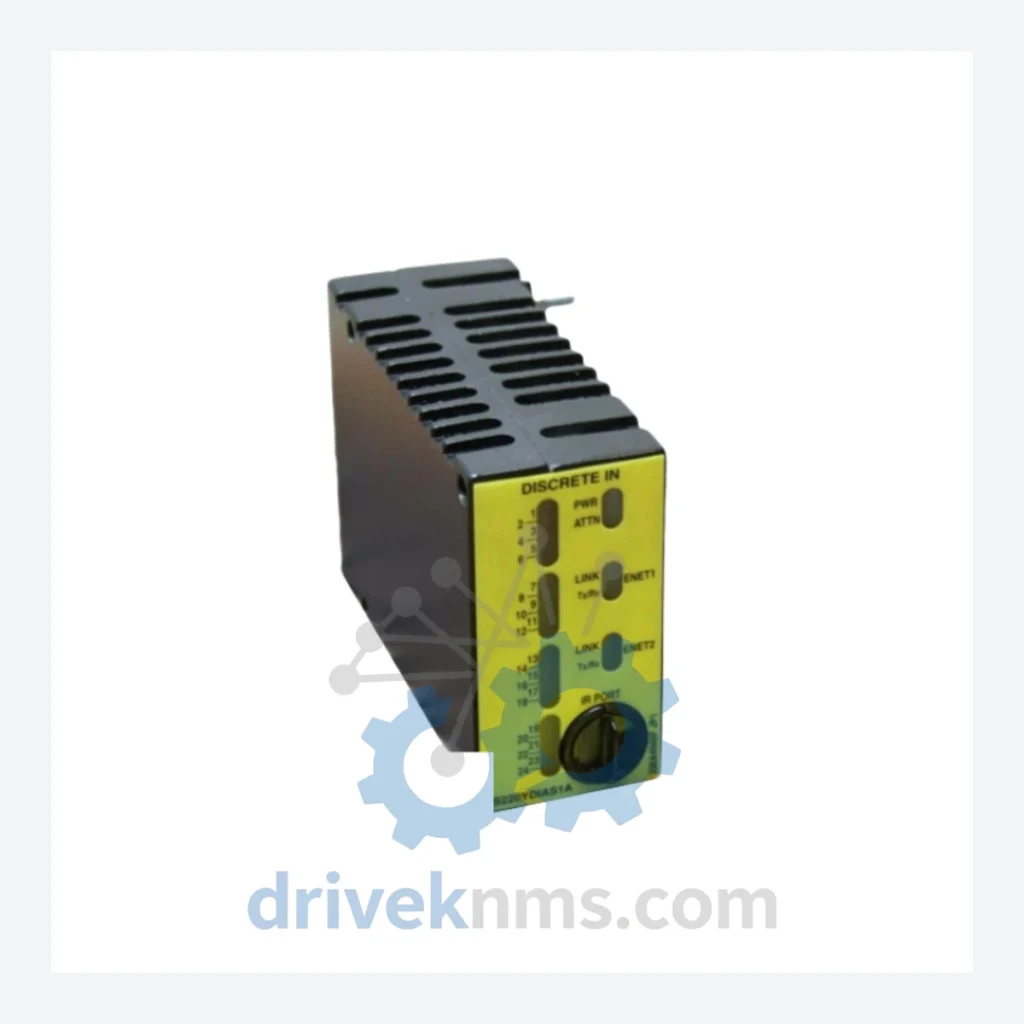

GE Mark VIe Modules: IS220YDIAS1AK

Technical Dossier

Product Details And Specifications

GE Mark VIe Series Technical Notes

With GE's turbine control installed base measured in tens of thousands of units globally, the demand for Mark VIe spare modules — particularly I/O packs — remains structurally persistent. Plant operators running 20- to 30-year asset lifecycles cannot simply retire a turbine because a single I/O module is no longer in active production. The economics are unambiguous: sourcing a replacement module at market price is orders of magnitude cheaper than a forced outage or a full control system migration.

DriveKNMS reviews sourcing options for this model through RFQ handling before quotation.

The Evolution of Mark VIe Architecture

GE's turbine control lineage progressed through several distinct generations: the relay-based systems of the 1960s gave way to the Mark I through Mark IV digital platforms through the 1970s–1990s. The Mark V (introduced early 1990s) established the distributed I/O concept that persists today. The Mark VI followed with enhanced diagnostics and redundancy options. The Mark VIe, introduced in the mid-2000s, represented a fundamental architectural shift — moving to an Ethernet-based IONet backbone (replacing the earlier serial IONET), adopting the VCMI (VME Controller Module Interface) architecture, and introducing the I/O Pack form factor as a field-mountable, self-contained signal conditioning unit.

The I/O Pack design — of which the IS220YDIAS1AK is a member — places signal conditioning electronics directly at the terminal board, reducing wiring complexity and improving noise immunity. Each pack communicates with the controller via the IONet Ethernet segment. This architecture introduced compatibility boundaries: Mark VI I/O boards are not interchangeable with Mark VIe I/O Packs without terminal board changes. Plants upgrading from Mark VI to Mark VIe must account for this at the hardware level.

As the Mark VIe platform matures, GE has introduced the Mark VIeS (safety-rated) and Mark VIeEx (hazardous area) variants, and more recently the Mark VIe with Predix-based analytics integration. However, the core I/O Pack hardware — including YDIAS, YDOAS, YDIAG, and related modules — remains the field interface standard across the installed base.

Mark VIe Full Catalog & Functionalities (SKU List)

The following represents a structured reference of confirmed Mark VIe I/O Pack and associated module SKUs, organized by functional category. All models listed are verified members of the Mark VIe ecosystem.

Discrete Input I/O Packs

• IS220YDIAS1AK: Discrete Input I/O Pack, 24 VDC field inputs, IONet interface, field-mount
• IS220YDIAS1A: Discrete Input I/O Pack, earlier revision, functionally equivalent to AK
• IS220YDIAG1A: Discrete Input I/O Pack, grouped input configuration, diagnostic-grade
• IS220PDIAH1A: Discrete Input I/O Pack, high-density, 32-channel configuration

Discrete Output I/O Packs

• IS420YDOAS1B: Discrete Output I/O Pack, relay output type, 24 VDC coil
• IS220YDOAS1A: Discrete Output I/O Pack, standard relay outputs, IONet-connected
• IS220PDOAH1A: Discrete Output I/O Pack, high-density output, 32-channel

Analog Input I/O Packs

• IS220PAICH1A: Analog Input I/O Pack, 4–20 mA / 0–10 V, 16-channel
• IS220PAIAH1A: Analog Input I/O Pack, high-accuracy, thermocouple/RTD compatible
• IS220PTCCH1A: Thermocouple Input I/O Pack, multi-type TC support, cold junction compensation
• IS220PRTDH1A: RTD Input I/O Pack, 3-wire and 4-wire RTD, Pt100/Pt1000

Analog Output I/O Packs

• IS220PAOAH1A: Analog Output I/O Pack, 4–20 mA outputs, 8-channel

Controller & Communication Modules

• IS420UCSBH3A: Mark VIe Controller, UCSB type, triple-redundant capable
• IS420UCSBH3B: Mark VIe Controller, UCSB revision B, enhanced memory
• IS220UCSBS1A: Mark VIe Simplex Controller module
• IS200VCMIH2C: VME Controller Module Interface, backplane communication hub
• IS200VCRCH1A: VME Relay Contact module, hardwired trip interface

Power Supply Modules

• IS200EPSMG1A: Mark VIe Power Supply Module, 28 VDC output, panel-mount
• IS200EPSMG1B: Power Supply Module, revision B, improved thermal management

Sourcing Hard-to-Find & Obsolete Mark VIe Parts

GE's transition toward the Mark VIe with Predix integration and newer HMI platforms has placed portions of the classic Mark VIe I/O Pack catalog into reduced-production or end-of-life status. For plant operators, this creates a procurement gap: the turbine asset has 10–15 years of remaining operational life, but the OEM's active support window is narrowing.

Quality Control for the Mark VIe Range

Mark VIe I/O Packs present specific inspection challenges due to their integrated terminal board interface, IONet Ethernet port, and onboard signal conditioning circuitry. DriveKNMS applies a five-stage inspection protocol to all Mark VIe modules prior to dispatch:

1. Visual & Mechanical Inspection: Connector pin integrity check, housing crack assessment, label and revision marking verification against GE's part numbering schema.
2. Electrolytic Capacitor Assessment: Capacitor ESR (Equivalent Series Resistance) measurement on all onboard electrolytic capacitors. Aged capacitors are the primary failure mode in modules stored beyond five years.
3. Firmware & Revision Verification: Where accessible, firmware version is read and cross-referenced against GE's compatibility matrix for the target controller revision.
4. IONet Communication Test: Module is powered and IONet Ethernet communication is verified using a Mark VIe-compatible test bench. Packet loss and response latency are logged.
5. Functional Signal Test: Discrete input channels are exercised with 24 VDC test signals. Channel-by-channel pass/fail results are documented and shipped with the unit.
