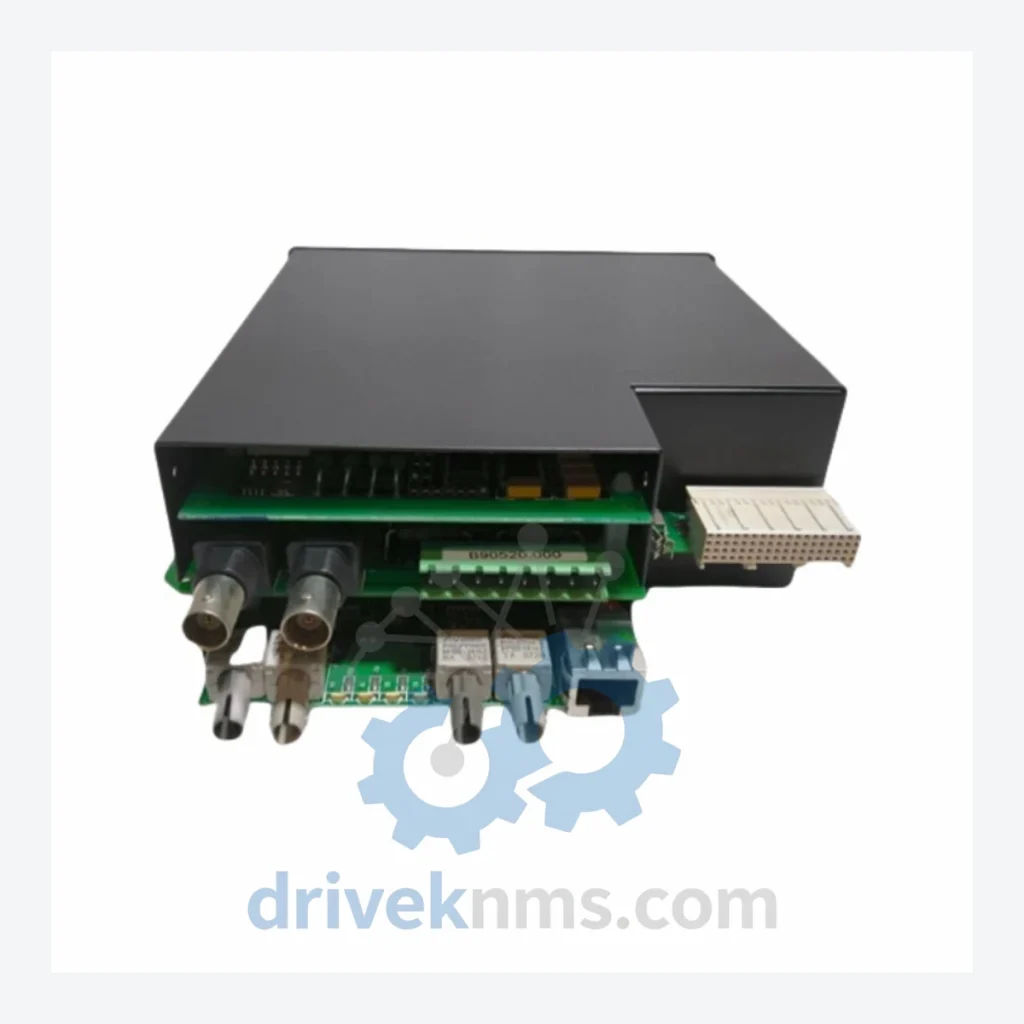

GE UR5EH CPU Board – Obsolete UR Series Spare Part

When a CPU board fails inside a GE Multilin UR Series protection relay, the consequences extend far beyond a single device. The UR platform is deeply embedded in substation automation, generator protection, and feeder management systems across power utilities, oil & gas facilities, and heavy industrial plants worldwide. A single unplanned outage caused by this module's failure can trigger cascading shutdowns, regulatory non-compliance windows, and emergency engineering mobilizations — costs that routinely reach six to seven figures before a replacement system is even specified. The GE UR5EH CPU Board is no longer in active production. DriveKNMS holds verified physical stock of this module, sourced through controlled industrial channels, for customers who cannot afford to wait for a system retrofit that may take 12–36 months to engineer and commission.

Technical Specifications

Note: Electrical parameters specific to individual firmware revisions are not published here to avoid misapplication. Confirm compatibility with your relay's firmware version before ordering.

Solving the Discontinued Hardware Crisis

The GE Multilin UR Series has been the backbone of protection relay infrastructure in power generation and transmission for over two decades. Utilities and industrial operators built entire substation architectures around its communication protocols, I/O mapping, and protection logic. When GE Grid Solutions discontinued active production of legacy CPU modules such as the UR5EH, it did not simultaneously provide a cost-neutral migration path. The reality facing plant engineers today is stark: a like-for-like CPU board replacement costs a fraction of a percent of what a full relay panel replacement demands in engineering hours, commissioning time, protection scheme re-validation, and regulatory re-approval.

Facilities running aging UR Series relays face a defined decision point. Those who secure critical spare boards now — before a failure event — retain operational continuity on their own schedule. Those who do not face emergency procurement at distressed pricing, or worse, an unplanned system retirement forced by a single component's unavailability. The UR5EH CPU board is not a commodity item. It is the processing core of a protection relay that may be guarding a generator, a transformer, or a transmission feeder carrying tens of megawatts. Its absence from a spare parts inventory is an unquantified liability sitting inside every maintenance budget that has not addressed it.

Extending Asset Life 5–10 Years: A Maintenance Strategy for UR Series Operators

For plant management facing pressure to retire aging UR Series installations, the financial case for targeted spare parts investment is straightforward. A full substation protection upgrade — new relays, new panels, new SCADA integration, new protection coordination studies — carries capital costs that are difficult to justify when the existing system is performing within specification. The following strategy has been applied successfully by industrial operators to extend UR Series service life by five to ten years without compromising protection integrity:

1. Identify single-point-of-failure modules. The CPU board is the highest-risk component in any UR relay. A failure here takes the entire relay offline. Holding one spare UR5EH per relay type in your fleet eliminates this risk entirely.

2. Audit firmware versions across your relay fleet. Mismatched firmware between a replacement CPU board and the existing relay configuration is the most common cause of commissioning delays after a board swap. Document your current firmware revisions now, before an emergency forces the issue.

3. Establish a controlled storage protocol. CPU boards stored in anti-static packaging, in climate-controlled environments, with annual inspection cycles, retain full functionality for ten or more years. Uncontrolled storage is the primary cause of spare part degradation.

4. Negotiate long-term supply agreements for critical modules. As obsolete inventory globally diminishes, pricing and availability will tighten. Securing multi-unit quantities now, at current market rates, is a defensible capital allocation decision for any facility with more than three UR Series relays in service.

5. Integrate spare board testing into your maintenance schedule. A spare board that has never been powered-on and verified is an assumption, not an asset. Periodic bench testing confirms functionality and identifies any storage-related degradation before a failure event.

Condition & Reliability Assurance

DriveKNMS applies a five-step quality process to every obsolete CPU board before it is offered for sale. This process is designed specifically for the failure modes common to long-stored or previously-installed industrial electronics:

Step 1 – Visual and mechanical inspection. Full examination of the PCB surface, connector pins, and housing for physical damage, corrosion, or evidence of prior repair attempts.

Step 2 – Electrolytic capacitor assessment. Aged electrolytic capacitors are the leading cause of latent failure in stored industrial boards. Each board is assessed for capacitor condition, with replacement performed where degradation is identified.

Step 3 – Pin and connector integrity check. All edge connectors and backplane pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are treated or the board is rejected from saleable inventory.

Step 4 – Firmware version verification. Where possible, firmware revision is confirmed and documented. Customers are provided with this information to verify compatibility with their existing relay configuration prior to installation.

Step 5 – Functional power-on test. Boards are powered and tested for basic operational response before packaging. Boards that do not pass are removed from inventory and not offered for sale.

Key Features for System Maintenance

The UR5EH is a direct drop-in replacement for the CPU board position in compatible UR Series relays. Installation does not require relay reprogramming in most configurations — the protection settings and logic reside in non-volatile memory within the relay chassis, not on the CPU board itself. This means a qualified protection engineer can complete a board swap and return the relay to service without a full protection scheme re-commissioning, avoiding the engineering costs and outage time that a relay replacement would demand. There is no requirement to re-engineer panel wiring, re-map I/O, or re-validate communication protocols. The existing relay continues to operate with its established protection logic intact.

FAQ

What warranty applies to an obsolete CPU board?
DriveKNMS provides a 90-day warranty on all tested and refurbished obsolete parts, covering functional failure under normal operating conditions. New surplus units carry a 180-day warranty. Warranty terms are confirmed in writing at the time of order.

How do I confirm the board is new or quality-refurbished?
Each unit shipped by DriveKNMS is accompanied by an inspection report documenting the condition assessment steps completed, the firmware version identified (where applicable), and the test results. We do not ship boards without completed documentation.

Should I purchase more than one unit?
For facilities operating multiple UR Series relays of the same type, holding a minimum of one spare CPU board per relay type is the standard recommendation. For critical protection applications — generator protection, transformer differential, bus protection — holding two spares per relay type is a defensible position given the consequences of an unplanned outage and the diminishing global availability of this module.

Can you source other UR Series modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation and protection relay components. Contact us with your full part number and we will confirm availability.
