GE UR6CH Universal Relay – Obsolete UR Series Spare Part

Technical Dossier

Product Details And Specifications

GE UR6CH Universal Relay – Obsolete UR Series Spare Part

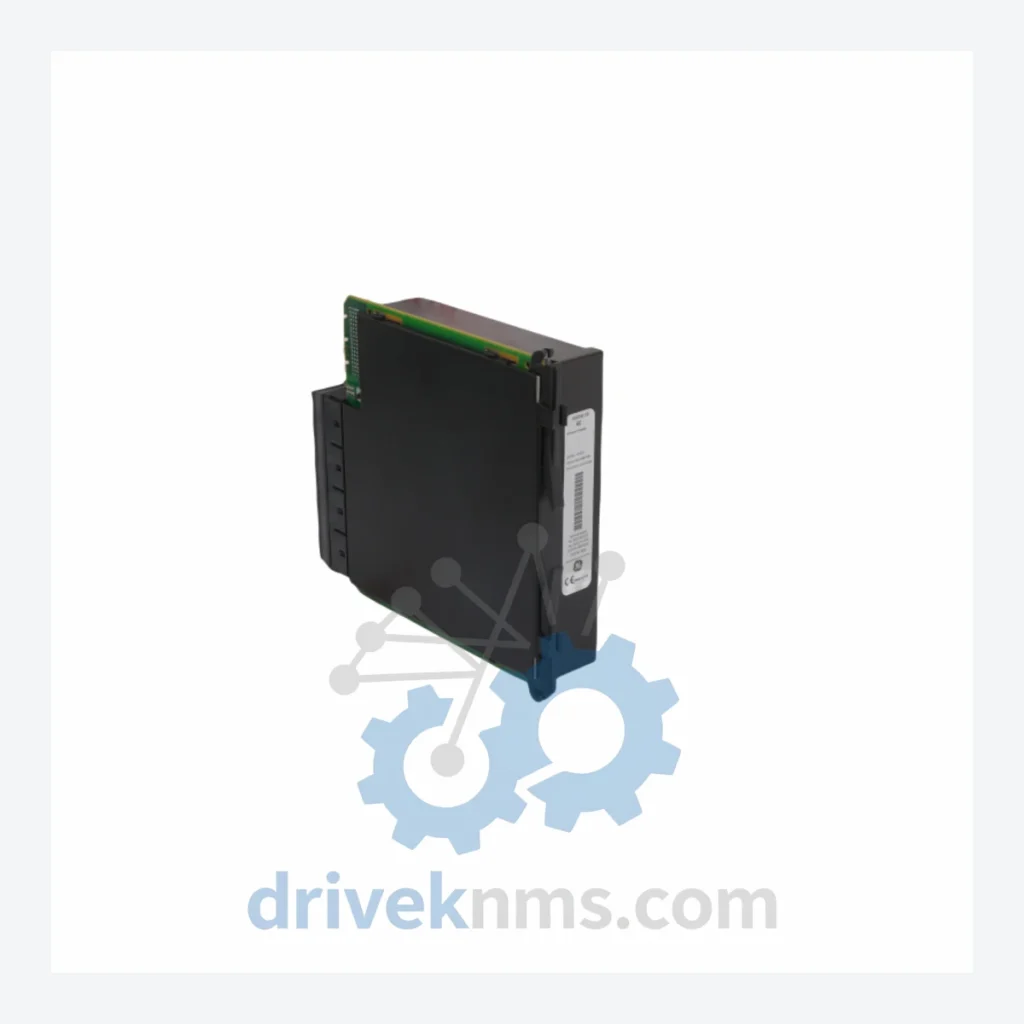

The GE UR6CH is a communications module card within GE Grid Solutions' Universal Relay (UR) platform — a protection and control relay series widely deployed in utility substations, industrial power distribution systems, and critical infrastructure built between the late 1990s and 2010s. GE has progressively discontinued individual UR platform modules as the product line transitions toward newer architectures. Sourcing a replacement UR6CH today through standard distribution channels is no longer viable.

The operational reality is this: a single failed UR6CH communications card can render an entire UR-series relay non-functional, triggering a protection gap in your substation. The cost of replacing a fully integrated UR relay bay — including engineering, re-commissioning, protection setting re-coordination, and downtime — routinely exceeds USD $80,000–$250,000 per bay. For facilities with multiple UR relay installations, a forced platform migration can represent a capital expenditure in the millions. A verified spare UR6CH card, by contrast, restores full protection functionality within hours.

DriveKNMS maintains verified stock of the GE UR6CH for clients who cannot afford unplanned protection system outages.

Technical Specifications

Note: Electrical parameters specific to firmware revision and chassis configuration. Confirmed parameters are provided upon request with unit serial number verification. No parameters are fabricated.

Solving the Discontinued Hardware Crisis

The GE UR platform was engineered for long-service-life deployment in protection-critical environments. Substations and industrial facilities that commissioned UR-series relays in the 2000s built their protection philosophy around this hardware. The UR6CH communications card is integral to the relay's SCADA integration, IEC 61850 GOOSE messaging, and inter-relay communications — functions that cannot simply be bypassed or emulated by a software patch.

When GE discontinued module-level support, it created a structural maintenance problem for asset owners: the relay chassis, CTs, VTs, and protection settings remain fully valid, but a single unavailable card forces a disproportionate system-level response. Facilities that have proactively secured UR6CH spares report extending their UR platform service life by 7–12 years beyond the manufacturer's end-of-support date — deferring capital expenditure on protection system upgrades until it aligns with planned asset retirement cycles rather than emergency failure events.

For plant managers and substation engineers operating under capital budget constraints, the calculus is straightforward: one verified spare card at a fraction of the cost of a bay replacement preserves the integrity of a protection system that has performed reliably for decades. The UR6CH is not a workaround — it is the correct engineering response to a supply chain discontinuation.

Condition & Reliability Assurance

Every UR6CH unit processed by DriveKNMS undergoes a structured 5-step quality assurance protocol before dispatch:

• Step 1 – Electrolytic Capacitor Inspection: Aging electrolytic capacitors are the primary failure mode in legacy relay cards. Each board is inspected under magnification for bulging, leakage, or ESR deviation. Suspect capacitors are replaced with specification-matched components.
• Step 2 – Firmware Version Verification: The installed firmware revision is documented and cross-referenced against known compatibility matrices for the target UR chassis. Firmware downgrade or upgrade is performed where required and technically feasible.
• Step 3 – Pin and Connector Corrosion Audit: All edge connectors, backplane pins, and communication port contacts are inspected for oxidation and corrosion. Affected contacts are cleaned using appropriate non-residue solvents; severely corroded units are rejected.
• Step 4 – Functional Bench Test: The card is powered in a compatible UR chassis and communication port functionality is verified. Units that fail functional testing are not dispatched.
• Step 5 – Packaging and ESD Protection: Verified units are packaged in anti-static shielding bags with desiccant, labeled with QA pass status and inspection date, and shipped in rigid protective packaging.

Key Features for System Maintenance

• Drop-in replacement: The UR6CH installs directly into the existing UR chassis card slot. No chassis modification is required.
• No reprogramming required: Protection settings, logic equations, and SCADA configurations reside in the relay chassis processor — not in the communications card. Card replacement does not require protection setting re-entry or re-commissioning of the protection scheme.
• Avoids engineering reconstruction costs: Replacing a single card eliminates the need for new relay procurement, CT/VT rewiring, protection coordination studies, and regulatory re-approval that a full bay replacement would trigger.
• Maintains existing cybersecurity posture: Retaining the original UR platform avoids the cybersecurity re-assessment and network reconfiguration that accompanies new relay platform integration.
• Supports long-term spares strategy: Facilities managing multiple UR relay bays are advised to secure a minimum of two UR6CH units as strategic cold spares. The window for sourcing verified units from the secondary market narrows each year.

FAQ

Q: What warranty applies to a discontinued UR6CH unit?
A: DriveKNMS provides a 90-day functional warranty on all dispatched units. Units that exhibit failure under normal operating conditions within this period are replaced or refunded. Warranty does not cover damage resulting from incorrect installation or chassis incompatibility.

Q: How do I confirm the unit is new surplus versus refurbished?
A: Condition is declared explicitly at the time of quotation — new surplus units retain original GE labeling and show no signs of prior installation. Refurbished units are accompanied by a DriveKNMS QA inspection report detailing the work performed. Both conditions are dispatched only after passing the 5-step protocol described above.

Q: Should we purchase multiple units as long-term spares?
A: For facilities with three or more UR relay bays using the UR6CH, holding two cold spares is the minimum prudent position. Secondary market availability of verified UR6CH units is declining. Procurement decisions deferred by 12–18 months frequently result in significantly higher unit costs or inability to source at all.

Q: Can you verify compatibility with our specific UR chassis model before we order?
A: Yes. Provide your chassis model number and current firmware revision and we will confirm compatibility before invoicing.
