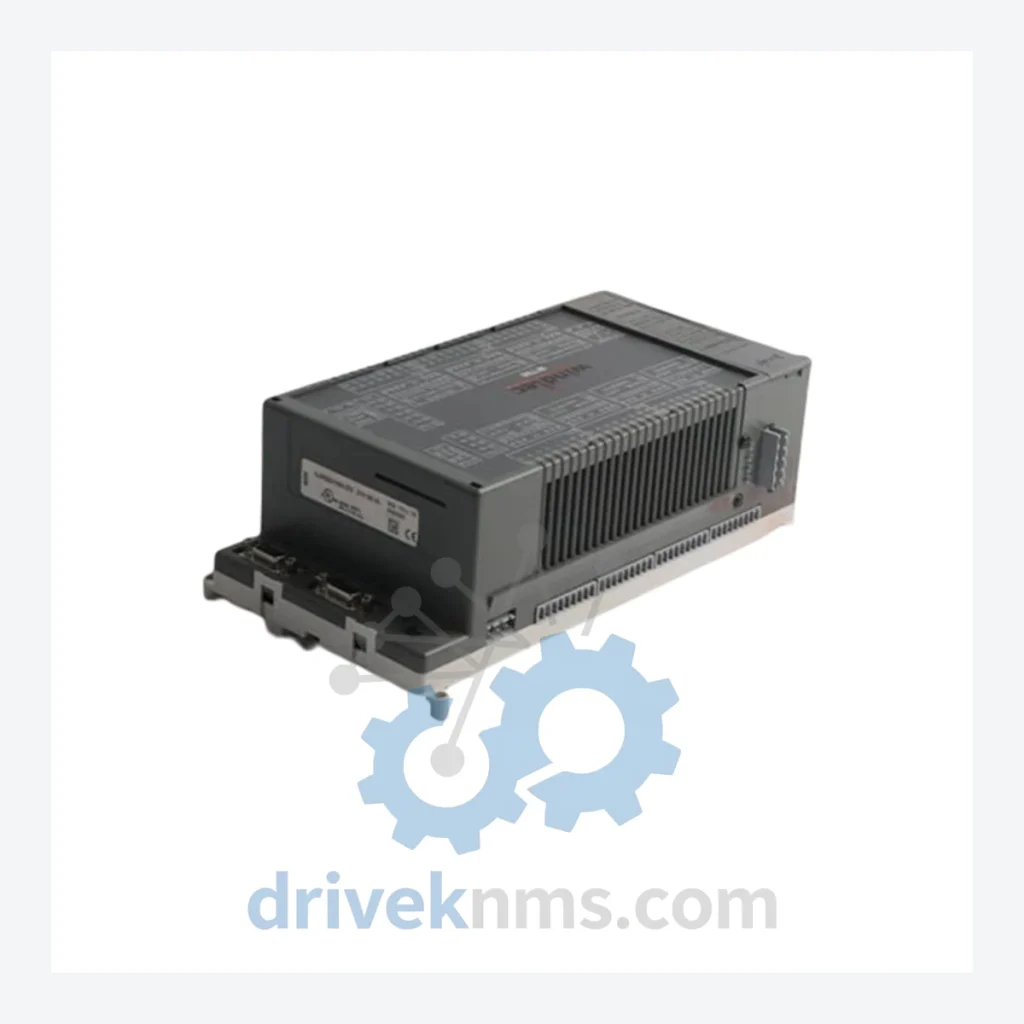

GE Vectrive Modules

Technical Dossier

Product Details And Specifications

GE Vectrive Series: Comprehensive Module Range and Technical Overview

The GE Vectrive series of AC servo vector drives has established a significant installed base across global heavy industry sectors, including petrochemical refineries, nuclear power auxiliary systems, offshore platforms, and continuous-process chemical plants. Designed to deliver closed-loop vector control of AC induction and permanent-magnet servo motors, the Vectrive platform was engineered to meet the precision torque and speed regulation demands of mission-critical drive applications where downtime carries substantial operational cost. Units in this series are found in legacy control architectures integrated with GE Fanuc Series 90 PLCs, Mark V/VI turbine control systems, and third-party DCS environments. The combination of robust hardware design and field-proven reliability has resulted in long equipment service lives, making spare parts availability a primary concern for maintenance engineers managing aging plant infrastructure.

The Evolution of Vectrive Architecture

The Vectrive product line was introduced by GE Industrial Systems as a high-performance alternative to scalar V/Hz drives for applications requiring dynamic torque response. Early-generation units employed analog flux vector control circuits with discrete gate-drive hardware, targeting servo-class positioning and tension control applications. Mid-generation revisions introduced digital signal processor (DSP)-based control boards, improving parameter resolution and enabling fieldbus communication options including Modbus RTU and GE's proprietary serial interfaces. Later variants incorporated IGBT power modules replacing earlier bipolar transistor stages, reducing switching losses and improving thermal efficiency at higher carrier frequencies.

Compatibility across generations is constrained by control board pinout changes and firmware architecture differences. Drives from the early analog generation are not directly interchangeable with DSP-based successors at the control interface level, though power section components (rectifier bridges, DC bus capacitors, IGBT modules) often share dimensional and electrical equivalents. As of 2026, the Vectrive series is classified as mature/end-of-life by GE, with no active production. Replacement pathways include the GE PowerFlex-equivalent platforms and third-party servo drive substitutes, but direct form-fit-function replacement for installed Vectrive units remains the preferred approach for plants seeking to avoid full drive system re-engineering.

Vectrive Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed models within the GE Vectrive AC servo vector drive series, organized by functional category. Each entry reflects the primary operational role of the unit within a drive system architecture.

Vector Drive Main Units (Complete Drive Assemblies)

• VCIB-16A: 16A continuous output AC servo vector drive, IGBT inverter bridge, closed-loop flux vector control
• VCIB-30A: 30A continuous output vector drive, enhanced thermal management, suitable for high-cycle servo applications
• VCIB-45A: 45A output rating, three-phase input, designed for mid-range servo motor frame sizes
• VCIB-60A: 60A continuous, extended DC bus capacitance for regenerative load handling
• VCIB-75A: 75A output, heavy-duty industrial frame, reinforced terminal block assembly
• VCIB-100A: 100A continuous output, dual cooling fan configuration, high-inertia load applications

Control Interface & Communication Boards

• VCIB-CTL-01: Main DSP control board, analog/digital I/O interface, encoder feedback input, RS-232/RS-485 serial port
• VCIB-CTL-02: Revised control board with expanded parameter memory and improved EMC filtering on signal inputs
• VCIB-MB-01: Modbus RTU communication adapter board, DIN-rail mountable, 9600–115200 baud configurable
• VCIB-PB-01: PROFIBUS-DP communication interface card, GSD file supported, cyclic data exchange up to 12 Mbps
• VCIB-DN-01: DeviceNet adapter module, explicit and implicit messaging, 125/250/500 kbps data rates

Power & Rectifier Section Components

• VCIB-PSU-24V: Internal 24 VDC SMPS control power supply board, isolated output, short-circuit protected
• VCIB-REC-3PH: Three-phase full-wave rectifier bridge assembly, press-fit diode module, DC bus pre-charge circuit integrated
• VCIB-CAP-KIT: DC bus electrolytic capacitor replacement kit, matched capacitance and ESR specification for Vectrive chassis
• VCIB-IGBT-MOD: IGBT power module (inverter bridge), direct OEM-equivalent replacement, rated for Vectrive thermal interface specification

Feedback & Encoder Interface

• VCIB-ENC-TTL: TTL incremental encoder interface card, differential line receiver, A/B/Z channel, up to 1024 PPR
• VCIB-ENC-SIN: Sine/cosine encoder interface board, high-resolution interpolation, compatible with Heidenhain and Stegmann encoder types
• VCIB-RES-01: Resolver-to-digital interface card, 12-bit resolution, compatible with 2-pole and multi-pole resolver types

Sourcing Hard-to-Find & Obsolete Vectrive Parts

DriveKNMS maintains a dedicated inventory program for GE Vectrive series components, addressing the sourcing challenges that arise when OEM support is discontinued. For end-of-life drive platforms, the primary failure modes are concentrated in electrolytic capacitor degradation, IGBT module fatigue, and control board EEPROM/firmware corruption — all of which require access to original or functionally equivalent replacement parts that are no longer available through standard distribution channels.

DriveKNMS sources Vectrive units and sub-assemblies through a combination of decommissioned plant equipment recovery, authorized surplus channels, and cross-referenced equivalent component procurement. All units are catalogued by revision level and firmware version where applicable, ensuring compatibility with the customer's existing drive configuration. For customers requiring long-term maintenance contracts covering multiple Vectrive units across a facility, DriveKNMS offers reserved inventory agreements to guarantee parts availability over a defined service horizon.

Quality Control for the Vectrive Range

The GE Vectrive series presents specific quality verification challenges due to its mixed analog/digital control architecture and the sensitivity of its IGBT gate-drive circuits to latent damage from prior overcurrent or overvoltage events. DriveKNMS applies a structured test protocol to all Vectrive units prior to shipment.

Power section verification includes DC bus capacitance measurement, ESR testing, and insulation resistance testing of the IGBT module at rated blocking voltage. Gate-drive signal integrity is verified under no-load switching conditions using an oscilloscope to confirm dead-time insertion and symmetrical gate pulse waveforms. Control board functional testing covers all analog input/output channels, encoder feedback signal processing, and serial communication port operation. Units with communication adapter boards are tested for correct fieldbus enumeration and cyclic data exchange. Final verification includes a loaded run test at rated output current with thermal imaging to confirm uniform heat distribution across the heatsink and power module assembly. All test records are retained and available upon request.
