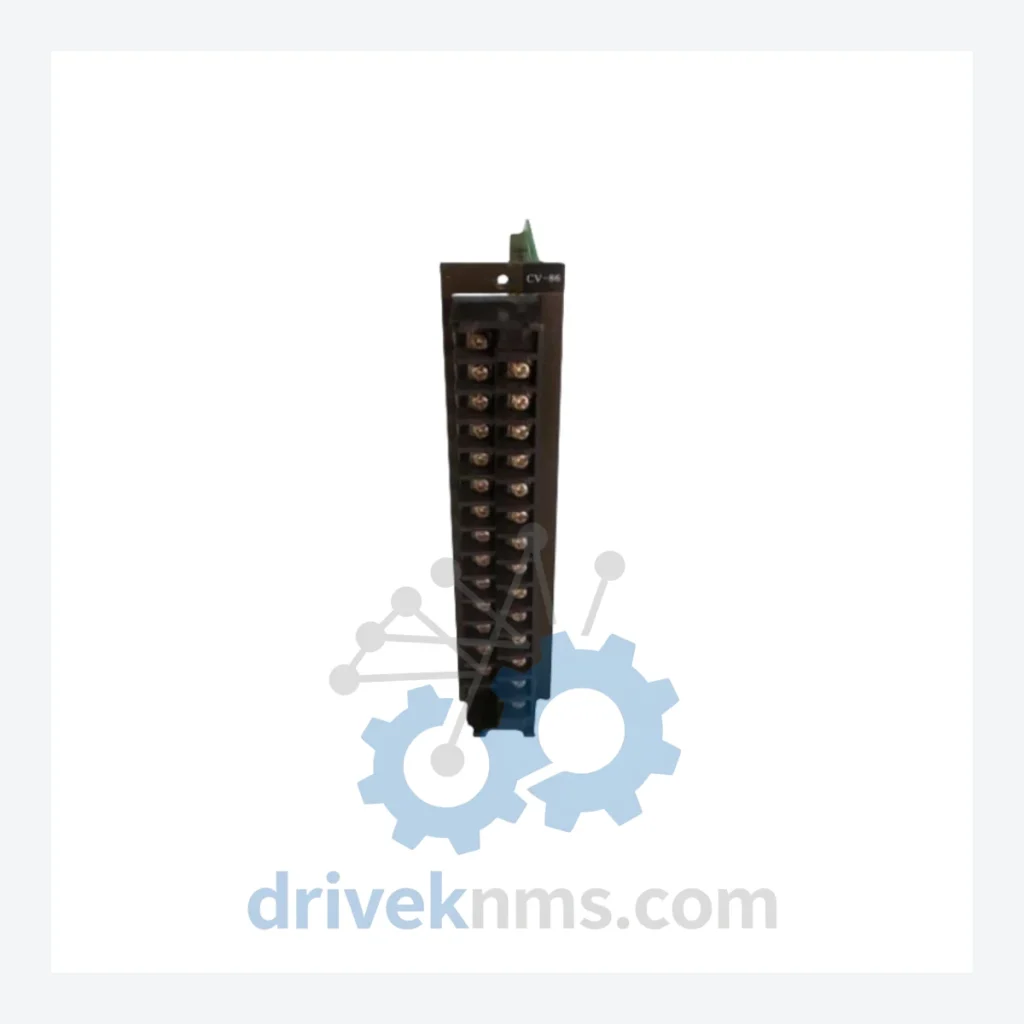

GE VM-5Y1-02 Relay Module – Obsolete Series 90 Spare Part

Technical Dossier

Product Details And Specifications

GE VM-5Y1-02 Relay Module – Obsolete Series 90 Spare Part

When a relay module fails on a production line built around GE's Series 90 PLC architecture, the clock starts immediately. Sourcing a replacement through standard channels is no longer an option — GE discontinued the VM-5Y1-02 years ago, and authorized distributors have long since cleared their shelves. The alternative most plant managers face is a forced migration: new PLC hardware, new I/O racks, new engineering hours, new commissioning, and a production shutdown measured in weeks, not days. Conservative estimates for a full control system retrofit on a mid-size line run from $300,000 to well over $1,000,000 USD, depending on integration complexity. DriveKNMS maintains verified physical stock of the VM-5Y1-02. This is not a catalog listing — the unit exists in our warehouse and can ship.

Technical Specifications

Note: Electrical parameters such as output voltage range, contact rating, and coil specifications are confirmed during pre-shipment testing. Specific values are provided upon request with test report documentation. No parameters are published here without verified source data.

Solving the Discontinued Hardware Crisis

GE's Series 90 PLC family was the backbone of industrial automation across North American and European manufacturing from the late 1980s through the 2000s. Automotive assembly, food processing, water treatment, and chemical plants built their control infrastructure around this platform. The VM-5Y1-02 relay module served as a critical output interface — translating PLC logic into physical switching actions for motors, solenoids, and safety interlocks.

With the Series 90 platform now fully discontinued, every VM-5Y1-02 failure carries the same risk: the failure of a single $500 module can trigger a retrofit decision costing 500 to 2,000 times that amount. Plant managers who have maintained a strategic spare parts inventory consistently report the ability to extend their existing automation assets by 5 to 10 years beyond the OEM's end-of-life date — without retraining operators, without rewriting ladder logic, and without the production disruption that a platform migration demands.

The financial case is straightforward. A refurbished or new-surplus VM-5Y1-02 purchased today costs a fraction of one engineering day on a retrofit project. For facilities running 24/7 operations, the cost of a single unplanned shutdown — lost production, emergency labor, expedited freight — typically exceeds the annual budget for a comprehensive legacy spare parts program. Procurement teams that treat obsolete spare parts as an asset protection strategy, rather than a maintenance cost, consistently outperform those that defer the decision until a failure forces their hand.

Condition & Reliability Assurance

Every VM-5Y1-02 unit that leaves DriveKNMS passes through a structured 5-step quality process before shipment:

• Step 1 – Visual and Physical Inspection: Full examination of the housing, connector pins, and PCB surface for corrosion, mechanical damage, or signs of prior field failure.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy relay modules stored for extended periods. Each unit is evaluated for capacitor condition; units showing ESR deviation or physical swelling are rejected or recapped before release.
• Step 3 – Firmware and Configuration Verification: Where applicable, firmware version is confirmed against known-good references for the Series 90 platform to prevent compatibility conflicts on installation.
• Step 4 – Pin and Contact Integrity Check: All I/O connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are cleaned to IPC standards; pins with structural compromise are flagged for replacement.
• Step 5 – Functional Output Test: Relay switching function is verified under load conditions. Test results are documented and available upon request.

Key Features for System Maintenance

• Drop-in replacement: The VM-5Y1-02 installs directly into existing Series 90 I/O racks with no hardware modification required.
• No reprogramming required: The PLC program, I/O mapping, and HMI configuration remain unchanged. Swap the module, restore power, verify outputs — the line runs.
• Avoids engineering reconstruction costs: A platform migration requires control system engineers, safety re-certification, and operator retraining. A spare module requires none of these.
• Extends asset service life by 5–10 years: Facilities that maintain a buffer stock of critical obsolete modules routinely defer capital replacement projects by a full investment cycle.
• Reduces unplanned downtime exposure: Having a verified spare on the shelf converts a potential multi-week shutdown into a same-shift recovery.

FAQ

What warranty applies to an obsolete part like the VM-5Y1-02?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Extended warranty terms are available for volume orders — contact us to discuss.

How do I know the unit is genuine and not counterfeit?
All units are sourced through verified industrial surplus channels. Physical markings, date codes, and board construction are cross-referenced against known-authentic samples. Our QA process includes functional testing, and a test report is available upon request.

Should I buy more than one unit?
For any Series 90 installation that is still in active production, holding a minimum of two VM-5Y1-02 units is a defensible risk management position. Global stock of this module is finite and continues to decrease. Units purchased today will not be available at the same price — or at all — in 12 to 24 months.

Can you source other Series 90 modules?
Yes. DriveKNMS specializes in GE Series 90-30 and 90-70 legacy components. Contact us with your full BOM for a consolidated quote.
