Hirschmann MS20-1600SAAE Industrial Switch Backplane – Obsolete MICE Series Spare Part

Technical Dossier

Product Details And Specifications

Hirschmann MS20-1600SAAE Industrial Switch Backplane – Obsolete MICE Series Spare Part

When a backplane module fails in a Hirschmann MICE Series managed switch, the consequences extend far beyond a single device going offline. In process-critical environments — oil & gas terminals, automotive assembly lines, water treatment SCADA networks, and port logistics systems — the MICE switch infrastructure is often the backbone of real-time Ethernet communication between PLCs, HMIs, and field devices. A single failed backplane can halt an entire production segment. Replacing the MICE platform outright means not just hardware costs, but engineering redesign, re-cabling, re-commissioning, and revalidation — a process that routinely runs into the hundreds of thousands of dollars and months of downtime.

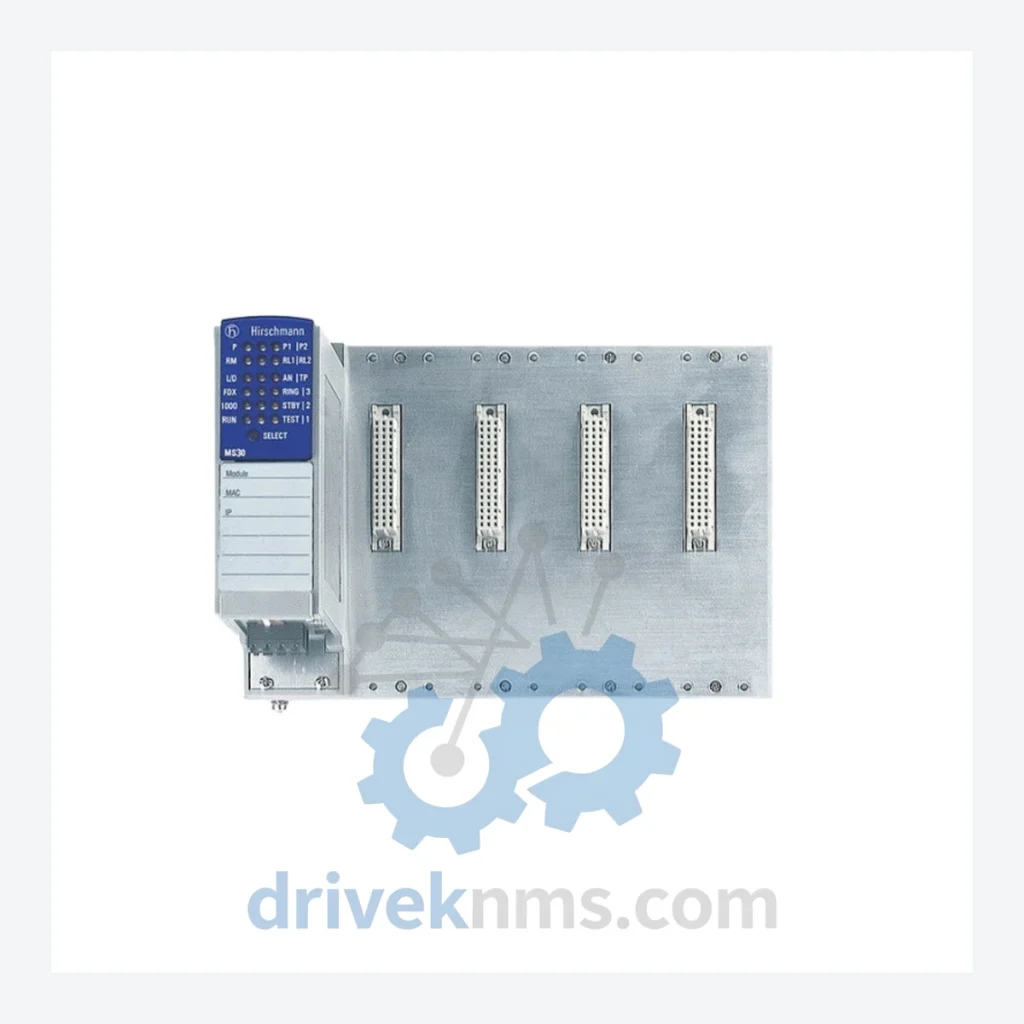

The Hirschmann MS20-1600SAAE is a discontinued backplane module for the MICE (Modular Industrial Communication Equipment) managed switch series. DriveKNMS maintains verified physical stock of this component, sourced through controlled industrial asset recovery channels. For plant managers and maintenance engineers facing system retirement pressure, securing a replacement MS20-1600SAAE is the lowest-cost, lowest-risk path to keeping existing infrastructure operational for another 5–10 years.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on platform-level documentation. No parameters are fabricated. Contact us for datasheet confirmation prior to installation.

Solving the Discontinued Hardware Crisis

The Hirschmann MICE platform was widely deployed throughout the 2000s and 2010s in industrial Ethernet ring architectures — particularly in facilities running Siemens SIMATIC, Rockwell ControlLogix, or Schneider Modicon-based control systems. Its HIPER-Ring and MRP redundancy protocols made it a preferred choice for high-availability network segments in manufacturing and utilities.

Hirschmann has since transitioned its product line toward the OCTOPUS and DRAGON Wave series, leaving MICE installations without a direct upgrade path that preserves existing wiring, configuration, and ring topology. A forced migration requires new managed switches, fiber patch panels, updated firmware on all connected PLCs, and in many cases, a full network re-survey. For a mid-size plant, this is a capital project — not a maintenance task.

The MS20-1600SAAE backplane is the structural core of the MICE modular chassis. Without it, the entire switch assembly is non-functional. There is no cross-brand substitute that installs without engineering intervention. This is precisely why sourcing a genuine replacement unit — even from secondary market channels — is the operationally sound decision for any facility that cannot absorb a forced platform migration within the current budget cycle.

Facilities that have adopted a strategic spare parts inventory approach for their MICE infrastructure report extended operational continuity of 7–12 years beyond the official EOL date, at a fraction of the cost of platform replacement. The math is straightforward: one MS20-1600SAAE spare, properly stored, can defer a six-figure capital expenditure indefinitely.

Condition & Reliability Assurance

All discontinued components supplied by DriveKNMS pass a structured 5-step quality verification process before dispatch:

• Step 1 – Visual & Mechanical Inspection: Full examination of the backplane PCB, connector pins, and chassis mounting points. Any unit showing physical damage, bent pins, or corrosion on edge connectors is rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in legacy industrial electronics. Each unit is inspected for capacitor bulging, leakage, or ESR deviation. Units with suspect capacitors are flagged and not shipped as-is.
• Step 3 – Firmware & Label Verification: Where accessible, firmware revision labels and hardware revision markings are cross-referenced against known MICE platform documentation to confirm the unit is the correct hardware revision for the MS20 chassis.
• Step 4 – Pin & Contact Corrosion Check: Backplane connector contacts are inspected under magnification for oxidation. Affected contacts are treated or the unit is downgraded.
• Step 5 – Functional Bench Test (where applicable): Units are powered in a controlled bench environment where test infrastructure permits, and basic communication functionality is verified before packaging.

Condition grade and test results are documented and provided with each shipment on request.

Key Features for System Maintenance

• Drop-in Replacement: The MS20-1600SAAE installs directly into the existing MICE MS20 chassis without modification to the enclosure, wiring, or adjacent modules.
• No Reprogramming Required: Switch configuration is stored in the management module, not the backplane. Replacing the backplane does not require reconfiguration of VLANs, ring protocols, or port settings.
• No Engineering Redesign: Unlike a platform migration, a backplane swap is a maintenance-level task. It does not trigger a change management process or require revalidation of the network topology.
• Preserves Existing Fiber and Copper Infrastructure: All existing SFP modules, copper ports, and fiber runs remain in service. There is no cabling cost associated with this replacement.
• Defers Capital Expenditure: A single spare backplane can extend the operational life of an entire MICE switch node by 5–10 years, deferring a platform migration to a planned capital cycle rather than an emergency response.

FAQ

Q: What warranty applies to a discontinued part like the MS20-1600SAAE?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the EOL status of this component, we recommend customers treat this as a working spare and maintain a secondary unit in storage where the application is critical.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced from decommissioned industrial assets or authorized surplus channels. Hardware revision markings and Hirschmann part labels are verified during intake inspection. We do not source from unverified grey-market brokers.

Q: Should I buy more than one unit?
A: For any facility running more than two MICE MS20 nodes, holding at least one spare MS20-1600SAAE backplane is a defensible maintenance strategy. The component is no longer manufactured, and secondary market availability will continue to decline. Procurement cost today is substantially lower than emergency sourcing cost in 18–36 months.

Q: Can this be used with the MS30 chassis?
A: The MICE platform shares a common backplane architecture across the MS20 and MS30 families in certain configurations, but compatibility must be confirmed against your specific chassis hardware revision before ordering. Contact us with your chassis label details for confirmation.
