Hollysys FM910 DCS Module: HOLLiAS MACS FM9 Series

Technical Dossier

Product Details And Specifications

Hollysys FM9 Series: Comprehensive Module Range and Technical Overview

The Hollysys HOLLiAS MACS (Modular Automation Control System) FM9 series represents one of the most widely deployed distributed control system (DCS) platforms in Chinese heavy industry. Installed across petrochemical refineries, coal chemical complexes, nuclear power auxiliary systems, and large-scale thermal power plants, the FM9 series forms the backbone of process automation for facilities operating under continuous, safety-critical conditions. Its modular backplane architecture supports hot-swap capability, redundant power supply configurations, and deterministic fieldbus communication — requirements that are non-negotiable in refinery and chemical plant environments where unplanned downtime carries direct financial and safety consequences.

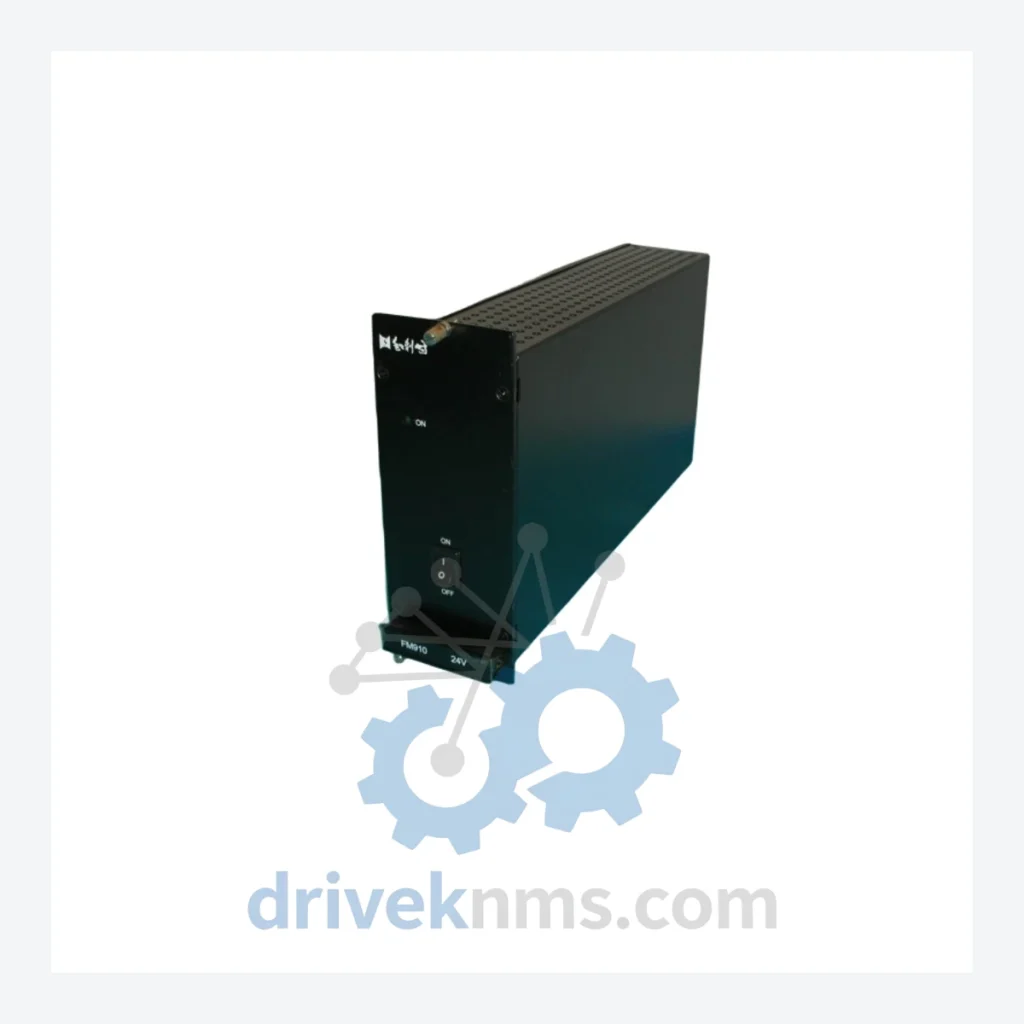

The FM910, as the primary analog input module of this series, is a representative component of the FM9 I/O subsystem. It interfaces directly with field transmitters and provides signal conditioning, isolation, and A/D conversion for process variables including temperature, pressure, flow, and level.

The Evolution of FM9 Series Architecture

The HOLLiAS MACS platform was introduced by Hollysys in the early 2000s as a domestically developed alternative to Western DCS platforms such as Honeywell TDC 3000, Yokogawa CENTUM, and ABB Advant. The FM9 series I/O modules were designed to operate within the MACS V6.x and V7.x controller environments, communicating over a proprietary high-speed backplane bus with the FM801 and FM803 main controller modules.

Early FM9 variants (circa 2003–2008) used parallel backplane addressing with fixed slot assignments. From approximately 2009 onward, revised hardware revisions introduced enhanced EMC shielding, extended operating temperature tolerance (−10°C to +55°C), and improved MTBF ratings. The FM9 series reached its peak deployment phase between 2010 and 2018. As of 2020, Hollysys has progressively transitioned new projects to the HOLLiAS MACS-S and K-MACS platforms; however, the installed base of FM9 hardware remains extensive, and spare part demand continues across the maintenance lifecycle of existing plants — typically 20–30 years from initial commissioning.

Compatibility note: FM9 series modules are not cross-compatible with the newer SM series or HS series I/O platforms. Replacement requires exact model matching or a validated engineering change order (ECO).

FM9 Series Full Catalog & Functionalities (SKU List)

Analog Input Modules

• FM910: 8-channel analog input module, 4–20 mA / 1–5 V, 12-bit resolution, HART-passive
• FM911: 8-channel analog input module with HART communication, active signal support
• FM912: 16-channel analog input, high-density configuration, 4–20 mA
• FM913: Thermocouple input module, 8-channel, supports J/K/T/E/R/S/B types
• FM914: RTD input module, 8-channel, PT100/PT1000, 3-wire configuration

Analog Output Modules

• FM920: 4-channel analog output, 4–20 mA, 12-bit, loop-powered
• FM921: 8-channel analog output, 4–20 mA, with open-circuit detection
• FM922: 4-channel analog output with HART pass-through capability

Digital Input Modules

• FM930: 16-channel digital input, 24 VDC, sink/source configurable
• FM931: 32-channel digital input, high-density, 24 VDC
• FM932: 8-channel digital input, 110/220 VAC, optically isolated

Digital Output Modules

• FM940: 16-channel digital output, 24 VDC, 0.5 A per channel, short-circuit protected
• FM941: 8-channel relay output, SPDT, 2 A / 250 VAC
• FM942: 32-channel digital output, transistor type, 24 VDC

Controller & Communication Modules

• FM801: Main controller module, HOLLiAS MACS V6/V7, dual-redundant capable
• FM803: Redundant controller module, paired with FM801 for 1:1 hot-standby
• FM151: Profibus-DP communication adapter, master/slave configurable
• FM152: MODBUS RTU/TCP gateway module for third-party device integration

Power Supply Modules

• FM700: 24 VDC system power supply module, 10 A output, redundancy-ready
• FM701: Redundant power supply module, auto-switchover, <20 ms failover

Sourcing Hard-to-Find & Obsolete FM9 Series Parts

As the HOLLiAS MACS FM9 platform transitions into its end-of-active-production phase, procurement of replacement modules through standard distribution channels becomes increasingly unreliable. Hollysys authorized distributors typically maintain limited buffer stock, and lead times for factory-new units — when available — can extend to 16–26 weeks.

DriveKNMS maintains a dedicated inventory program for FM9 series lifecycle support, covering the following sourcing categories:

• New-in-box (NIB) surplus stock: Factory-sealed units sourced from decommissioned projects and verified against original Hollysys packaging and date codes.
• Tested used (TU) units: Pulled modules subjected to full functional testing on FM9-compatible backplane test rigs before dispatch.
• Exchange program: Customers with faulty modules can submit cores for credit against replacement units, reducing total cost of ownership for maintenance budgets.

Priority sourcing is available for FM910, FM920, FM930, FM940, FM801, and FM803 — the highest-demand modules in the FM9 installed base. Inquiries for less common variants (FM913, FM932, FM151) are accepted and fulfilled on a best-effort basis with typical response within 24 business hours.

Quality Control for the FM9 Series Range

FM9 series modules incorporate a proprietary backplane bus protocol that requires functional validation under live-bus conditions — bench power-on testing alone is insufficient to confirm module serviceability. DriveKNMS employs the following test protocol for all FM9 inventory:

• Backplane communication test: Each module is seated in an FM9-compatible chassis with an active FM801 controller. Bus enumeration, address assignment, and cyclic data exchange are verified over a minimum 30-minute soak period.
• Channel-level signal verification: For analog modules (FM910, FM920, FM913, FM914), each channel is stimulated with calibrated reference signals. Output accuracy is measured against the module's published specification (typically ±0.1% full scale).
• Digital I/O functional test: All digital input and output channels are exercised through a full ON/OFF cycle sequence. Relay output modules (FM941) are tested for contact resistance and coil actuation voltage.
• Isolation integrity check: Channel-to-channel and channel-to-bus isolation is verified using a 500 VDC hipot test to confirm dielectric integrity of optocoupler barriers.
• Firmware version audit: Module firmware revision is read via the MACS engineering station and documented. Customers are advised of any firmware delta relative to their installed system version.
