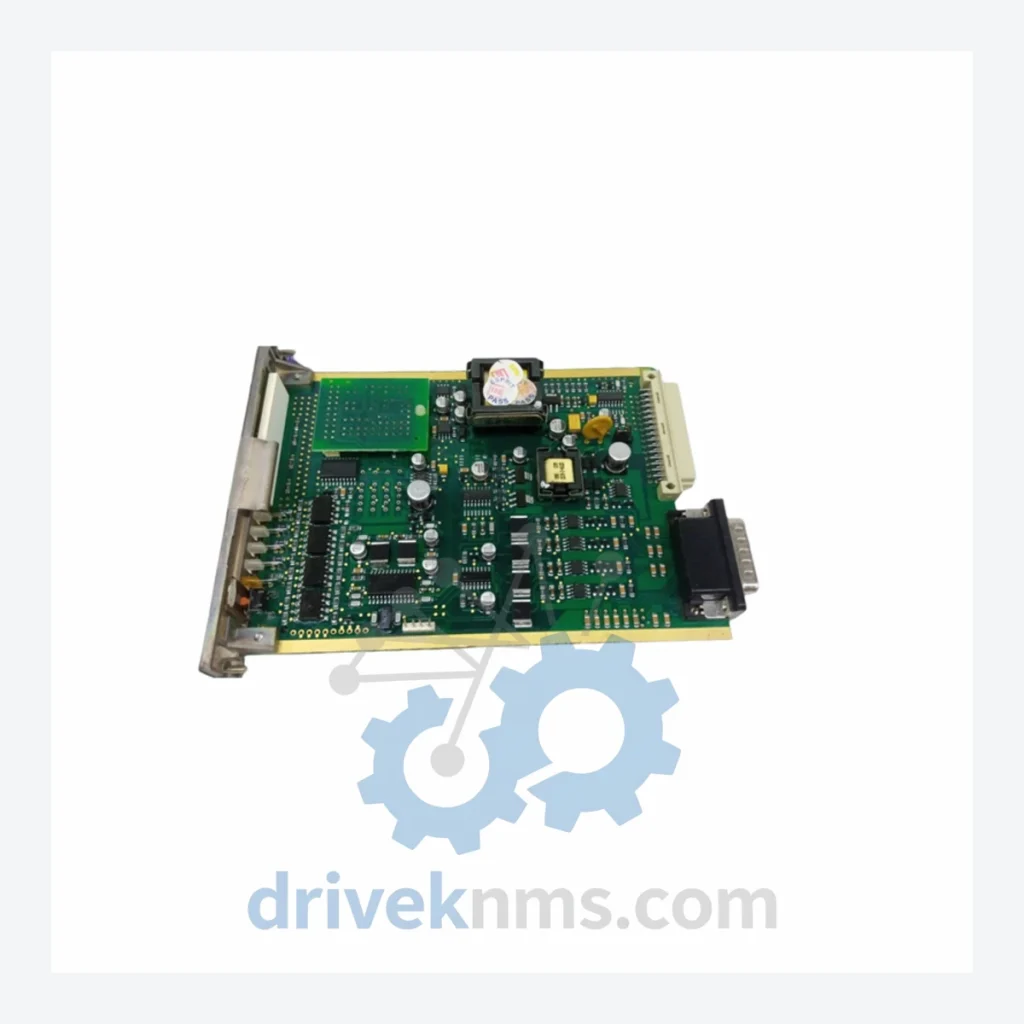

Honeywell 05704-A-0135 Channel Control Card – Obsolete TDC 3000 Spare Part

When a Channel Control Card fails inside a Honeywell TDC 3000 or TPS distributed control system, the consequences extend far beyond a single module. A forced migration to a modern DCS platform — including engineering redesign, I/O rewiring, operator retraining, and production downtime — routinely costs manufacturing facilities between $500,000 and $3,000,000 USD per line. The Honeywell 05704-A-0135 is a discontinued component with no direct modern equivalent. Facilities that cannot source a verified replacement unit face that capital expenditure with little warning.

DriveKNMS maintains sourced inventory of the 05704-A-0135 for industrial operators who have chosen asset extension over premature system retirement. This is not a commodity listing. Stock is finite and does not replenish.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on platform documentation. Do not substitute without engineering review.

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 platform was the backbone of process automation across refining, petrochemical, pulp and paper, and power generation industries from the 1980s through the early 2000s. Tens of thousands of these systems remain in active service globally — not because operators are unaware of their age, but because the cost and risk of replacement outweigh the cost of maintenance when spare parts remain available.

The Channel Control Card (05704-A-0135) sits at the communication and control layer of the TDC 3000 architecture. Its failure disrupts loop control and data highway communication, which can cascade into broader process upsets. Unlike peripheral I/O cards, this module is not easily bypassed or substituted with a generic alternative. The system expects this specific hardware at this specific address.

Facilities that have not pre-positioned at least one verified spare unit are operating with a single point of failure that carries a multi-million dollar consequence. The industrial spare parts market for TDC 3000 components has contracted sharply over the past decade as original inventory is consumed and not replaced. Each year, the probability of sourcing a verified unit on short notice decreases.

How to extend your TDC 3000 asset life by 5 to 10 years — without a full migration:

• Audit your critical single-point-of-failure modules now. Identify every card in your system for which you hold zero verified spares. The 05704-A-0135 is a high-priority candidate.
• Pre-position at least two verified spare units per critical card type. One spare is a temporary buffer. Two spares provide a maintenance window to source a third before you are exposed.
• Establish a firmware version registry. TDC 3000 cards are firmware-sensitive. A replacement card with an incompatible firmware revision can cause communication faults. Document the firmware version of every installed card before a failure event forces you to identify it under pressure.
• Negotiate a long-term supply agreement with a verified obsolete parts distributor. Spot-market sourcing at the moment of failure is the most expensive and least reliable procurement strategy. A standing agreement with a distributor who holds physical inventory is a risk management instrument, not a purchasing convenience.
• Defer migration until the capital cycle supports it. A $2,000 spare part that prevents a $1,500,000 unplanned shutdown is not a maintenance cost — it is an insurance instrument with a calculable return. Present it to plant management in those terms.

Condition & Reliability Assurance

Obsolete industrial control cards sourced from the secondary market carry risks that do not exist with current-production components. DriveKNMS applies a five-step qualification process to every 05704-A-0135 unit before it is offered for sale:

• Step 1 – Visual and mechanical inspection: Full examination of the PCB surface, connector pins, and card edge for physical damage, corrosion, burn marks, or evidence of prior field repair.
• Step 2 – Electrolytic capacitor assessment: Aged electrolytic capacitors are the primary failure mode in cards of this era. Each unit is inspected for capacitor bulging, leakage, and ESR degradation. Units with compromised capacitors are either recapped by qualified technicians or removed from inventory.
• Step 3 – Pin and connector integrity check: All edge connector pins and backplane connectors are inspected for oxidation, bending, and contact resistance. Corroded contacts are cleaned to IPC standards or the unit is rejected.
• Step 4 – Firmware version verification: Where technically accessible, the firmware revision is identified and documented. This information is provided to the buyer to support compatibility verification prior to installation.
• Step 5 – Functional burn-in (where test fixtures are available): Units are powered and exercised in a controlled environment to confirm basic operational integrity before shipment.

Units that do not pass all applicable steps are not sold as functional spares. Condition grade and any known limitations are disclosed in writing prior to order confirmation.
