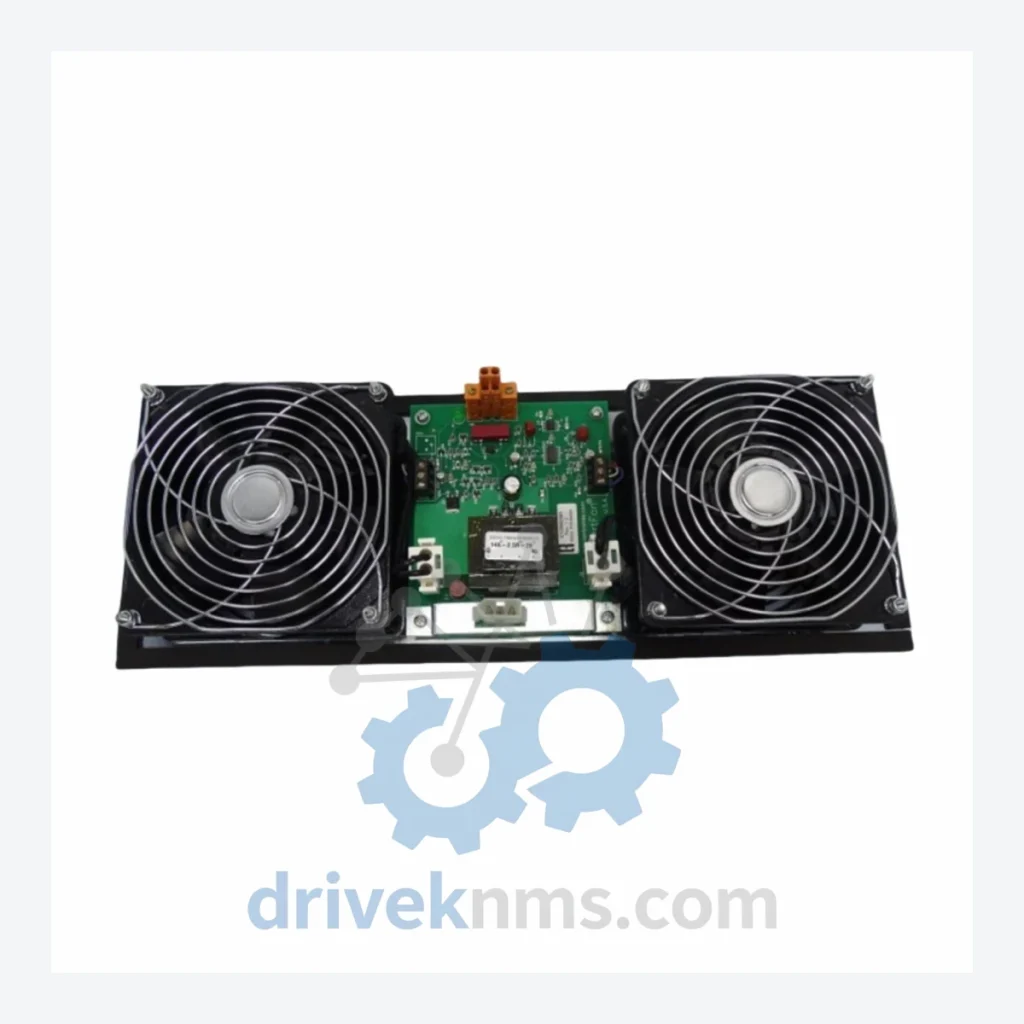

Honeywell 51199947 Series Cabinet Fan Assemblies – 51199947-175 115V

Technical Dossier

Product Details And Specifications

Honeywell 51199947 Series Technical Notes

The Honeywell 51199947 series encompasses cabinet fan and thermal management assemblies engineered for continuous-duty operation within Honeywell's TDC 3000 and HC900 Distributed Control System (DCS) enclosures. These assemblies are deployed across global heavy industry verticals including petroleum refining, chemical processing, nuclear power generation, pulp and paper, and offshore platform control rooms. The series provides forced-air cooling to maintain internal cabinet temperatures within the operating envelope required by sensitive backplane electronics, I/O modules, and communication adapters. Installed base counts in the tens of thousands of cabinets worldwide, making lifecycle support for this series a critical operational requirement for plant maintenance teams.

The Evolution of 51199947 Architecture

The 51199947 fan assembly series was introduced alongside the TDC 3000 platform in the mid-1980s as Honeywell transitioned from relay-logic control to fully digital distributed control architectures. Early revisions were designed for 115V AC single-phase operation, reflecting the North American industrial standard at the time. Subsequent revisions introduced 220–240V AC variants to address international installations in Europe, the Middle East, and Asia-Pacific refineries operating on 50 Hz grid infrastructure.

The mechanical design evolved from single-fan configurations to dual-fan redundant assemblies in later cabinet generations, providing N+1 cooling redundancy for high-availability process control environments. Connector and mounting bracket standards were revised across hardware generations; as a result, cross-revision substitution requires verification of physical form factor, voltage rating, airflow direction (intake vs. exhaust), and connector pinout compatibility before installation. The series entered the mature/end-of-life phase as Honeywell migrated customers toward the Experion PKS platform, but the installed base of TDC 3000 and HC900 systems in brownfield facilities ensures sustained demand for 51199947 replacement units through at least the 2030s.

51199947 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified models within the Honeywell 51199947 cabinet fan assembly series, organized by voltage rating and configuration:

115V AC Single-Phase Fan Assemblies

51199947-100: 115V AC cabinet fan assembly, single unit, standard airflow, TDC 3000 enclosure mount.
51199947-150: 115V AC fan assembly, revised bracket configuration for later-generation TDC 3000 cabinets.
51199947-175: 115V AC cabinet fan assembly, current production revision, direct replacement for -100 and -150 in compatible enclosures.
51199947-200: 115V AC dual-fan redundant assembly, N+1 cooling for high-availability cabinet configurations.
51199947-225: 115V AC fan tray assembly with integrated filter housing for dusty or particulate-laden environments.

220–240V AC International Variants

51199947-300: 220V AC single fan assembly, 50/60 Hz compatible, international enclosure standard.
51199947-350: 220V AC fan assembly, revised connector for European cabinet variants.
51199947-375: 240V AC fan assembly, UK/Australia market specification.
51199947-400: 220V AC dual-fan redundant assembly, international high-availability configuration.
51199947-425: 220V AC fan tray with integrated filter, international particulate environment specification.

Replacement & Accessory Components

51199947-500: Fan motor replacement kit, 115V, compatible with -100/-150/-175 assemblies.
51199947-550: Fan motor replacement kit, 220V, compatible with -300/-350/-375 assemblies.
51199947-600: Filter element replacement pack, fits -225 and -425 filter tray assemblies.
51199947-650: Mounting bracket kit, universal, for field-retrofit of fan assemblies into non-standard enclosures.
51199947-700: Wiring harness and connector assembly, replacement for damaged or corroded cable runs in aging cabinets.
51199947-750: Thermostat switch assembly, replacement thermal cutout for fan control circuits in TDC 3000 enclosures.

Quality Control for the 51199947 Range

All 51199947 series fan assemblies processed by DriveKNMS undergo a structured inspection and functional test protocol prior to dispatch:

Visual Inspection: Examination of fan blade integrity, housing for cracks or deformation, connector condition, and filter element status (where applicable).
Electrical Continuity Test: Verification of motor winding continuity and insulation resistance to confirm no open-circuit or short-circuit faults.
Voltage Application Test: Unit is energized at rated voltage (115V or 220/240V as applicable) and run for a minimum of 30 minutes to confirm stable motor operation, correct airflow direction, and absence of abnormal noise or vibration.
Thermal Cutout Verification: Where a thermostat switch assembly is present, the thermal cutout function is verified against rated trip temperature.
Connector and Harness Check: All connectors are inspected for pin integrity and mating force; harnesses are checked for insulation damage and correct pinout against Honeywell wiring documentation.
Final Documentation: Each unit is issued a test record with serial number, test date, technician ID, and pass/fail results for each test stage. Documentation is retained for a minimum of five years and is available to customers on request.
