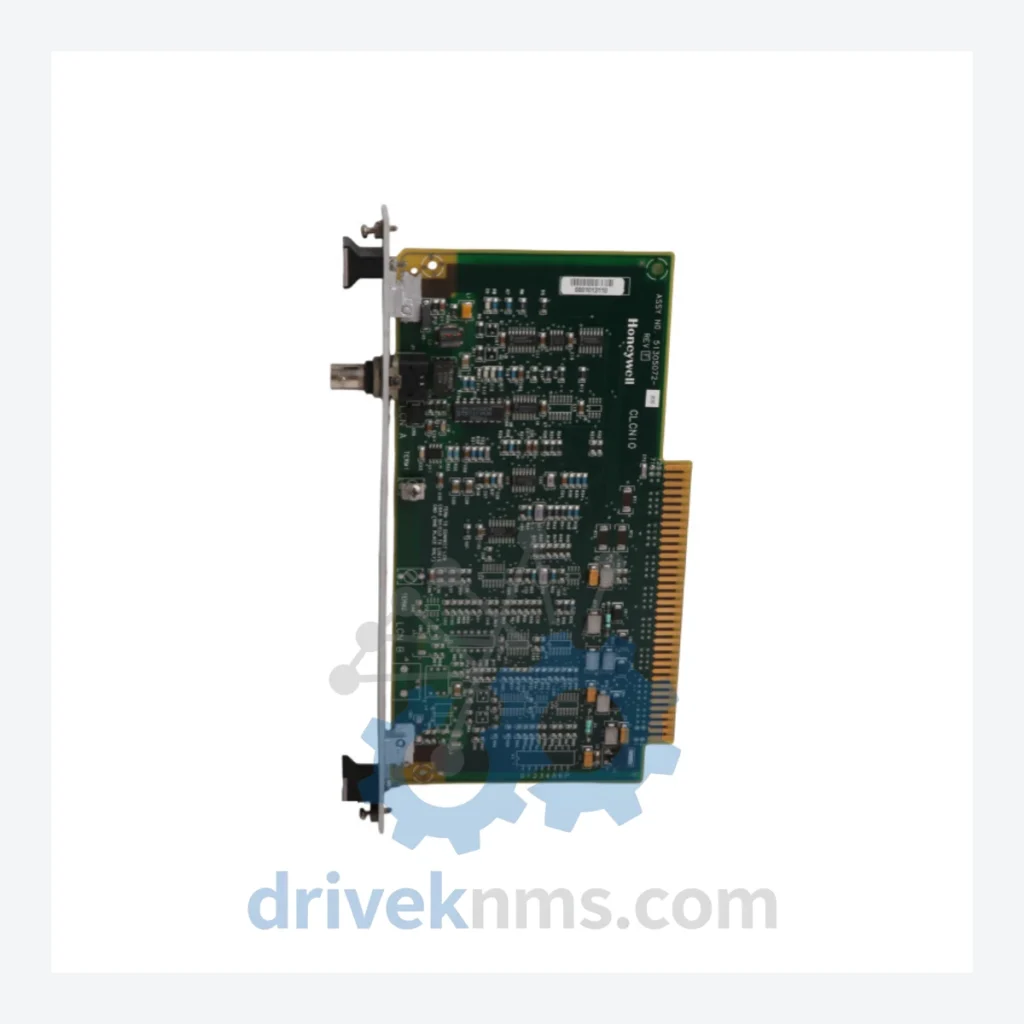

Honeywell TDC 3000 / TPS I/O Modules: 51305072-200

Technical Dossier

Product Details And Specifications

Honeywell TDC 3000 / TPS Series Technical Notes

The Honeywell TDC 3000 (Total Distributed Control) and its successor platform TotalPlant Solution (TPS) represent one of the most widely deployed Distributed Control System (DCS) architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and pharmaceutical manufacturing facilities, this platform has maintained a dominant installed base since its commercial introduction in the 1970s. The 51305072-200 is a field-proven I/O card within this ecosystem, designed for reliable signal conditioning and data acquisition within the TDC 3000 / TPS backplane architecture. With thousands of units still in active service worldwide, demand for verified spare parts and lifecycle support for this series remains structurally high.

The Evolution of TDC 3000 / TPS Architecture

Honeywell's TDC 3000 platform was introduced in 1975 as one of the first commercially viable DCS systems, replacing pneumatic and analog panel-based control. The architecture evolved through several distinct generations: the original TDC 3000 with Local Control Network (LCN), the Universal Control Network (UCN) expansion in the 1980s, and the TotalPlant Solution (TPS) rebranding in the 1990s which introduced enhanced operator stations and expanded I/O density. The platform's backplane and module form factor remained largely backward-compatible across generations, which is a primary reason why legacy 51305072-series cards remain interchangeable across a wide range of installed systems. By the 2000s, Honeywell began transitioning customers toward the Experion PKS platform, officially placing TDC 3000 / TPS in a sustained-support (end-of-active-development) lifecycle. This transition has not eliminated demand — it has concentrated it, as operators of aging plants require verified OEM-equivalent spares to avoid full system migrations.

TDC 3000 / TPS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Honeywell TDC 3000 / TPS ecosystem, organized by functional category. Each module is a discrete line-replaceable unit (LRU) designed for hot-swap or scheduled maintenance replacement.

Analog Input / Output Modules

• 51305072-200: I/O Card, analog signal interface for TDC 3000 / TPS backplane, field-side termination.
• 51304485-100: Analog Input Module, 4–20 mA, 8-channel, UCN-compatible.
• 51304485-150: Analog Input Module, enhanced noise immunity variant, 8-channel.
• 51304516-100: Analog Output Module, 4–20 mA, 8-channel, loop-powered.
• 51304516-200: Analog Output Module, isolated channel variant, 8-channel.
• 51309276-175: High-Level Analog Input Module, thermocouple/RTD compatible, 16-channel.

Digital Input / Output Modules

• 51304441-100: Digital Input Module, 24 VDC, 16-channel, optically isolated.
• 51304441-150: Digital Input Module, 120 VAC, 16-channel.
• 51304453-100: Digital Output Module, 24 VDC, 16-channel, relay-driven.
• 51304453-200: Digital Output Module, 120 VAC, 8-channel, solid-state relay.
• 51305895-100: Digital I/O Combination Module, 8 DI / 8 DO, 24 VDC.

Controller / Processor Modules

• 51401288-100: High-Performance Process Manager (HPM) Controller Card, UCN interface.
• 51402573-150: Advanced Process Manager (APM) CPU Module, LCN-compatible.
• 51304362-100: Basic Controller Module, single-loop PID, TDC 3000 rack-mount.

Communication & Network Modules

• 51304362-200: Local Control Network (LCN) Interface Card, coaxial bus termination.
• 51401584-100: Universal Control Network (UCN) Tap Module, redundant path support.
• 51304430-100: Data Hiway Interface Module, legacy plant bus connectivity.

Power Supply Modules

• 51109684-100: TDC 3000 Rack Power Supply, 24 VDC output, 10A rated.
• 51109684-200: Redundant Power Supply Module, hot-swap capable, TPS rack.

Quality Control for the TDC 3000 / TPS Range

TDC 3000 and TPS modules present specific test challenges due to their proprietary backplane bus protocol and multi-layer PCB construction. DriveKNMS applies a structured verification process to all I/O cards in this series: (1) Visual inspection for capacitor degradation, solder joint fatigue, and connector pin integrity; (2) Powered bench test using a TDC 3000-compatible rack simulator to verify backplane communication handshake; (3) Channel-level functional test for all analog and digital I/O points, including linearity verification for analog modules; (4) Firmware revision identification and documentation; (5) 48-hour burn-in cycle under thermal cycling conditions to screen latent failures. Modules that pass all stages are issued a DriveKNMS test certificate and shipped with full traceability documentation.
