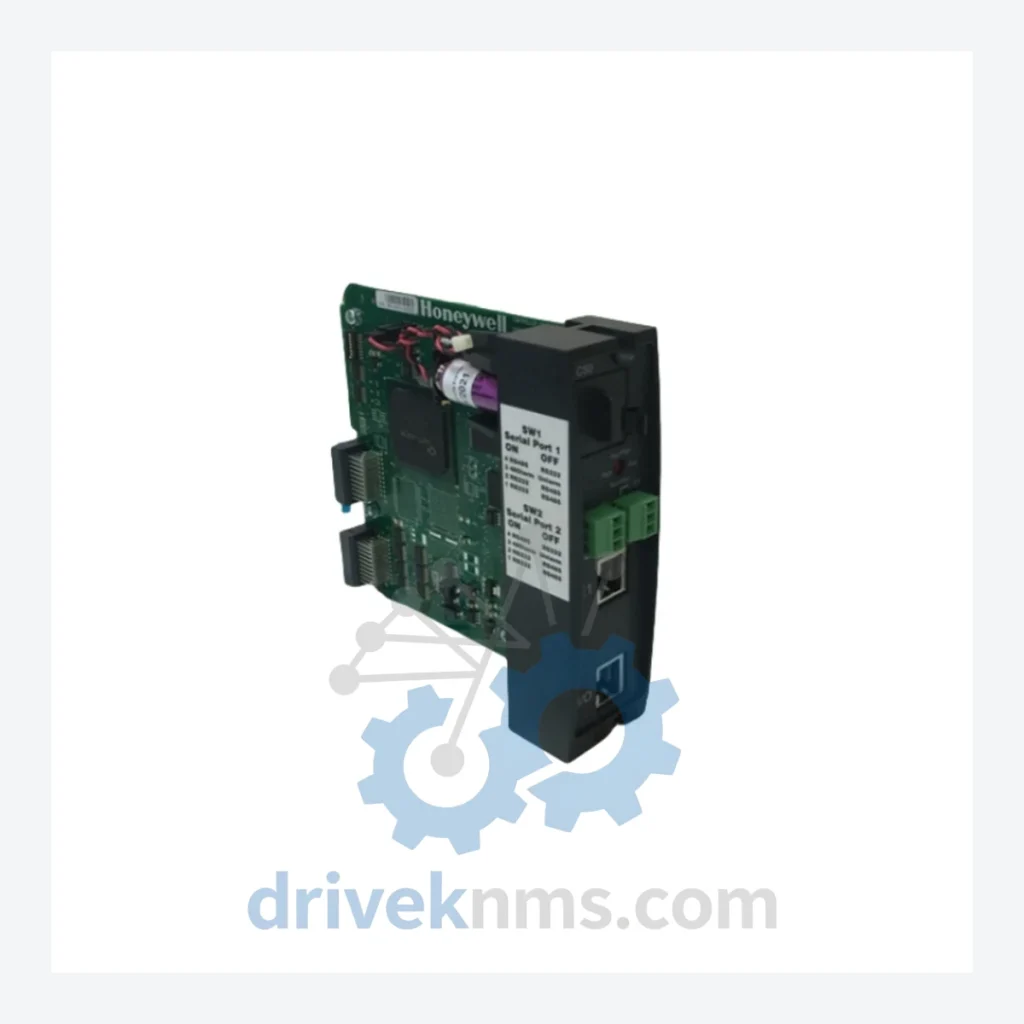

Honeywell 51305980-848 Fieldbus Interface Module: FSC Series

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Honeywell Fail Safe Controller (FSC) series is a dedicated safety-instrumented system (SIS) platform deployed across critical process industries including petroleum refining, chemical manufacturing, nuclear power generation, and offshore oil & gas production. Certified to IEC 61508 SIL 2/3, the FSC architecture provides hardware fault tolerance through redundant CPU and I/O configurations. The 51305980-848 Fieldbus Interface Module serves as the communication bridge between the FSC backplane and FOUNDATION Fieldbus H1 segments, enabling digital field device integration without sacrificing the deterministic scan cycles required in safety-critical loops. Globally, FSC-based systems remain embedded in tens of thousands of process units, many of which were commissioned in the 1990s and early 2000s and are now in long-term maintenance mode.

The Evolution of FSC Architecture

The Honeywell FSC platform was introduced in the early 1990s as a standalone SIS solution, initially operating with proprietary serial backplane communication. Early generations used the FSC 10000 chassis with discrete wiring I/O modules and a single-CPU topology. By the mid-1990s, Honeywell introduced redundant CPU pairs and expanded the I/O module library to support analog, digital, and pulse inputs natively on the FSC bus.

The integration of fieldbus communication—specifically FOUNDATION Fieldbus H1—arrived with modules such as the 51305980-848, allowing FSC systems to interface with smart field devices while maintaining SIL-rated loop integrity. This generation also introduced the High-Integrity Link (HIL) for peer-to-peer FSC-to-FSC communication in large safety systems.

FSC Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Honeywell FSC platform. Each entry reflects a distinct functional role within the FSC chassis architecture.

CPU & Controller Modules

• 51304485-100: FSC Central Processing Unit, single-slot, SIL 2 rated main controller
• 51304485-150: FSC CPU module, enhanced memory variant for large logic configurations
• 51304485-200: FSC redundant CPU module, hot-standby pair configuration
• 51309276-425: FSC High-Integrity CPU, SIL 3 certified, dual-channel voting logic

Digital Input (DI) Modules

• 51304516-100: 24 VDC Digital Input module, 16-channel, field-powered
• 51304516-150: 24 VDC Digital Input module, 32-channel, high-density configuration
• 51304516-200: 120 VAC Digital Input module, 16-channel, isolated
• 51309218-175: FSC DI module, NAMUR sensor compatible, intrinsically safe barriers

Digital Output (DO) Modules

• 51304517-100: 24 VDC Digital Output module, 16-channel, relay-driven
• 51304517-150: 24 VDC Digital Output module, 8-channel, high-current solid-state
• 51304517-200: 120 VAC Digital Output module, 8-channel, triac output

Analog Input (AI) Modules

• 51304453-150: 4–20 mA Analog Input module, 8-channel, HART pass-through enabled
• 51304453-200: RTD/Thermocouple Input module, 8-channel, cold junction compensated
• 51304453-250: High-accuracy AI module, 16-bit resolution, SIL 2 loop-certified

Fieldbus & Communication Modules

• 51305980-848: FOUNDATION Fieldbus H1 Interface Module, dual-segment, FSC backplane mount
• 51309288-225: FSC High-Integrity Link (HIL) module, peer FSC communication adapter
• 51304441-100: Modbus RTU Communication Interface, RS-485, master/slave configurable

Power Supply Modules

• 51304362-150: FSC Power Supply module, 24 VDC input, 10 A output, redundancy-capable
• 51304362-200: FSC Redundant Power Supply module, auto-switchover, hot-swap

Quality Control for the FSC Range

FSC modules present specific test challenges due to their safety-rated backplane bus architecture and dual-channel internal logic. DriveKNMS applies the following verification procedures to all FSC inventory:
