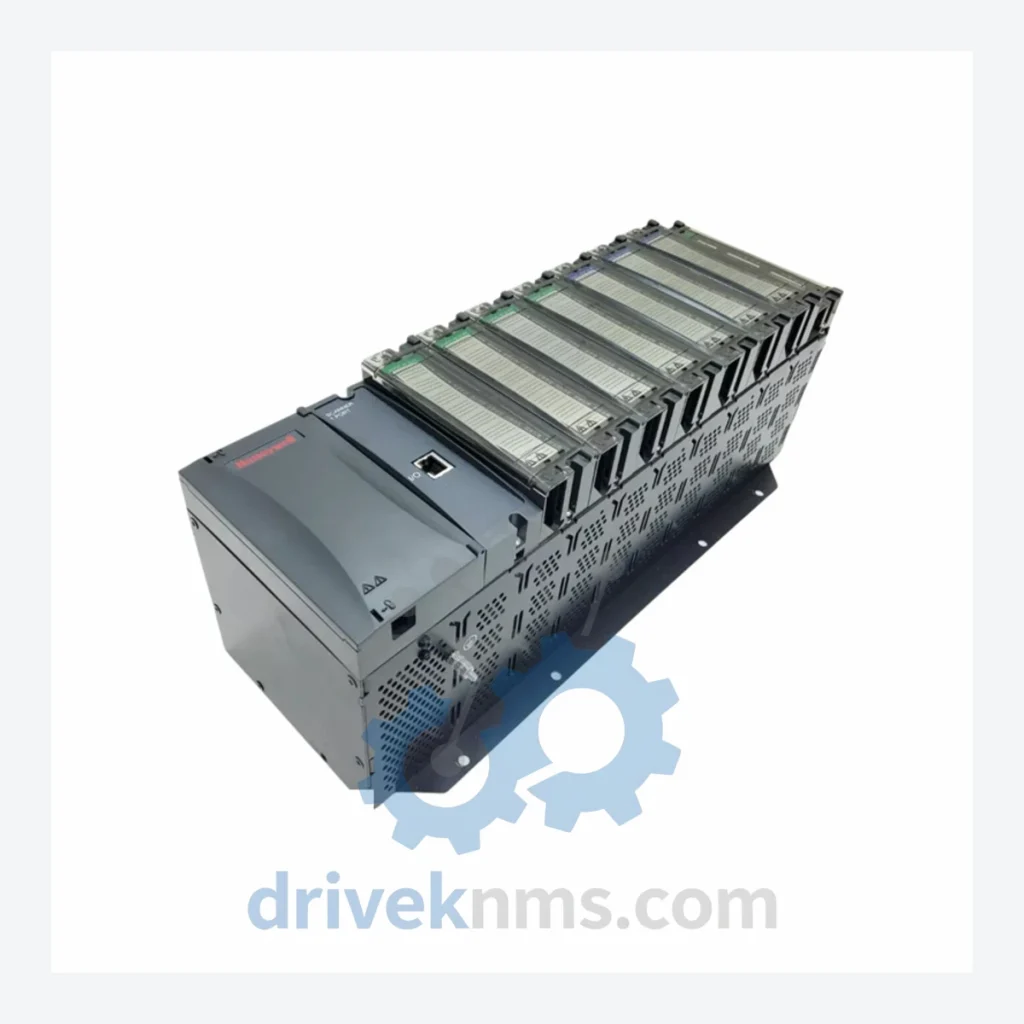

Honeywell HC900 Modules: 900R12-0101 12-Slot Rack —

Technical Dossier

Product Details And Specifications

Honeywell HC900 Series: Comprehensive Module Range and Technical Overview

The Honeywell HC900 Process Controller is a hybrid control platform deployed across global heavy industry — including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and continuous-process chemical plants. Its modular rack-based architecture allows engineers to configure systems ranging from standalone loop controllers to multi-rack distributed control networks. The 900R12-0101 is the 12-slot rack chassis that forms the physical backbone of any full-scale HC900 installation, accommodating CPU, I/O, and communication modules within a single backplane assembly. HC900 installations are documented in facilities across North America, Europe, and Asia-Pacific, with a significant installed base in aging infrastructure that requires long-term spare parts support.

The Evolution of HC900 Architecture

The HC900 platform was introduced by Honeywell in the early 2000s as a successor to legacy loop controller families, designed to bridge the gap between standalone PID controllers and full DCS installations. The original architecture centered on a single-rack, single-CPU topology using the 900C50 and 900C52 controller modules operating over a proprietary C-Link peer-to-peer network. Subsequent hardware revisions introduced the 900C70 and 900C72 high-capacity controllers with expanded memory and faster scan rates, enabling multi-rack configurations via the rack expansion bus.

The backplane communication protocol evolved from parallel bus to a serialized internal bus in later rack revisions, creating compatibility constraints between early-generation I/O modules and newer CPU firmware. Engineers maintaining mixed-generation HC900 systems must verify module revision levels against the HC900 Process Controller Designer's Handbook (document 51-52-25-66) to avoid bus arbitration conflicts. As of 2024, Honeywell has transitioned active development to the Experion PKS platform, placing the HC900 in a sustained-support lifecycle phase — meaning hardware is no longer actively developed but remains supported for spare parts and firmware patches through Honeywell's lifecycle management program.

HC900 Full Catalog & Functionalities (SKU List)

Rack & Chassis

• 900R12-0101: 12-slot rack chassis, primary backplane for full HC900 I/O expansion
• 900R08-0101: 8-slot rack chassis, mid-scale I/O configuration backbone
• 900R04-0101: 4-slot rack chassis, compact single-loop or auxiliary rack

CPU / Controller Modules

• 900C50-0143-00: HC900 Controller, 500ms scan, 2500 I/O points, single Ethernet port
• 900C52-0143-00: HC900 Controller, 500ms scan, redundancy-capable, dual Ethernet
• 900C70-0143-00: HC900 High-Capacity Controller, 100ms scan, 5000 I/O points
• 900C72-0143-00: HC900 High-Capacity Controller, redundancy-capable, dual Ethernet, 100ms scan

Analog Input (AI) Modules

• 900G32-0101: 16-channel analog input, 4–20mA / 1–5V, HART-capable
• 900G16-0101: 8-channel analog input, thermocouple / RTD / mV universal input
• 900G08-0101: 4-channel analog input, high-speed, 50ms update rate

Analog Output (AO) Modules

• 900H32-0101: 8-channel analog output, 4–20mA, loop-powered, HART pass-through
• 900H08-0101: 4-channel analog output, 0–10V / 4–20mA selectable

Digital Input (DI) Modules

• 900G01-0101: 32-channel digital input, 24VDC, sink/source configurable
• 900G04-0101: 16-channel digital input, 120VAC isolated

Digital Output (DO) Modules

• 900H01-0101: 32-channel digital output, 24VDC, 0.5A per channel
• 900H04-0101: 8-channel relay output, SPDT, 2A @ 120VAC

Communication & Network Modules

• 900RTC-0001: Real-Time Clock module, GPS-syncable, rack-mounted
• 900MIO-0001: Modbus TCP/RTU gateway module, dual-port Ethernet

Power Supply Modules

• 900P01-0001: HC900 rack power supply, 24VDC input, 30W output
• 900P02-0001: HC900 redundant power supply module, hot-swap capable

Sourcing Hard-to-Find & Obsolete HC900 Parts

DriveKNMS maintains a dedicated inventory program for HC900 components that have entered end-of-active-production status. The 900C50 and 900C52 controller modules, along with early-revision I/O modules carrying hardware revision A or B suffixes, are no longer manufactured by Honeywell but remain in active service at thousands of process facilities worldwide. DriveKNMS sources these components through certified secondary-market channels, decommissioned plant buybacks, and OEM surplus liquidation. All units are catalogued by hardware revision, firmware version, and physical condition grade prior to listing. For facilities operating under extended maintenance contracts that prohibit platform migration, DriveKNMS provides multi-year reservation agreements to guarantee parts availability across scheduled turnaround cycles. Customers requiring documentation packages — including original test certificates, revision history, and country-of-origin declarations — can request these at the time of inquiry.

Quality Control for the HC900 Range

HC900 modules present specific test challenges due to their integrated backplane bus interface and onboard EEPROM configuration storage. DriveKNMS applies a structured test protocol to all HC900 units prior to dispatch. Rack chassis units such as the 900R12-0101 undergo backplane continuity testing across all 12 slot connectors using a dedicated bus analyzer, verifying signal integrity on the data, address, and power rails. CPU modules are bench-powered and subjected to a full boot cycle, firmware version verification, and C-Link communication handshake test using a reference rack. Analog I/O modules are calibrated against a traceable reference standard, with channel-by-channel linearity and offset verification recorded in a test report issued with each unit. Digital I/O modules are cycled through full on/off state sequences under rated load conditions. All modules are inspected for capacitor condition, connector pin integrity, and conformal coating status before packaging.
