Honeywell Experion PKS C200/C200E Modules – 51204146-030

Technical Dossier

Product Details And Specifications

Honeywell Experion PKS C200/C200E Series Technical Notes

The Honeywell Experion PKS C200 and C200E controllers represent a core tier of Honeywell's Process Knowledge System (PKS) distributed control architecture. Deployed extensively across global heavy industry — including petrochemical complexes, nuclear power facilities, LNG terminals, and crude oil refineries — the C200/C200E platform serves as the primary process controller in installations requiring deterministic scan times, high-availability redundancy, and tight integration with Honeywell's FTE (Fault Tolerant Ethernet) backbone. The C200 controller (first-generation) and its successor the C200E (enhanced) are found in brownfield and greenfield DCS installations across North America, the Middle East, Southeast Asia, and Europe. Their long service life — often exceeding 15–20 years in continuous operation — creates sustained demand for spare parts, replacement modules, and lifecycle extension services.

The Evolution of Experion PKS C200/C200E Architecture

Honeywell introduced the Experion PKS platform in the early 2000s as a successor to the TDC 3000 and PlantScape systems. The C200 controller was among the first process controllers released under the Experion PKS brand, designed around a modular backplane architecture using the Control Execution Environment (CEE) software framework. The C200 communicates via Honeywell's proprietary FTE (Fault Tolerant Ethernet), a dual-redundant switched Ethernet network that provides deterministic, fault-tolerant communication between controllers, I/O links, and operator stations.

The C200E (Enhanced) followed as a hardware revision offering increased memory capacity, faster scan rates, and improved diagnostics. Both variants share the same physical form factor and backplane pinout, enabling in-place hardware upgrades in existing cabinets without rewiring. The C200/C200E platform interfaces with Series C I/O modules via the Control Firewall (CF9) and I/O Link Interface Module (IOLI), and supports redundant controller pairs for high-availability configurations. As of the mid-2020s, Honeywell has positioned the C300 and C300E as the forward migration path; however, the C200/C200E installed base remains large, and Honeywell continues to provide limited lifecycle support. Many end users are extending C200/C200E system life through third-party spare parts sourcing rather than undertaking full platform migrations.

Experion PKS C200/C200E Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly stocked modules within the Honeywell Experion PKS C200/C200E ecosystem. Modules are categorized by functional role.

Controllers

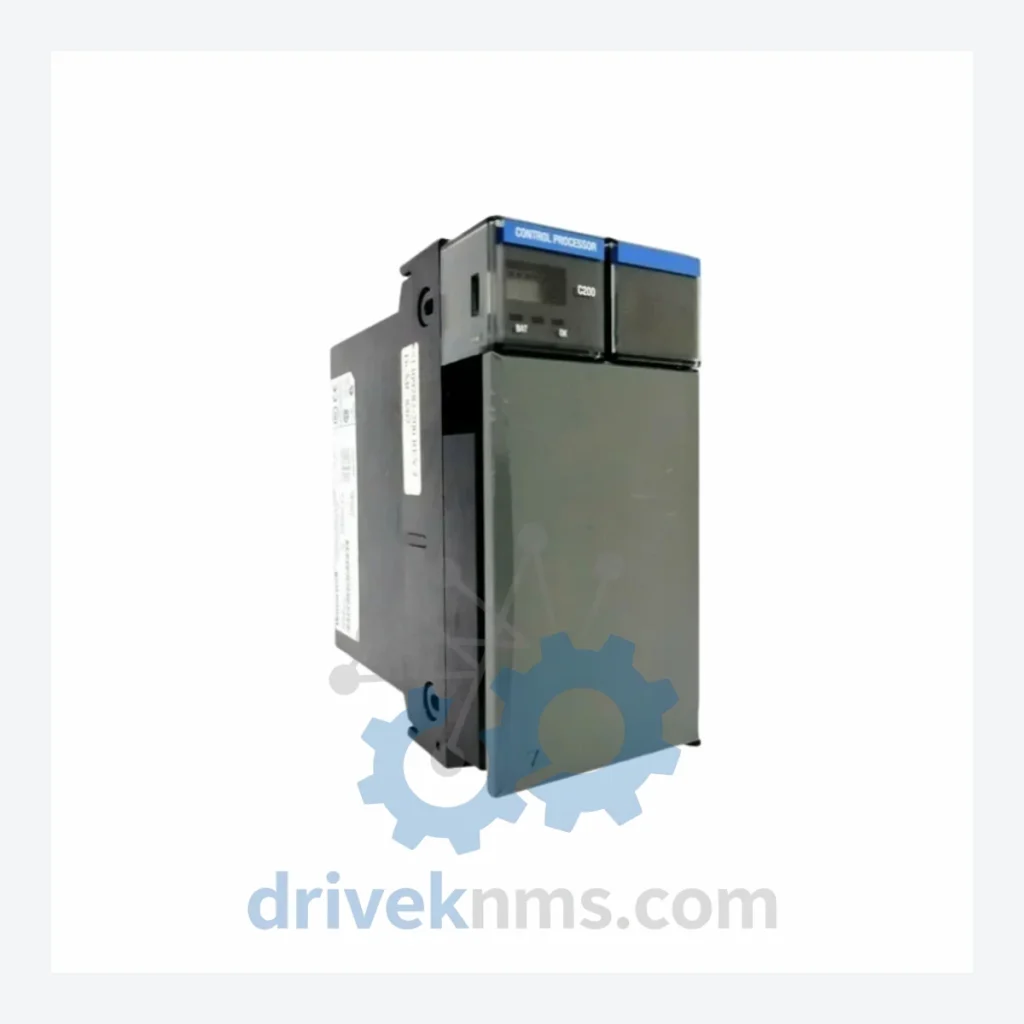

51204146-030: C200E Process Controller module, enhanced memory, FTE-ready, redundancy-capable.
51204146-025: C200 Process Controller, standard memory, FTE communication, CEE-based execution.
51204160-175: C200E Controller with expanded I/O capacity and dual-port FTE interface.

I/O Link & Communication Modules

51304516-100: Control Firewall CF9, isolates controller subnet from plant FTE network.
51304516-150: CF9 Enhanced, supports higher throughput for large I/O counts.
51202329-200: I/O Link Interface Module (IOLI), bridges C200 controller to Series C I/O subsystem.
51202329-225: IOLI Redundant version, dual-link failover for critical process loops.
51401288-100: FTE Interface Module, provides dual-port FTE connectivity for non-FTE-native devices.

Analog Input (AI) Modules

51304453-150: 8-channel AI module, 4–20 mA HART, Series C, for C200 I/O subsystem.
51304453-175: 16-channel AI module, HART-enabled, high-density analog input.
51304362-175: AI module, thermocouple/RTD inputs, 8-channel, isolated.

Analog Output (AO) Modules

51304754-150: 8-channel AO module, 4–20 mA, HART-capable, Series C.
51304754-175: 16-channel AO module, high-density analog output, HART.

Digital Input (DI) Modules

51304441-150: 32-channel DI module, 24 VDC, Series C, for discrete process monitoring.
51304441-175: 32-channel DI module, 120 VAC input, isolated.

Digital Output (DO) Modules

51304445-150: 32-channel DO module, 24 VDC, solid-state output, Series C.
51304445-175: 16-channel DO module, relay output, 120/240 VAC.

Power Supply Modules

51204172-175: C200/C200E Cabinet Power Supply, 24 VDC, redundant-capable.
51204172-150: Standard Power Supply for C200 controller cabinet, single-feed configuration.

Quality Control for the Experion PKS C200/C200E Range

The C200/C200E platform uses a proprietary backplane bus for inter-module communication within the controller chassis. Modules removed from service or sourced from surplus must be validated against this bus protocol before being returned to a live control environment. DriveKNMS applies the following test procedures to all C200/C200E modules prior to shipment:

Controller modules (51204146-xxx series) are bench-tested using a dedicated C200/C200E test chassis with active FTE network simulation. CEE firmware version compatibility is verified and documented. I/O modules are tested under simulated field signal conditions — 4–20 mA loops for analog modules, 24 VDC switching for digital modules — with channel-by-channel pass/fail logging. Communication modules (CF9, IOLI) are validated for backplane handshake integrity and FTE packet routing. Power supply modules are load-tested at 100% rated current for a minimum burn-in period before release. All tested units receive a DriveKNMS inspection label with technician ID, test date, and firmware version where applicable.
