Honeywell Experion PKS DC-TUIO Series: Comprehensive Module Range and Technical Overview

The Honeywell DC-TUIO series constitutes the primary field termination and I/O module layer within the Experion PKS (Process Knowledge System) distributed control architecture. Deployed across the global heavy process industries — including petrochemical complexes, LNG terminals, nuclear power stations, offshore platforms, and crude oil refineries — these modules serve as the physical interface between field instrumentation and the C300 Controller backbone. Installations of Experion PKS with DC-TUIO infrastructure are documented across facilities operated by Shell, ExxonMobil, Saudi Aramco, Sinopec, and CNOOC, among others. The series encompasses analog input, analog output, digital input, digital output, and universal I/O termination assemblies, all designed for direct mounting on the Series C I/O Link (SCIO Link) backplane. The DC-TUIO modules are engineered to IEC 61511 functional safety standards and support HART field device communication on applicable analog channels. Their modular, hot-swappable design enables online replacement without process interruption, a critical requirement in continuous-operation refinery and chemical plant environments.

The Evolution of DC-TUIO Architecture

The DC-TUIO series was introduced as part of Honeywell's transition from the legacy TDC 3000 / TotalPlant Solution (TPS) platform to the Experion PKS architecture, formally launched in 2001. Early Experion deployments utilized the Series C I/O subsystem, which established the physical and electrical standards that the DC-TUIO family adheres to. The original DC-TUIO modules were designed to interface with the C200 Controller; subsequent revisions extended compatibility to the C300 Controller, which became the dominant controller platform from approximately 2005 onward.

A key architectural evolution was the introduction of HART pass-through capability on analog I/O modules, enabling asset management software (Honeywell Field Device Manager / AMS Device Manager) to communicate with HART-enabled field instruments without additional wiring infrastructure. Later hardware revisions (identifiable by the 51307xxx and 51309xxx part number suffixes) incorporated enhanced EMI shielding and revised backplane connectors to support higher-density I/O configurations. The DC-TUIO series reached functional maturity by approximately 2010 and has since entered a sustained-availability phase. Honeywell continues to supply these modules as spare parts, but new greenfield engineering specifications increasingly reference the EPKS Series D I/O and Universal I/O (UIO) platforms as forward-looking alternatives. For existing brownfield installations, the DC-TUIO series remains the only fully compatible replacement option without a controller migration project.

DC-TUIO Full Catalog & Functionalities (SKU List)

The following catalog covers verified, commonly deployed SKUs within the Honeywell Experion PKS DC-TUIO series. Modules are classified by functional category.

Analog Input (AI) Modules

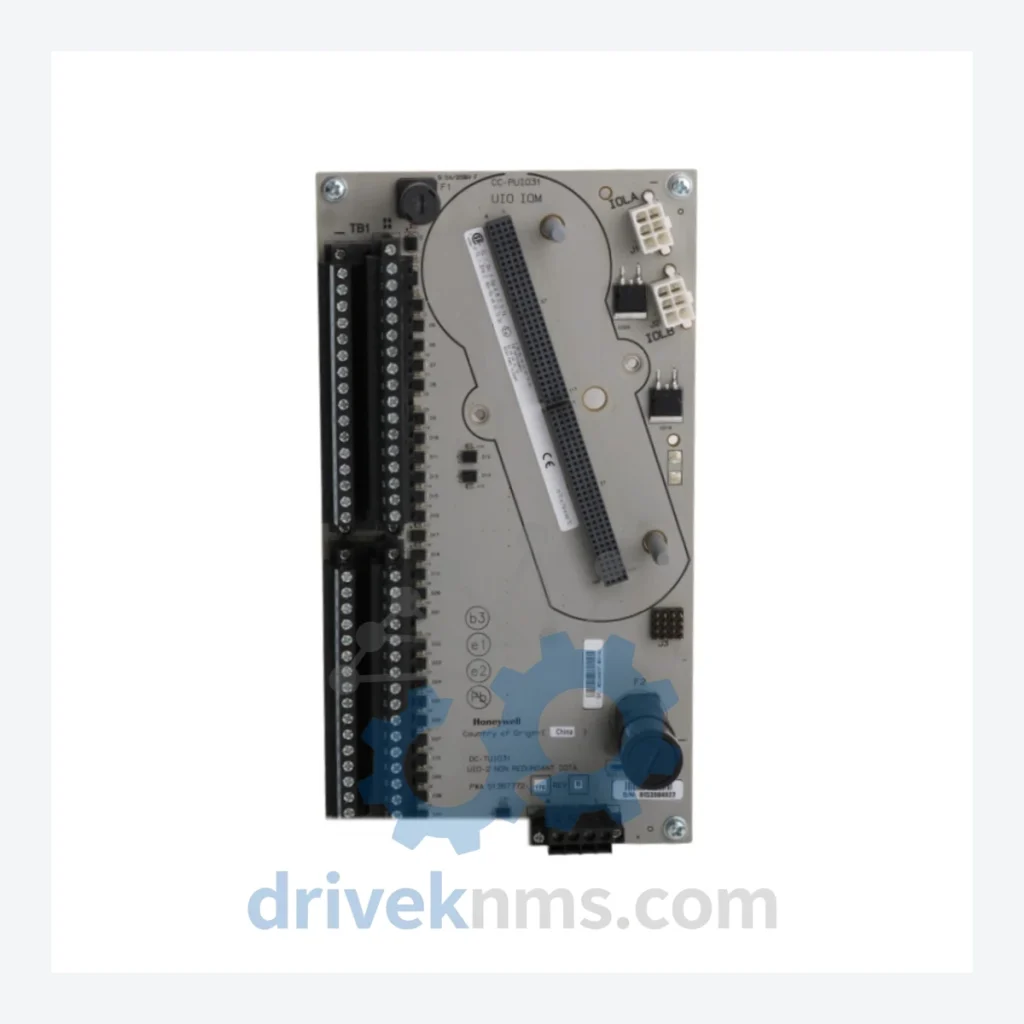

• DC-TUIO31 / 51307772-176: 8-channel analog input termination unit, 4–20 mA, HART-enabled, Series C I/O Link compatible
• DC-TUIA01 / 51309276-175: 8-channel analog input module, isolated, 4–20 mA with HART, for C300 controller
• DC-TUIA02 / 51309276-225: 8-channel analog input, non-isolated, 4–20 mA, HART pass-through, high-density backplane
• DC-TUIA03 / 51309276-275: 16-channel analog input, multiplexed, 4–20 mA, non-HART, for high channel-count applications
• DC-TUIA04 / 51309276-325: 8-channel thermocouple/RTD analog input, multi-sensor type, cold junction compensated

Analog Output (AO) Modules

• DC-TUOA01 / 51309280-175: 8-channel analog output, 4–20 mA, HART-enabled, isolated per channel
• DC-TUOA02 / 51309280-225: 8-channel analog output, non-isolated, 4–20 mA, HART pass-through
• DC-TUOA03 / 51309280-275: 4-channel analog output, high-accuracy, 0–20 mA / 4–20 mA selectable, for precision control loops

Digital Input (DI) Modules

• DC-TUDI01 / 51309288-175: 32-channel digital input, 24 VDC, dry contact / wet contact selectable, SOE-capable
• DC-TUDI02 / 51309288-225: 32-channel digital input, 120 VAC, optically isolated, for high-voltage field signals
• DC-TUDI03 / 51309288-275: 16-channel digital input, 24 VDC, with sequence-of-events (SOE) 1 ms resolution

Digital Output (DO) Modules

• DC-TUDO01 / 51309292-175: 16-channel digital output, 24 VDC, solid-state, 0.5 A per channel, short-circuit protected
• DC-TUDO02 / 51309292-225: 8-channel digital output, relay type, SPDT, 2 A per channel, for motor starter and valve applications
• DC-TUDO03 / 51309292-275: 16-channel digital output, 120 VAC, solid-state, optically isolated, for AC field devices

Universal I/O & Power Modules

• DC-TUIO11 / 51307772-126: Universal I/O termination unit, configurable AI/AO/DI/DO per channel via software, HART-enabled
• DC-TUPB01 / 51309296-175: I/O Link power bus module, 24 VDC, redundant power input, for Series C backplane power distribution
• DC-TUIO21 / 51307772-150: 8-channel universal I/O, isolated, software-configurable signal type, C300 compatible

Sourcing Hard-to-Find & Obsolete DC-TUIO Parts

DriveKNMS maintains a dedicated inventory program for Honeywell Experion PKS DC-TUIO series modules, with particular focus on part numbers that Honeywell has transitioned to limited-availability or end-of-production status. As the Experion PKS platform ages into its second and third decade of field deployment, procurement teams at refineries and chemical plants increasingly encounter extended lead times — often 16 to 52 weeks — for standard Honeywell distribution channels.

DriveKNMS addresses this gap through the following supply mechanisms: (1) Surplus stock acquisition from decommissioned DCS systems at plant shutdowns and turnarounds globally; (2) Tested used modules sourced from verified industrial dismantlers, each subject to full functional testing before resale; (3) Cross-reference matching for superseded part numbers — for example, mapping legacy 51307xxx part numbers to their current 51309xxx equivalents where hardware revisions are backward-compatible. Customers requiring long-term maintenance agreements for aging Experion PKS installations are encouraged to contact DriveKNMS to discuss consignment stock arrangements and annual supply contracts.

Quality Control for the DC-TUIO Range

The DC-TUIO series presents specific quality verification challenges due to its backplane-dependent communication architecture and HART signal integrity requirements. DriveKNMS applies the following test protocol to all DC-TUIO modules prior to dispatch:

• Backplane connector inspection: Visual and dimensional verification of the Series C I/O Link edge connector for pin deformation, oxidation, and mechanical wear. Connectors exhibiting contact resistance above 50 mΩ are rejected.
• Power supply sequencing test: Modules are powered via a calibrated 24 VDC bench supply. Inrush current, steady-state consumption, and internal voltage rail stability (3.3 V, 5 V logic rails) are measured and logged.
• Channel-level functional test: Each I/O channel is exercised across its full signal range using a precision signal source (Fluke 725 or equivalent). For AI modules: 4 mA, 12 mA, and 20 mA injection with accuracy verification to ±0.1% of span. For DO modules: load switching at rated current with contact resistance measurement.
• HART communication verification: On HART-enabled modules, a HART modem is used to confirm FSK signal modulation at 1200 Hz / 2200 Hz and successful device descriptor (DD) handshake.
• Firmware revision logging: Module firmware version is read via the Experion PKS engineering station or a compatible configuration tool and recorded on the test certificate accompanying each shipment.
• Burn-in cycle: Modules are operated at 40°C ambient for a minimum of 24 hours under simulated I/O load prior to final inspection.
