Honeywell Safety Manager FC Series Modules: FC-SDO-0424

Technical Dossier

Product Details And Specifications

Honeywell Safety Manager FC Series Technical Notes

The Evolution of FC Series Architecture

The Honeywell FSC/FC safety controller platform originated in the early 1990s under the Fail-Safe Controller designation, developed to address the growing regulatory demand for certified safety shutdown systems in the hydrocarbon processing sector. The initial FSC hardware used a dual-processor voting architecture with discrete I/O modules communicating over a proprietary parallel backplane. Through the mid-1990s to early 2000s, the platform evolved into the FC Series with a standardized 19-inch rack form factor, modular I/O expansion, and integration with Honeywell's TotalPlant Solution (TPS) and later Experion PKS distributed control environments via the Safety Manager gateway.

Key architectural milestones include the introduction of the FC-CPU-0100 series processors with expanded memory and faster scan rates, the transition from parallel to serial backplane communication in later hardware revisions, and the addition of HART pass-through capability on analog I/O modules. The FC Series reached its mature phase in the 2010s and is now in a sustained support lifecycle. Honeywell has positioned the Safety Manager SC (SMC) as the forward migration path; however, the FC Series remains in active service at a large number of sites where capital replacement projects are deferred. This creates sustained demand for FC Series spare modules, particularly output and communication cards which are subject to higher failure rates due to field-side electrical stress.

FC Series Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the Honeywell Safety Manager FC Series. Modules are classified by functional category.

Safe Digital Output Modules

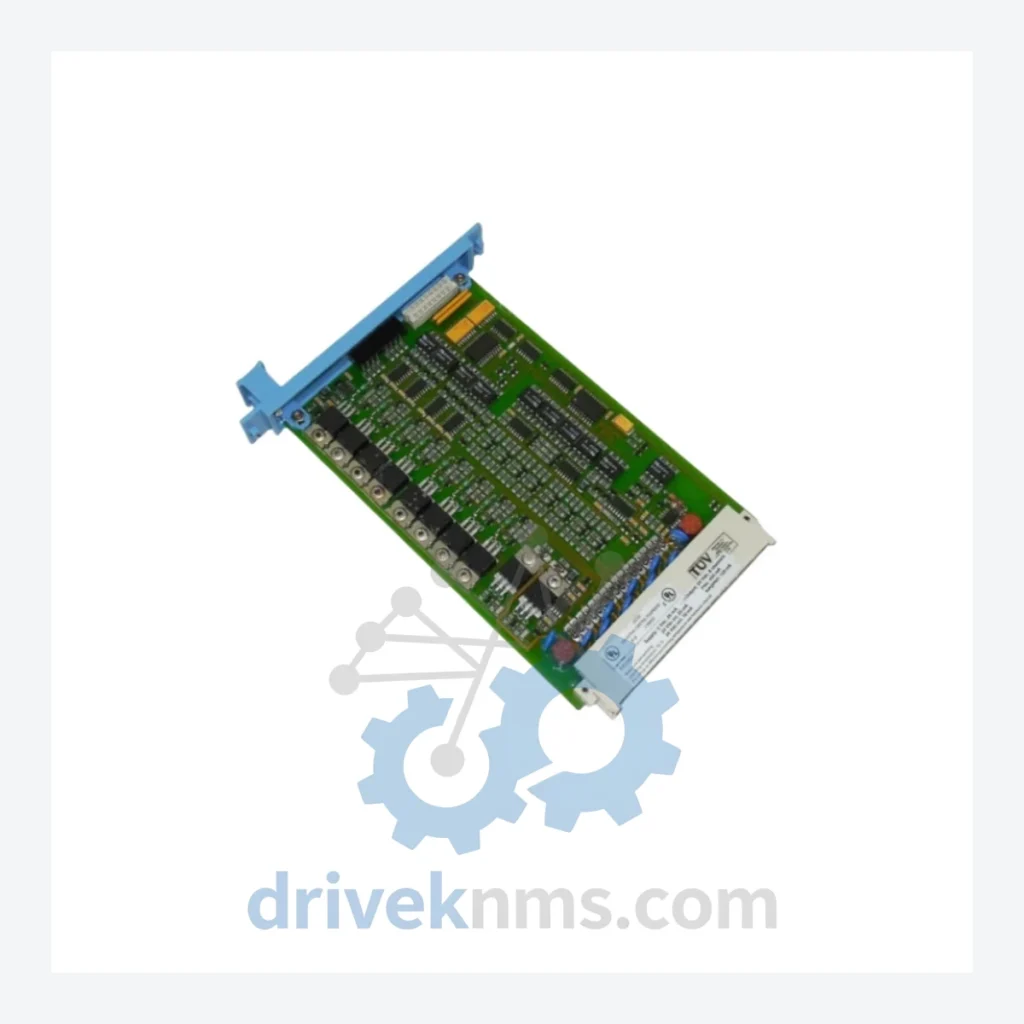

FC-SDO-0424: 4-channel 24 VDC safe digital output, SIL 3 rated, field-side short-circuit protection.
FC-SDO-0824: 8-channel 24 VDC safe digital output module, dual-redundant coil drive capability.
FC-SDO-0424H: High-current variant of FC-SDO-0424, supports inductive load switching up to 2A per channel.

Safe Digital Input Modules

FC-SDI-0424: 4-channel 24 VDC safe digital input, line fault detection, SIL 3 certified.
FC-SDI-0824: 8-channel 24 VDC safe digital input module with configurable input filtering.
FC-SDI-1224: 12-channel digital input module for high-density I/O rack configurations.

Safe Analog Input Modules

FC-SAI-0420: 4-channel 4–20 mA safe analog input, HART revision 5/6 compatible.
FC-SAI-0420H: HART-enabled variant with per-channel HART multiplexer support.
FC-SAI-0820: 8-channel 4–20 mA safe analog input, dual A/D conversion per channel.

Safe Analog Output Modules

FC-SAO-0420: 4-channel 4–20 mA safe analog output, open-loop detection, SIL 2 rated.
FC-SAO-0820: 8-channel 4–20 mA safe analog output module with readback verification.

CPU and Controller Modules

FC-CPU-0100: Primary safety controller CPU, 32 MB application memory, 10 ms minimum scan cycle.
FC-CPU-0200: Enhanced CPU with expanded I/O node support and dual Ethernet ports for redundant gateway connectivity.

Communication and Gateway Modules

FC-COM-ETH01: Ethernet communication module, Modbus TCP and OPC DA server, rack-mount form factor.
FC-COM-PRF01: PROFIBUS DP slave adapter for integration with third-party DCS hosts.
FC-PSU-2410: 24 VDC / 10 A redundant power supply module, hot-swap capable, rack-integrated.

Sourcing Hard-to-Find & Obsolete FC Series Parts

DriveKNMS sources FC Series modules through verified industrial surplus channels, decommissioned plant asset recovery, and direct procurement from authorized regional distributors. All modules are inspected, tested, and documented prior to dispatch. For plant operators managing aging FC Series installations, DriveKNMS provides bill-of-materials (BOM) cross-referencing to identify equivalent or compatible replacement modules where direct substitution is not available. Customers operating under ISA 84 or IEC 61511 safety lifecycle management programs can request full traceability documentation for sourced modules.

Quality Control for the FC Series Range

The Honeywell FC Series employs a proprietary backplane bus protocol with hardware-level CRC checking between the CPU and I/O modules. Testing of FC Series modules at DriveKNMS follows a structured protocol designed to validate both the field-side I/O circuitry and the backplane communication interface. Digital output modules such as the FC-SDO-0424 are tested under resistive and inductive load conditions across all channels simultaneously, with verification of the internal diagnostics register outputs. Safe digital input modules are tested with simulated line-fault conditions to confirm fault detection response times within specification.

Analog modules undergo calibration verification against NIST-traceable references, with 4–20 mA linearity checked at 0%, 25%, 50%, 75%, and 100% of span. CPU modules are powered in a live FC Series rack with a known-good I/O configuration and subjected to a minimum 48-hour burn-in cycle. Communication modules are validated for Modbus TCP and PROFIBUS DP frame integrity using protocol analyzers. All test results are logged and available to customers upon request.
