Honeywell FS Safety Manager Modules - FS-SCCNTL01

Technical Dossier

Product Details And Specifications

Honeywell FS Safety Manager Series Technical Notes

The Honeywell FS Safety Manager (FSM) series is a dedicated Safety Instrumented System (SIS) platform engineered for SIL 2 and SIL 3 certified process safety applications. It is deployed across the world's most demanding industrial environments — petroleum refining, LNG terminals, chemical processing, nuclear auxiliary systems, and offshore platforms. The FS series operates as a standalone safety controller or in tight integration with Honeywell's Experion PKS distributed control system, providing a unified safety and control architecture that reduces engineering overhead and lifecycle cost.

The Evolution of FS Series Architecture

The FS Safety Manager platform was introduced by Honeywell in the early 2000s as a successor to the FSC (Fail Safe Controller) series, which itself dated to the 1990s Quadrex/Hima technology lineage. The architectural transition from FSC to FS Safety Manager brought a shift from proprietary backplane buses to a more open, Ethernet-capable communication layer, enabling tighter integration with SCADA and DCS layers without sacrificing SIL certification integrity.

Generation 1 (FSC Legacy): Relied on dedicated coaxial backplane communication. Modules were non-hot-swappable in most configurations. Common in installations commissioned between 1995–2005. Many of these systems remain operational under extended lifecycle support agreements, creating sustained demand for obsolete FSC I/O cards.

Generation 2 (FS Safety Manager R100–R130): Introduced the current FS-SC (Safety Controller) and FS-S I/O module family. Hot-swap capability was added for I/O modules. SIL 3 certification was achieved for the CPU and voting logic layers. This generation is the dominant installed base as of 2026.

Generation 3 / Migration Path: Honeywell has positioned the Safety Manager SC (SMSC) as the forward-compatible successor, offering a common engineering environment. Facilities running FS R100–R130 can migrate I/O wiring infrastructure while replacing controller hardware, reducing migration CAPEX by an estimated 30–40% versus a full rip-and-replace.

Compatibility note: FS-series I/O modules are not electrically or firmware-compatible with FSC-series racks without adapter hardware. Procurement teams must verify rack generation before ordering replacement modules.

FS Series Full Catalog & Functionalities (SKU List)

The following SKUs represent the core FS Safety Manager module range. Each entry reflects verified product function based on Honeywell technical documentation and field procurement records.

Controllers & CPUs

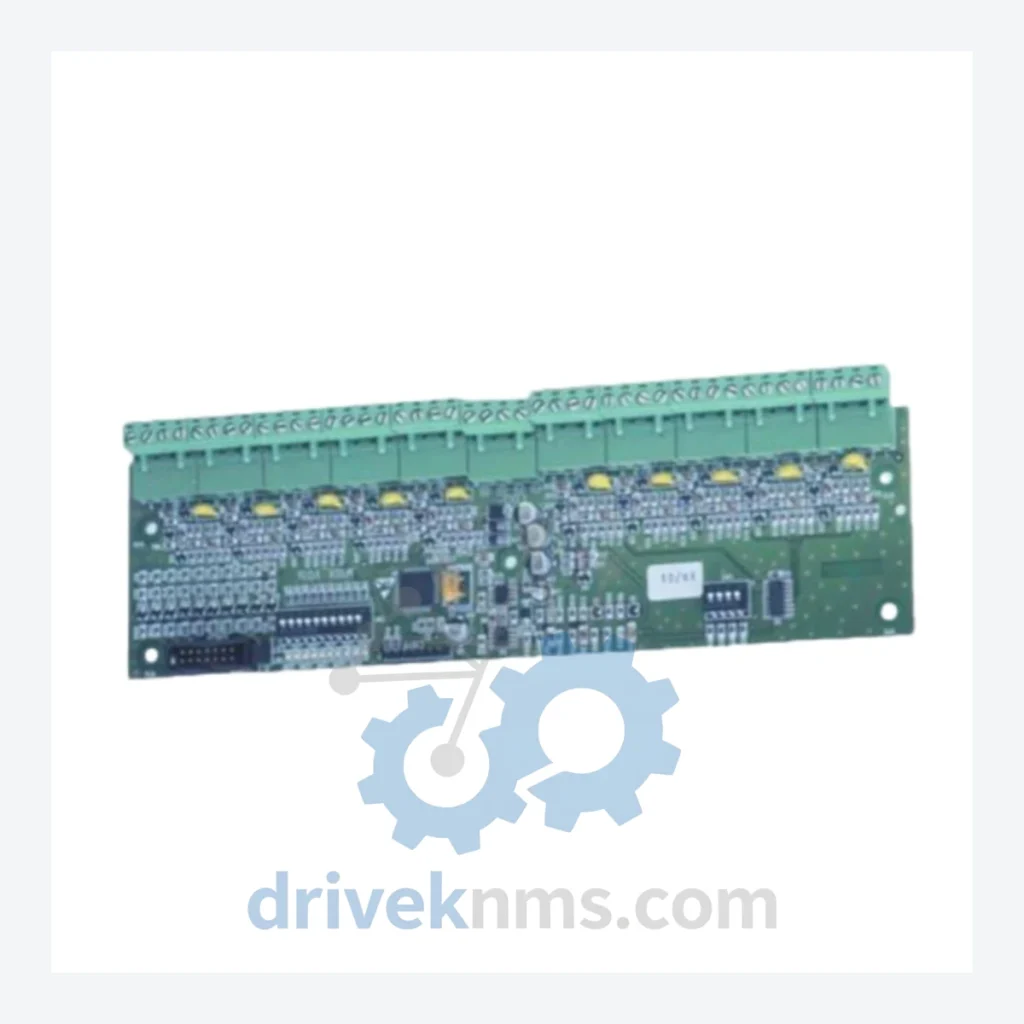

• FS-SCCNTL01: Primary Safety Controller CPU — SIL 3 rated, dual-redundant processing core, Ethernet supervisory port, manages up to 64 I/O modules per chassis.
• FS-SCCNTL02: Enhanced Safety Controller CPU — extended memory, faster scan cycle (<10 ms), supports expanded I/O bus for large-scale SIS architectures.
• FS-SCSIML01: Safety Simulation Module — used for offline logic validation and FAT (Factory Acceptance Testing) without live process connection.

Digital Output (DO) Modules

• FS-SDO0824: 8-channel 24 VDC digital output, solid-state, SIL 2 certified, short-circuit protected, status LED per channel.
• FS-SDO0824H: High-current variant of SDO0824, supports solenoid valve loads up to 2 A per channel, used in ESD valve actuation circuits.
• FS-SDO0848: 8-channel 48 VDC digital output, for legacy relay panel interfaces and older field device compatibility.
• FS-SDO1624: 16-channel 24 VDC digital output, high-density format, reduces chassis slot consumption in large DO-heavy applications.

Digital Input (DI) Modules

• FS-SDI0824: 8-channel 24 VDC digital input, SIL 3 capable in 1oo2 voting configuration, used for pushbutton, switch, and discrete sensor inputs.
• FS-SDI0824D: Diagnostic-enhanced DI module — adds line fault detection (LFD) for open/short circuit monitoring on each input channel.
• FS-SDI1624: 16-channel 24 VDC digital input, high-density, suitable for large ESD logic matrices.

Analog Input (AI) Modules

• FS-SAI0408: 4-channel 4–20 mA analog input, SIL 2 certified, HART pass-through supported, used for pressure transmitter and flow meter inputs.
• FS-SAI0408H: HART-enabled analog input with active HART multiplexer support, enables asset management integration without additional hardware.
• FS-SAI0816: 8-channel analog input, dual-range (4–20 mA / 1–5 V), for mixed-signal field device environments.

Communication & Network Modules

• FS-SCNET01: Safety Network Communication Module — Modbus TCP / Ethernet/IP gateway, bridges FS safety bus to DCS supervisory network.
• FS-SCPBUS01: Process Bus Interface Module — dedicated Experion PKS integration card, enables unified alarm management and historian data transfer.

Power Supply Modules

• FS-SCPSU01: 24 VDC redundant power supply module, 10 A output, hot-swappable, with power-fail relay output for supervisory alarm.
• FS-SCPSU02: High-capacity PSU, 20 A, for fully populated 16-slot chassis with high-density I/O configurations.

Sourcing Hard-to-Find & Obsolete FS Series Parts

DriveKNMS maintains a dedicated inventory of tested FS series modules sourced through verified industrial surplus channels, decommissioned plant asset sales, and authorized secondary market partners. Our sourcing protocol for FS modules includes:

For facilities operating under IEC 61511 lifecycle management obligations, DriveKNMS can provide the documentation package required to satisfy Management of Change (MOC) procedures when installing non-OEM-sourced replacement modules.

Quality Control for the FS Series Range

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

DriveKNMS applies the following test protocol to all FS series modules:

• Bus Communication Load Test: Module is installed in a live FS chassis and subjected to full I/O scan cycles for a minimum of 4 hours. Bus error counters are monitored via the Safety Manager engineering workstation.
• Isolation Resistance Test: All I/O channels are tested for channel-to-channel and channel-to-ground isolation resistance (>100 MΩ at 500 VDC) to detect degraded optocoupler or relay isolation.
• Thermal Cycling: Modules suspected of intermittent faults are subjected to thermal cycling (0°C to 55°C) to expose cold-solder or delamination defects.
• Firmware Audit: Controller and communication modules are read for firmware version and configuration checksum before and after testing to confirm no unintended write operations occurred.
