Honeywell FSC 6582800030 Module: Specs, Compatibility & Availability

Technical Dossier

Product Details And Specifications

Honeywell FSC Series Technical Notes

The Evolution of FSC Architecture

The Honeywell FSC platform originated in the early 1990s as a dedicated hardware-based safety controller, distinct from the TDC 3000 and Experion PKS DCS lines. Early FSC generations used proprietary backplane communication with redundant CPU configurations. The architecture evolved through several major revisions:

FSC Gen 1 (1990s): Standalone rack with dedicated I/O modules, 5V backplane bus, limited diagnostics. FSC Gen 2 / Safety Manager (2000s): Introduced Ethernet-based engineering workstation connectivity, expanded I/O density, and IEC 61511 lifecycle documentation tooling. Safety Manager SC (2015–present): Current-generation platform with SIL 3 capable CPU, cybersecurity hardening, and migration paths from legacy FSC hardware. Compatibility between generations is constrained by backplane revision and firmware version. Modules from the 65828xxxxx and 65829xxxxx numbering ranges are predominantly associated with mid-generation FSC hardware and require careful cross-referencing against rack revision before substitution.

FSC Full Catalog & Functionalities — SKU List (6582800030 Series Context)

The following SKUs represent verified components within the Honeywell FSC / Safety Manager module ecosystem. Each entry reflects a distinct functional role within the safety controller architecture.

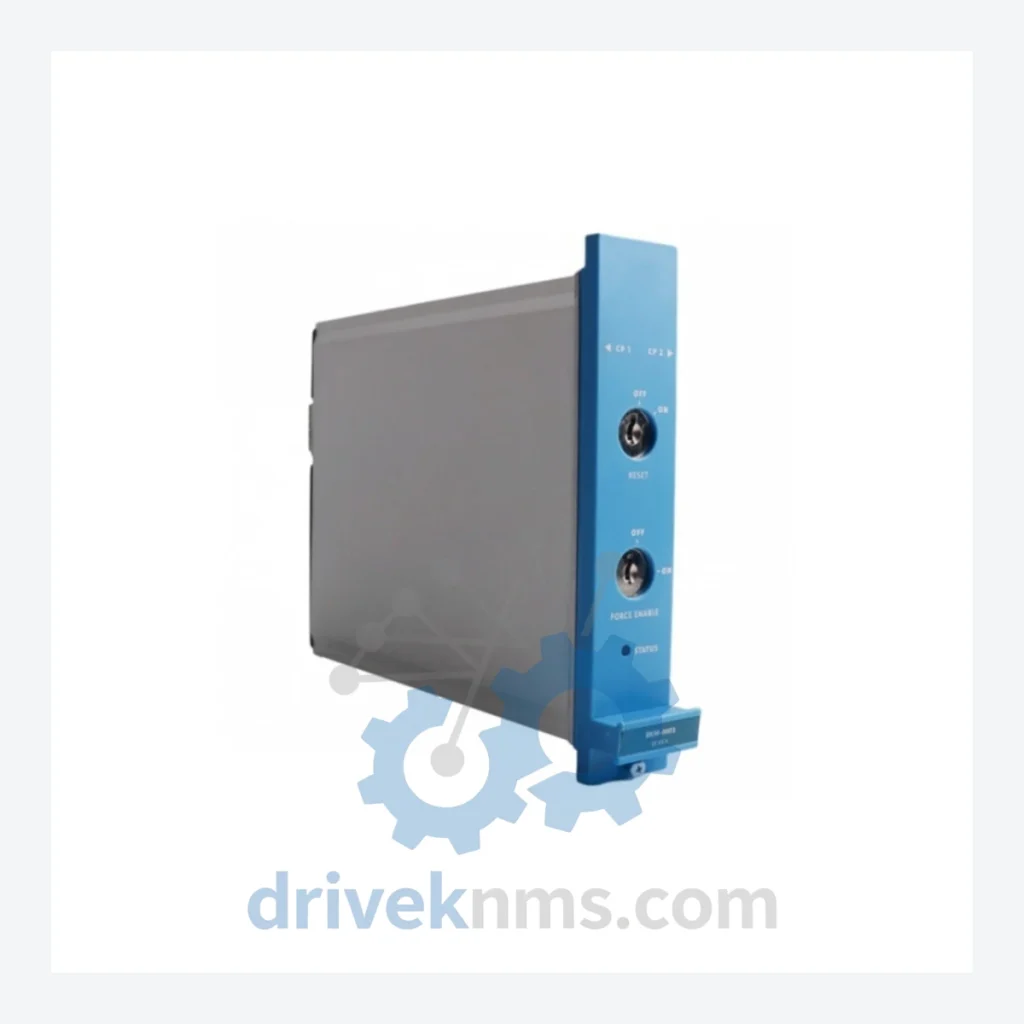

6582800030: FSC functional module, rack-integrated safety logic component
10006/1/1: FSC Central Processing Unit, SIL 2 rated, dual redundant capable
10006/2/1: FSC CPU module, extended memory variant for large I/O configurations
10024/1/1: FSC Digital Input module, 24 VDC, 16-channel, SIL 2
10024/2/1: FSC Digital Output module, relay type, 8-channel, SIL 2
10024/3/1: FSC Analog Input module, 4–20 mA, 8-channel, HART-capable
10024/4/1: FSC Analog Output module, 4–20 mA, 4-channel
10006/3/1: FSC Communication Interface, Modbus RTU / Ethernet gateway
10006/4/1: FSC Power Supply module, 24 VDC input, redundant rail support
10006/5/1: FSC Backplane Bus Terminator, required for single-rack configurations
65828-00030: FSC I/O bus coupler module, backplane interface variant
65829-00010: FSC relay output module, 16-channel, 24 VDC coil
65829-00020: FSC digital input concentrator, 32-channel, grouped commons
65829-00030: FSC analog input signal conditioner, thermocouple/RTD compatible
65829-00040: FSC watchdog and diagnostic module, rack-level fault detection
65829-00050: FSC redundancy switch module, CPU switchover control
900C50-0143-00: Safety Manager SC CPU, SIL 3, Ethernet + serial I/O
900C50-0144-00: Safety Manager SC redundant CPU pair kit
900P01-0001: Safety Manager power supply, 120/240 VAC input
SM-SCU-0001: Safety Manager System Configuration Utility license module

Sourcing Hard-to-Find & Obsolete FSC Parts

The Honeywell FSC platform entered the mature/end-of-active-production phase for many module variants. Honeywell's official last-time-buy windows for legacy FSC hardware have closed for several part numbers in the 65828xxxxx and 65829xxxxx ranges. DriveKNMS maintains a dedicated inventory of tested FSC spare modules to support lifecycle extension programs for facilities that cannot justify a full Safety Manager SC migration within current budget cycles.

Quality Control for the FSC Range

FSC modules present specific test challenges due to their safety-rated backplane communication protocol and internal self-diagnostic architecture. DriveKNMS applies the following verification procedures to all FSC modules including 6582800030:

Visual Inspection: Component-level examination for capacitor degradation, PCB trace corrosion, and connector pin integrity — common failure modes in modules with 10+ years of service. Powered Functional Test: Each module is energized in an FSC-compatible test rack. CPU modules are verified for boot sequence completion and diagnostic LED status. I/O modules are tested for channel-level response using calibrated signal sources. Backplane Communication Verification: Bus coupler and interface modules are tested for correct protocol handshake with a reference CPU module. Firmware Revision Check: Where applicable, firmware version is recorded and disclosed to the buyer prior to shipment. Compatibility with target system firmware is the buyer's responsibility to confirm. Burn-In Period: Selected modules undergo a 24-hour powered soak test to screen for early-life failures before dispatch.
