Honeywell HC900 Series: Comprehensive Module Range and Technical Overview

The Honeywell HC900 Hybrid Controller is a process control platform deployed across global heavy industry sectors including petrochemical refineries, nuclear auxiliary systems, offshore platforms, and specialty chemical plants. Its modular rack-based architecture supports hybrid control strategies combining continuous regulatory control, sequential logic, and batch processing within a single controller chassis. The HC900 is recognized for its deterministic scan cycle, redundancy options, and compatibility with Honeywell's broader DCS ecosystem including Experion PKS integration. Installed base spans multiple decades, making lifecycle parts management a critical operational requirement for plant engineers and maintenance teams worldwide.

The Evolution of HC900 Architecture

The HC900 platform was introduced by Honeywell as a mid-range hybrid controller bridging the gap between standalone PLCs and full DCS installations. Early generations used the C30, C50, and C70 CPU modules with limited I/O slot counts and RS-485-based peer communication. The architecture evolved through successive firmware generations to support Ethernet-based supervisory communication, redundant CPU configurations (C75R), and expanded rack sizes supporting up to 16 I/O slots per chassis. The introduction of the 900 series I/O modules standardized the backplane bus interface, enabling hot-swap capability on select module types. Compatibility between early-generation racks and later I/O modules requires firmware version verification; modules manufactured after 2010 may require controller firmware v4.x or higher for full feature support. The platform is currently in a mature/sustaining lifecycle phase — Honeywell continues to supply replacement modules and firmware updates, but no new architectural generations are planned. Long-term maintenance support is the primary use case for sourcing HC900 components today.

HC900 Full Catalog & Functionalities (SKU List)

The following SKUs represent the core HC900 module range, organized by functional category. All models listed are verified HC900-compatible components.

Digital Input (DI) Modules

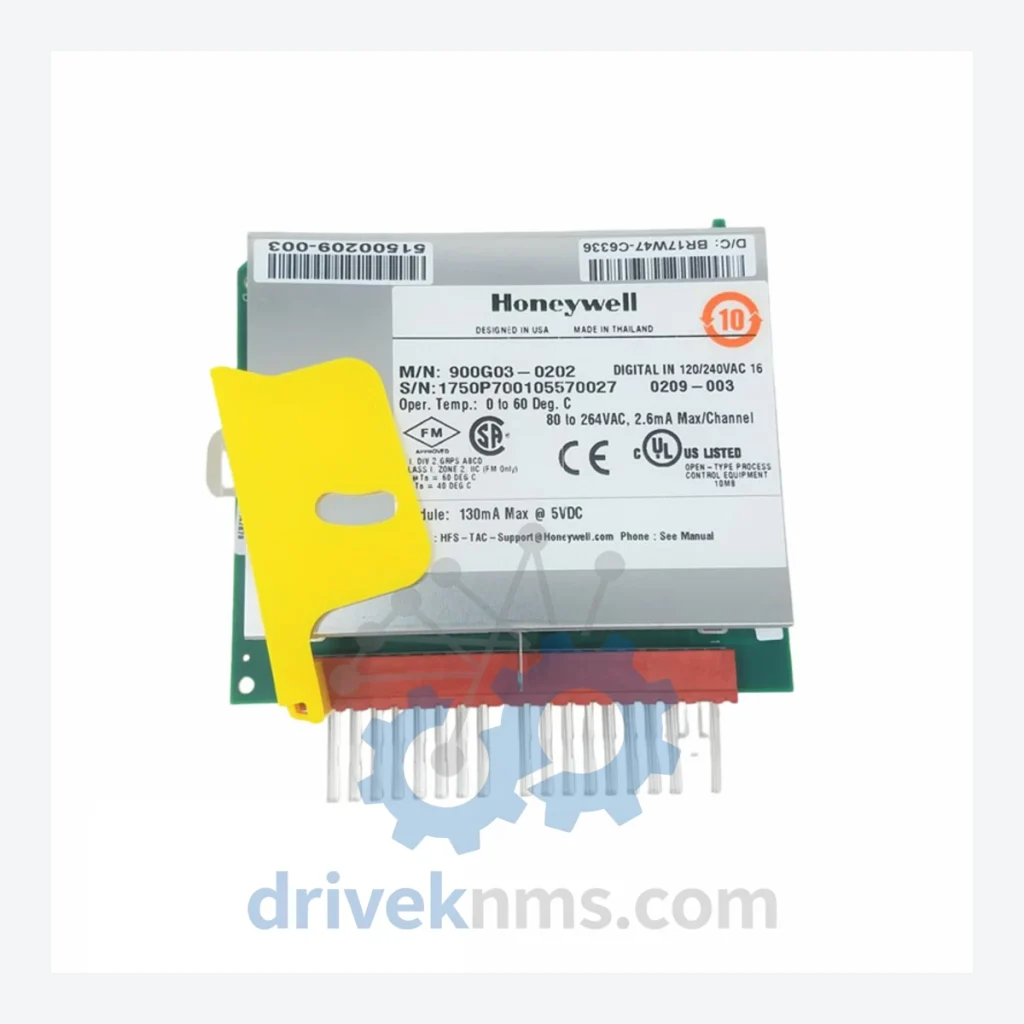

• 900G04-0101: 120 VAC digital input module, 16-channel, isolated, rack-mount
• 900G32-0101: 24 VDC digital input module, 32-channel, high-density I/O
• 900G16-0101: 24 VDC digital input module, 16-channel, standard density

Digital Output (DO) Modules

• 900H16-0101: 24 VDC digital output module, 16-channel, sourcing type
• 900H32-0101: 24 VDC digital output module, 32-channel, high-density
• 900H08-0101: Relay output module, 8-channel, SPDT contacts, 2A per channel

Analog Input (AI) Modules

• 900A16-0101: Analog input module, 16-channel, 4–20 mA / 1–5 V, 12-bit resolution
• 900A08-0101: Analog input module, 8-channel, thermocouple/RTD/mV universal input
• 900A16H-0101: High-speed analog input module, 16-channel, 4–20 mA

Analog Output (AO) Modules

• 900B08-0101: Analog output module, 8-channel, 4–20 mA, 12-bit resolution
• 900B16-0101: Analog output module, 16-channel, 4–20 mA, loop-powered

CPU / Controller Modules

• 900C30-0143-00: HC900 C30 controller, 30 I/O slots, single Ethernet port
• 900C50-0143-00: HC900 C50 controller, 50 I/O slots, dual Ethernet
• 900C70-0143-00: HC900 C70 controller, 70 I/O slots, expanded memory
• 900C75-0143-00: HC900 C75 redundant controller module, primary unit

Communication & Network Modules

• 900RTC-0001: Remote terminal controller, Modbus RTU/TCP gateway module
• 900EIM-0001: Ethernet interface module, 10/100 Mbps, OPC-DA compatible

Power Supply Modules

• 900P01-0001: HC900 rack power supply, 24 VDC output, 40W capacity
• 900P02-0001: Redundant power supply module, hot-swap capable

Sourcing Hard-to-Find & Obsolete HC900 Parts

DriveKNMS maintains a dedicated inventory program for HC900 components that have reached end-of-production or extended lead-time status through standard distribution channels. For plant operators running HC900 systems installed prior to 2010, sourcing replacement I/O modules, CPU boards, and backplane assemblies through OEM channels is increasingly constrained. DriveKNMS sources verified surplus and refurbished HC900 modules from decommissioned plant assets, tested against original Honeywell factory specifications. All units are inspected for backplane connector integrity, firmware version compatibility, and channel-level functional performance prior to dispatch. Customers requiring long-term maintenance contracts or blanket purchase orders for HC900 spares are supported with dedicated account management. Emergency same-day quotation is available for critical plant shutdown scenarios.

Quality Control for the HC900 Range

HC900 modules present specific test challenges due to their backplane bus communication protocol and multi-channel I/O architecture. DriveKNMS applies a structured test protocol for each module type: digital I/O modules are tested channel-by-channel for switching accuracy, isolation resistance (>100 MΩ between channels), and response time under rated load. Analog modules undergo calibration verification across the full 4–20 mA range using traceable reference instruments, with linearity error checked at 0%, 25%, 50%, 75%, and 100% of span. CPU modules are powered in a live HC900 rack, firmware version confirmed, and communication integrity verified over both Ethernet ports under simulated scan load. All modules are tested at rated operating temperature (0–60°C) and humidity (10–90% RH non-condensing) before being cleared for shipment. Test records are retained and available upon request.
