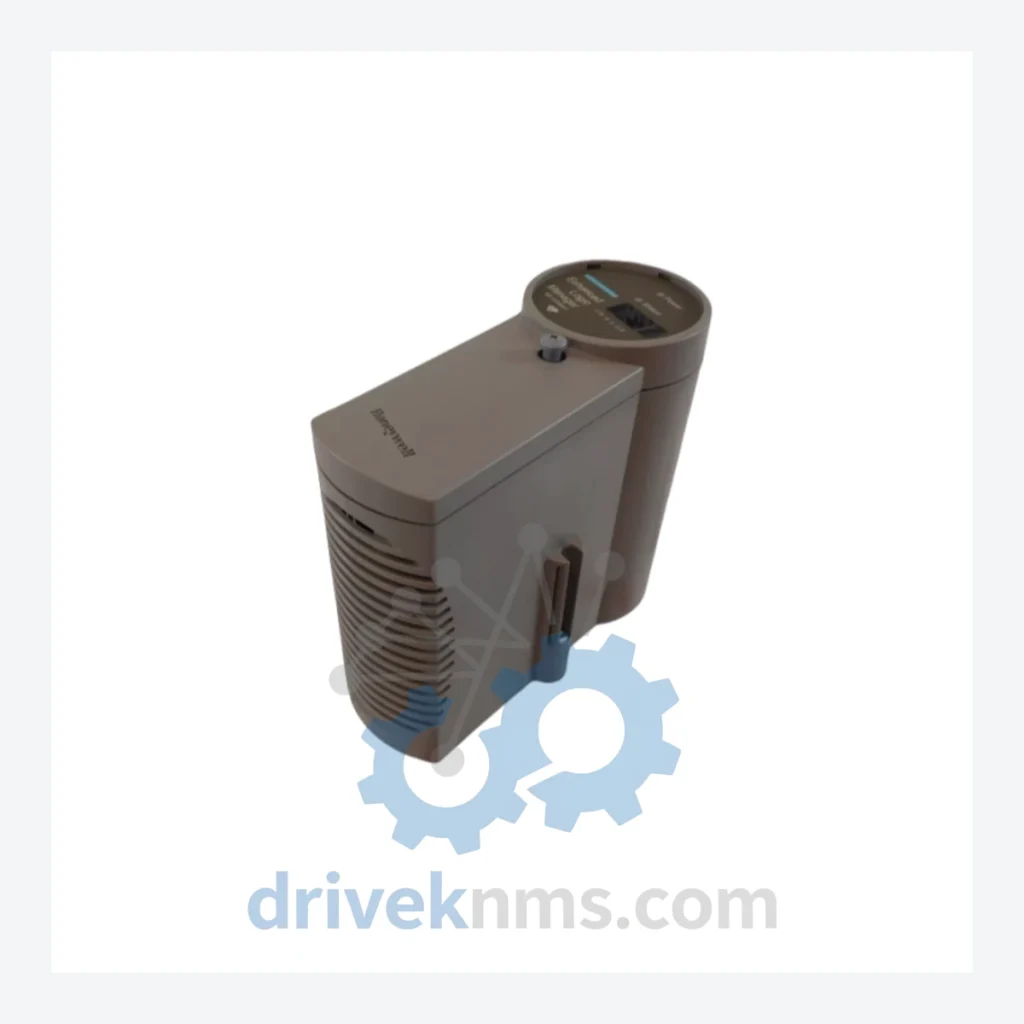

Honeywell MC-ELMMS1 Logic Manager Module – Obsolete TDC 3000 Spare Part

Technical Dossier

Product Details And Specifications

Honeywell MC-ELMMS1 Logic Manager Module – Obsolete TDC 3000 Spare Part

Technical Specifications

Note: Electrical parameters not independently verified. Specifications are based on published Honeywell documentation. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The MC-ELMMS1 Enhanced Logic Manager Module sits at the core of the TDC 3000 control architecture. It handles the execution of control strategies and logic sequences that govern critical process loops. When this module fails and no replacement is available, the options narrow quickly: run degraded, bypass safety interlocks (unacceptable), or initiate an emergency upgrade under the worst possible commercial conditions.

How to extend your TDC 3000 asset life by 5–10 years:

Condition & Reliability Assurance

Every MC-ELMMS1 unit supplied by DriveKNMS passes a structured 5-step quality process before dispatch:

1. Visual and mechanical inspection: Pin corrosion, PCB delamination, and connector wear are checked against acceptance criteria. Units with visible corrosion on edge connectors are rejected.
2. Electrolytic capacitor assessment: Capacitors in modules of this age are a known failure mode. Each unit is assessed for bulging, leakage, and ESR deviation. Units with suspect capacitors are either recapped or rejected.
3. Firmware version verification: The firmware revision is recorded and disclosed to the buyer prior to shipment. No firmware is modified.
4. Functional bench test: Where test fixtures are available, modules are powered and exercised through basic functional checks.
5. Packaging for long-term storage: Units are packed in anti-static bags with desiccant, suitable for shelf storage of 12–24 months without degradation.

Key Features for System Maintenance

• Drop-in replacement: The MC-ELMMS1 is a direct slot-for-slot replacement in compatible TDC 3000 cabinets. No hardware modification to the cabinet or backplane is required.
• No reprogramming required: Control strategies reside in the system database, not in the module itself. Swapping the module does not require re-entry or re-validation of control logic under normal replacement conditions.
• Avoids engineering re-scoping: Unlike a platform migration, a like-for-like module replacement keeps the existing control architecture intact. There is no requirement to engage a systems integrator, remap I/O, or retrain operators.
• Preserves existing safety certifications: Plants operating under functional safety standards benefit from maintaining the validated hardware configuration. Introducing new-platform hardware triggers re-validation obligations that a spare-part replacement does not.
