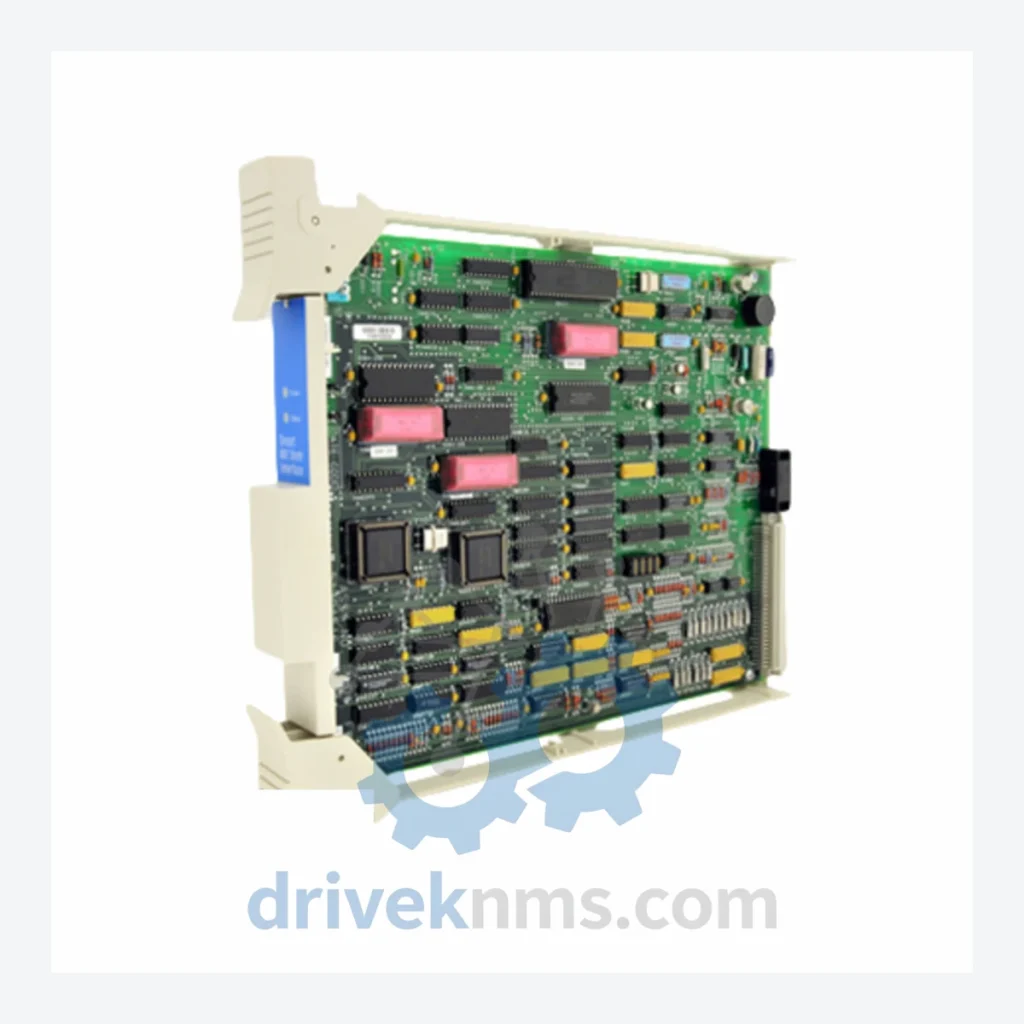

Honeywell MC-PSTX Series Modules MC-PSTX03 51304516-250

Technical Dossier

Product Details And Specifications

Honeywell MC-PSTX Series Technical Notes

The Honeywell MC-PSTX series is a family of Smart Transmitter Interface modules deployed within the Honeywell Experion PKS (Process Knowledge System) and legacy TDC 3000 distributed control architectures. These modules serve as the primary signal conditioning and communication bridge between field-mounted smart transmitters (HART, DE protocol) and the Honeywell C200/C300 controller backplane. Installed across petrochemical complexes, nuclear power generation facilities, offshore platforms, and large-scale refinery operations globally, the MC-PSTX series represents a critical I/O layer in continuous process environments where signal integrity and loop availability are non-negotiable. The series supports both single-ended and differential input configurations, with hardware variants covering multivariable, pressure, temperature, and flow transmitter interfaces. Long production runs and widespread installed base make this series a high-demand target for lifecycle extension and spare parts procurement.

The Evolution of MC-PSTX Architecture

The MC-PSTX lineage traces to Honeywell's Series C I/O platform introduced in the mid-1990s as part of the TDC 3000 expansion into field device integration. Early variants used proprietary DE (Digital Enhanced) protocol to communicate with Honeywell ST 3000 smart transmitters, providing two-way digital communication over standard 4–20 mA loops. As HART became the dominant field protocol through the early 2000s, Honeywell introduced HART-compatible variants within the same physical form factor, allowing backward-compatible slot replacement in existing Series C I/O cabinets.

With the launch of Experion PKS in 2002 and the subsequent C200/C300 controller generations, the MC-PSTX modules were re-qualified for use in the new EUCN (Experion Universal Control Network) backplane environment. The 51304516-xxx suffix numbering scheme denotes hardware revision levels and firmware compatibility milestones. Suffix -250 specifically identifies a multivariable interface variant with enhanced diagnostic register support. By 2015, Honeywell had transitioned primary development to the IOLIM (I/O Link Interface Module) and Series 8 I/O platform, placing the MC-PSTX series in a sustained-support, no-new-development lifecycle phase. Plants running TDC 3000 or first-generation Experion PKS installations continue to depend on MC-PSTX modules for decades-long operational continuity, making aftermarket sourcing essential.

MC-PSTX Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced models within the Honeywell MC-PSTX and closely related Smart Transmitter Interface family. Modules are categorized by primary function.

Smart Transmitter Interface — Multivariable

• MC-PSTX03 / 51304516-250: Multivariable smart transmitter interface, HART/DE, Series C I/O, 8-channel
• MC-PSTX02 / 51304516-200: Dual-variable smart transmitter interface, DE protocol, TDC 3000 backplane compatible
• MC-PSTX01 / 51304516-150: Single-variable smart transmitter interface, 4–20 mA with HART pass-through

Smart Transmitter Interface — Pressure / Differential Pressure

• MC-PSIM02 / 51304453-175: Pressure input module, isolated, 4–20 mA, 16-channel, Series C
• MC-PSIM03 / 51304453-250: Differential pressure input module, HART-enabled, 8-channel
• MC-PSIM04 / 51304453-300: High-density pressure interface, 32-channel, Experion PKS C300

Analog Input Modules

• MC-PAIH02 / 51304441-175: High-level analog input, 16-channel, 4–20 mA, isolated per channel
• MC-PAIH03 / 51304441-250: High-level analog input, HART multiplexer support, 16-channel
• MC-PAIL02 / 51304442-175: Low-level analog input, thermocouple/RTD, 16-channel
• MC-PAIL03 / 51304442-250: Low-level analog input, enhanced cold junction compensation, 16-channel

Analog Output Modules

• MC-PAOX02 / 51304443-175: Analog output, 4–20 mA, 8-channel, HART write-capable
• MC-PAOX03 / 51304443-250: Analog output, high-drive, 16-channel, loop-powered diagnostics

Digital Input / Output Modules

• MC-PDIX02 / 51304444-175: Digital input, 24 VDC, 32-channel, Series C backplane
• MC-PDOX02 / 51304445-175: Digital output, 24 VDC sourcing, 16-channel, fused per group
• MC-PDOX03 / 51304445-250: Digital output, relay-isolated, 8-channel, 120 VAC rated

Communication & Interface Modules

• MC-TSTX01 / 51304552-100: HART interface multiplexer, 16-loop, RS-485 upstream port
• MC-TSTX02 / 51304552-175: Enhanced HART multiplexer, 32-loop, Modbus RTU gateway function

Quality Control for the MC-PSTX Range

The MC-PSTX series presents specific test challenges due to its integrated backplane bus interface and multi-protocol signal conditioning circuitry. DriveKNMS applies a structured verification protocol to each unit prior to dispatch:

Each unit is assigned a unique test record number retained for 7 years, available to customers on request for maintenance documentation compliance.
