Honeywell MC-TAMT03 Thermocouple Multiplexer Module – Obsolete TDC 3000 / TPS Spare Part

Technical Dossier

Product Details And Specifications

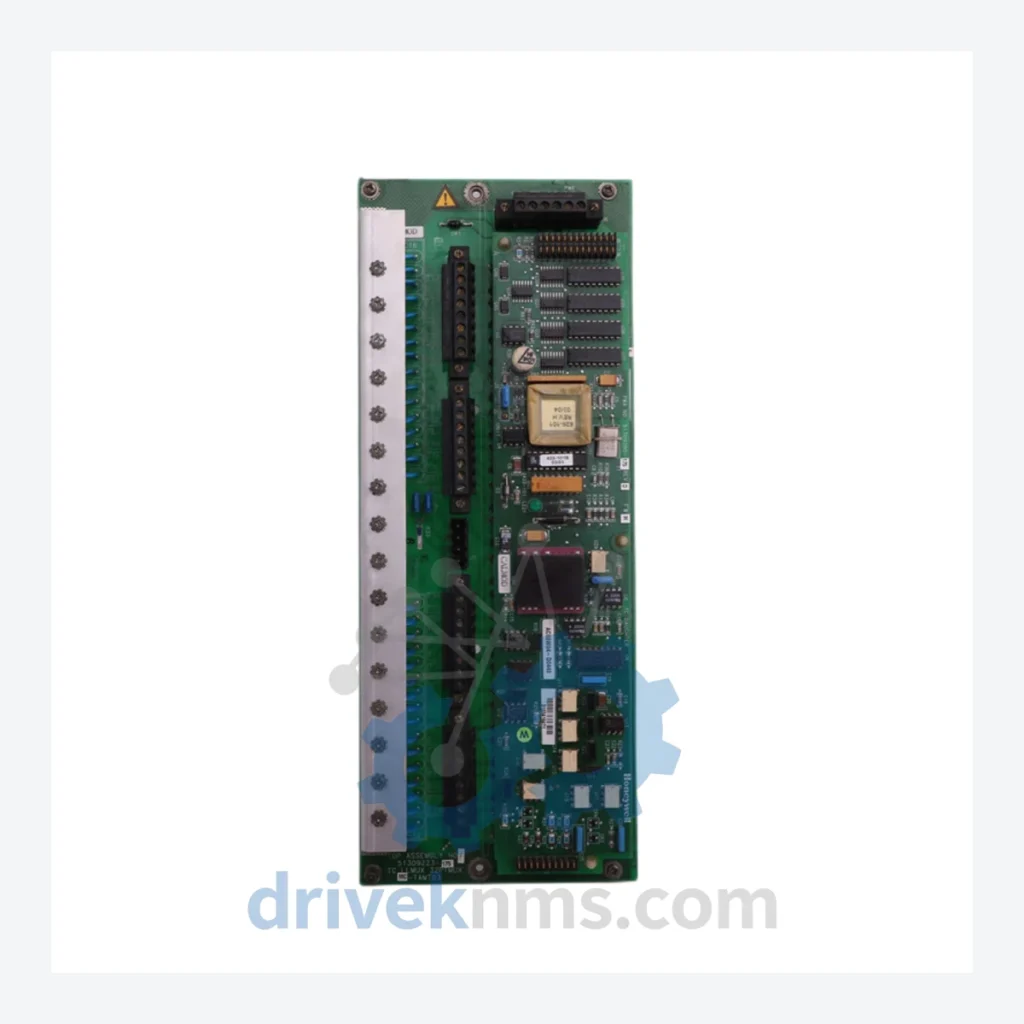

Honeywell MC-TAMT03 51309223-175 Thermocouple Multiplexer Module – Obsolete TDC 3000 / TPS Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Solving the Discontinued Hardware Crisis

The Honeywell TDC 3000 and TPS platforms were deployed extensively across refining, petrochemical, power generation, and specialty chemical facilities from the 1980s through the early 2000s. Many of these systems remain in active production service today — not because operators are unaware of their age, but because the cost and operational risk of replacement outweigh the cost of maintenance, provided spare parts remain available.

The MC-TAMT03 thermocouple multiplexer sits at a critical junction in the signal acquisition chain. It aggregates thermocouple inputs from field instruments and conditions them for processing by the HPM or APM controller. A failure at this node does not merely affect one measurement point — it can take down an entire group of temperature loops simultaneously, triggering process upsets, safety system responses, or unplanned shutdowns.

Facilities that have maintained a disciplined spare parts inventory for their TDC 3000 infrastructure have, in documented cases, extended the productive life of these systems by 8 to 12 years beyond the original vendor end-of-life date. The arithmetic is straightforward: a spare module at current market value represents a fraction of one day of lost production at a mid-scale refinery or chemical plant. The risk of operating without a spare is not theoretical — it is a scheduled liability.

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step inspection protocol to all discontinued modules before they are offered for sale. This process is designed specifically for the failure modes common to hardware of this age and design generation:

• Step 1 – Electrolytic Capacitor Assessment: Electrolytic capacitors are the primary age-related failure point in modules of this era. Each unit is inspected for capacitor bulging, electrolyte leakage, and ESR deviation. Units with degraded capacitors are either recapped with specification-matched components or removed from inventory.
• Step 2 – Firmware Version Verification: The installed firmware revision is confirmed against known-compatible versions for TDC 3000 / TPS HPM and APM subsystems. Modules with incompatible or corrupted firmware are not offered for sale.
• Step 3 – Pin and Connector Inspection: All edge connectors and backplane pins are examined under magnification for oxidation, corrosion, mechanical deformation, and contact resistance. Affected contacts are treated or the unit is rejected.
• Step 4 – Functional Bench Test: Where test infrastructure permits, modules are powered and exercised through their primary signal conditioning functions. Results are logged.
• Step 5 – Packaging and ESD Protection: Units are packaged in anti-static bags with desiccant and rigid protective packaging suitable for international freight.

Key Features for System Maintenance

• Drop-in replacement: The MC-TAMT03 installs directly into the existing HPM/APM card slot with no hardware modification required.
• No reprogramming required: Module configuration is held in the DCS database, not on the card itself. Replacement does not require re-engineering of control strategies or loop parameters.
• Avoids engineering reconstruction costs: Substituting a compatible spare eliminates the need for I/O remapping, loop checkout, and the associated engineering labor that accompanies any hardware platform change.
• Preserves operator familiarity: Maintaining the existing DCS platform means operators continue working within a known environment, eliminating retraining risk during the transition period.
• Supports long-term spares strategy: Facilities managing TDC 3000 / TPS assets should consider holding a minimum of two MC-TAMT03 units in bonded stores. The window for sourcing this module at reasonable cost is narrowing as global surplus inventory is consumed.

Should I buy more than one unit?
For any facility operating more than one HPM or APM cabinet with thermocouple I/O, holding a minimum of two MC-TAMT03 spares is a defensible maintenance position. Global availability of this module is finite and declining. Procurement decisions deferred 12 to 18 months from now will face a materially different supply environment.

Can this module be used in a TPS system as well as TDC 3000?
The TPS platform is the direct successor architecture to TDC 3000 and shares the HPM/APM hardware family. Compatibility should be confirmed against your specific system configuration and firmware revision before installation.
