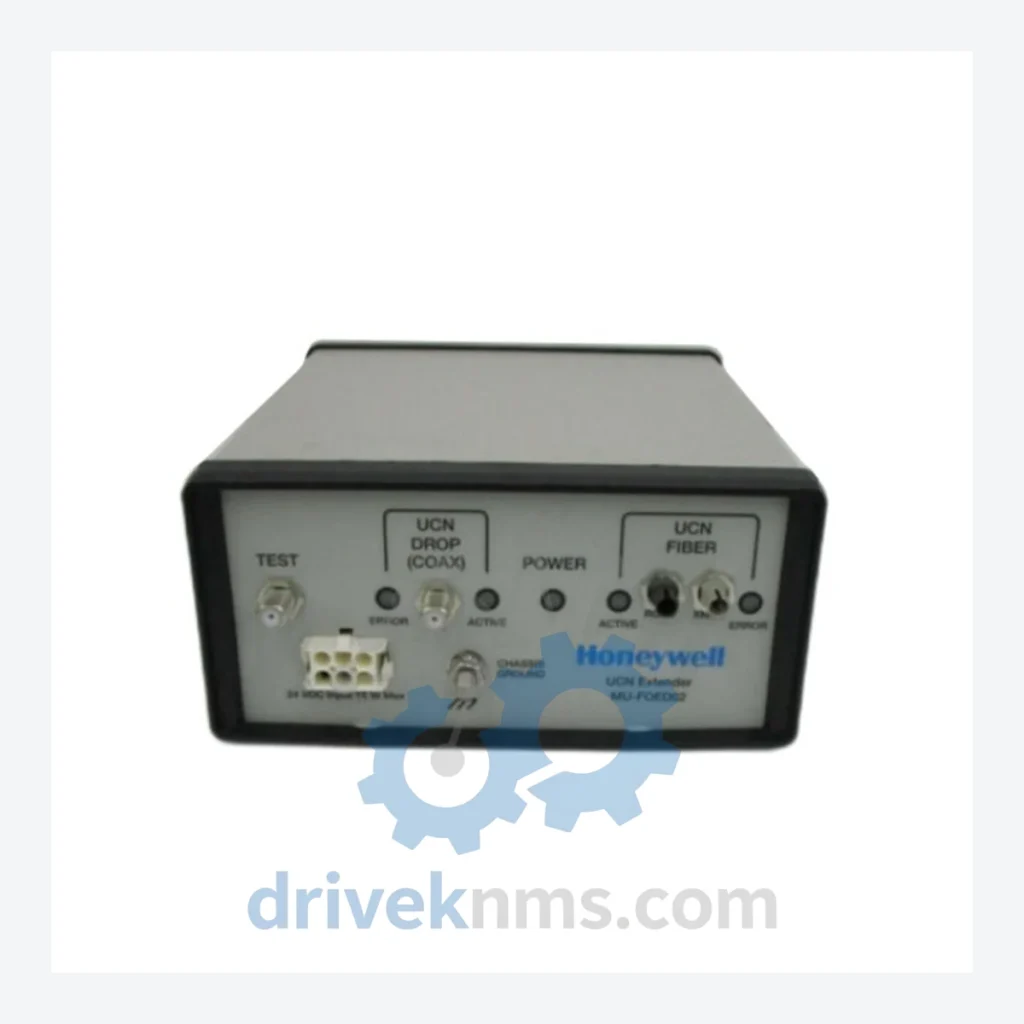

Honeywell TDC 3000 UCN Modules MU-FOED02 51197564-200 UCN Extender Fiber Optic Signal

Technical Dossier

Product Details And Specifications

Honeywell TDC 3000 Series Technical Notes

The Honeywell TDC 3000 (Total Distributed Control) platform is one of the most widely deployed Distributed Control Systems (DCS) in global heavy industry. Installed across petrochemical refineries, nuclear power stations, offshore platforms, pulp and paper mills, and large-scale chemical processing facilities, the TDC 3000 architecture has maintained a continuous operational presence since its commercial introduction in the early 1980s. Its Universal Control Network (UCN) backbone — a deterministic, token-passing coaxial and fiber optic network — remains the communication spine for thousands of active process control loops worldwide. The MU-FOED02 51197564-200 is a UCN Extender Fiber Optic Signal module that extends UCN segment reach using fiber optic media, critical for electrically noisy or geographically distributed plant environments.

The Evolution of TDC 3000 UCN Architecture

The TDC 3000 platform was introduced by Honeywell in 1983 as a successor to the TDC 2000, transitioning from a Highway data link to the Universal Control Network (UCN). The UCN operates at 5 Mbps using a token-passing protocol over coaxial cable, with fiber optic extender modules — such as the MU-FOED02 — enabling segment bridging across distances exceeding standard coaxial limits or through environments with high electromagnetic interference.

Over successive hardware generations, Honeywell introduced the Local Control Network (LCN) as the supervisory layer above the UCN, connecting High-Performance Process Managers (HPM), Advanced Process Managers (APM), and Application Modules (AM) to operator consoles (US, GUS, UxS). The platform evolved through the following architectural milestones:

• TDC 3000 Basic (1983–1988): Original UCN coaxial topology, PM and APM modules, Highway-compatible gateways.
• TDC 3000X (1988–1995): Expanded LCN node count, introduction of HPM, fiber optic UCN extenders standardized.
• TDC 3000 with Experion Migration Path (2000s–present): Honeywell introduced the Experion PKS platform as the forward migration target, while maintaining TDC 3000 hardware support under long-term lifecycle agreements. Many sites continue to operate TDC 3000 UCN hardware in parallel with Experion supervisory layers.

Compatibility constraints are significant: UCN modules are not hot-swappable across all firmware revisions, and fiber optic extender pairs (transmitter/receiver) must be matched by part number suffix to ensure signal integrity. The 51197564-200 suffix designates a specific hardware revision of the MU-FOED02 that must be verified against the installed UCN segment configuration before replacement.

TDC 3000 Full Catalog & Functionalities (SKU List)

The following catalog covers verified TDC 3000 UCN and LCN module part numbers organized by functional category. All SKUs listed are genuine Honeywell part numbers documented in TDC 3000 hardware reference literature.

UCN Fiber Optic Extenders & Network Infrastructure

• MU-FOED02 51197564-200: UCN fiber optic extender, signal extension module for coax-to-fiber UCN bridging.
• MU-FOET02 51197565-200: UCN fiber optic extender transmitter unit, paired with MU-FOED02 receiver.
• MU-NIIM02 51304485-150: UCN Network Interface & Isolation Module, coaxial segment isolation.
• MU-TAIH02 51304453-150: UCN tap/access interface, coaxial network physical layer connection.

High-Performance Process Manager (HPM) — I/O Modules

• MU-GAIX12 51304453-175: Analog Input module, 16-channel, 4–20 mA HART-compatible.
• MU-GAOX12 51304454-175: Analog Output module, 8-channel, 4–20 mA isolated outputs.
• MU-GDIX12 51304455-150: Digital Input module, 32-channel, 24 VDC discrete inputs.
• MU-GDOX12 51304456-150: Digital Output module, 16-channel, relay and solid-state outputs.
• MU-GPIM12 51304457-150: Pulse Input module, high-speed counter/frequency measurement.

Advanced Process Manager (APM) — Controller & CPU Modules

• MC-PAOX22 51304362-175: APM Analog Output card, 8-channel, field-side isolated.
• MC-PAIH02 51304363-150: APM Analog Input card, 16-channel, HART pass-through.
• MC-PDIX02 51304364-150: APM Digital Input card, 32-channel, 24 VDC.
• MC-PDOX02 51304365-150: APM Digital Output card, 16-channel, relay output.

LCN Communication & Application Modules

• 51401288-100: LCN Node Interface Module (NIM), primary LCN coaxial network node card.
• 51401289-100: LCN Redundant NIM, secondary node interface for fault-tolerant LCN segments.
• 51402497-100: Application Module (AM) processor board, LCN-resident control application execution.
• 51402498-100: History Module (HM) storage interface, process data archiving on LCN.
• 51401296-100: Gateway Module (GW), UCN-to-LCN protocol bridge, mandatory for HPM/APM integration.

Power Supply Modules

• 51196693-100: HPM/APM cabinet power supply, 24 VDC regulated, redundancy-capable.
• 51196694-100: Redundant power supply module, hot-standby switchover for HPM cabinets.

Quality Control for the TDC 3000 Range

TDC 3000 modules present specific test challenges due to their proprietary UCN token-passing protocol and LCN coaxial bus architecture. DriveKNMS applies the following test procedures to all TDC 3000 inventory prior to shipment:

• Visual & Physical Inspection: PCB examination for corrosion, capacitor degradation, connector pin integrity, and backplane edge connector wear — common failure modes in modules with 15–30 years of service.
• Power-On Functional Test: Each module is energized in a controlled bench environment using period-correct TDC 3000 chassis hardware. LED status indicators, self-diagnostic outputs, and communication handshake signals are verified.
• UCN Segment Simulation (Fiber Optic Extenders): MU-FOED02 and paired transmitter units are tested on a live UCN segment simulator. Optical power budget, signal attenuation, and token-pass timing are measured against Honeywell specification thresholds.
• I/O Channel Verification: For analog and digital I/O modules, each channel is individually stimulated and measured. Analog accuracy is verified to ±0.1% of span; digital channel isolation resistance is tested at rated voltage.
• Burn-In Cycle: Selected modules undergo a 48-hour powered burn-in cycle to screen for early-life component failures before dispatch review.
