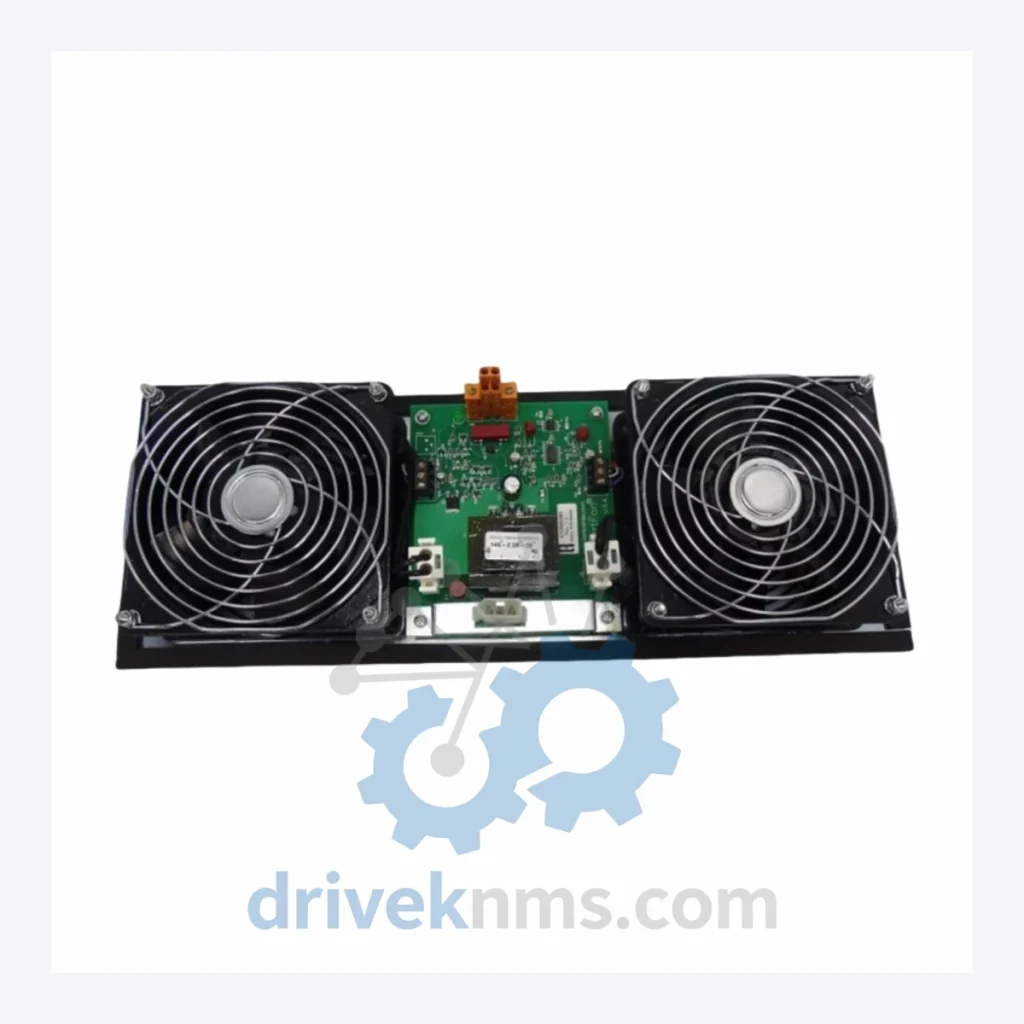

Honeywell TDC 3000 / TPS Modules – 6582800024

Technical Dossier

Product Details And Specifications

Honeywell TDC 3000 / TPS Series Technical Notes

The Honeywell TDC 3000 (Total Distributed Control) and its successor platform TotalPlant Solution (TPS) represent one of the most widely deployed Distributed Control System (DCS) architectures in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and large-scale chemical processing facilities, the TDC 3000/TPS platform has maintained a dominant installed base since its commercial introduction in 1975. Its modular backplane architecture, deterministic control execution, and redundant highway communications have made it the reference standard for continuous process control in safety-critical environments. Facilities operating TDC 3000 and TPS hardware represent decades of capital investment, and the demand for verified spare parts — including the Honeywell 6582800024 — remains active across the full lifecycle of these installations.

The Evolution of TDC 3000 / TPS Architecture

The TDC 3000 platform was introduced by Honeywell in 1975 as the industry's first commercially viable DCS. The architecture evolved through several distinct generations. The original TDC 3000 used a Local Control Network (LCN) and Universal Control Network (UCN) as its primary communication highways, operating at 5 Mbps and 5 Mbps respectively over coaxial cable. The Basic Controller (BC) and Advanced Process Manager (APM) formed the core control execution layer in this era.

In the late 1980s and through the 1990s, Honeywell introduced the TotalPlant Solution (TPS) rebranding, which extended the platform with enhanced operator stations (GUS — Global User Station), the Application Module (AM), and the Hiway Gateway (HG) for legacy integration. The LCN was upgraded to support fiber-optic cabling, and the UCN was extended to accommodate the High-Performance Process Manager (HPM), which became the dominant controller module for new TPS installations.

By the 2000s, Honeywell introduced Experion PKS as the strategic successor to TPS, offering OPC-based integration, Windows-based operator stations, and Ethernet-based control networks. However, the installed base of TDC 3000 and TPS hardware remained in service at thousands of facilities globally, creating a sustained demand for original spare parts, tested replacements, and lifecycle extension services. Compatibility between TDC 3000 and TPS modules is version-dependent and backplane-specific; substitution requires careful cross-referencing of firmware revisions and slot assignments.

TDC 3000 / TPS Full Catalog & Functionalities (SKU List)

The following SKUs represent verified components within the Honeywell TDC 3000 and TPS platform. Each entry reflects a distinct functional role within the system architecture.

6582800024: TPS/TDC 3000 module assembly; primary spare for backplane-integrated control functions.
51304485-100: Advanced Process Manager (APM) — primary process control execution module for UCN-connected loops.
51304485-150: APM variant with extended memory allocation for large loop count configurations.
51304485-200: APM with dual-redundancy support; used in safety-critical continuous process applications.
51401469-100: High-Performance Process Manager (HPM) — successor to APM; supports up to 40 IOM slots per chassis.
51401469-200: HPM redundant controller module; paired with primary HPM for bumpless transfer on fault.
51304516-100: Analog Input Module (AIM) — 16-channel, 4–20 mA input, HART-compatible, for HPM chassis.
51304516-200: AIM with extended diagnostics; supports open-wire and short-circuit detection per channel.
51304518-100: Analog Output Module (AOM) — 8-channel, 4–20 mA output, for HPM and APM I/O subsystems.
51304519-100: Digital Input Module (DIM) — 32-channel, 24 VDC discrete input, for HPM chassis.
51304520-100: Digital Output Module (DOM) — 16-channel, 24 VDC discrete output with relay isolation option.
51304453-100: LCN Interface Module — provides Local Control Network connectivity for TPS operator and application nodes.
51304453-200: LCN Interface Module, fiber-optic variant; used in extended-distance LCN segment configurations.
51401196-100: UCN Interface Module — Universal Control Network adapter for APM and HPM controller nodes.
51304443-100: Power Supply Module (PSM) — 24 VDC regulated output for TDC 3000 I/O chassis; 20A capacity.
51304443-200: PSM redundant variant; hot-swappable with automatic load transfer on primary failure.
51304430-100: Hiway Gateway (HG) — bridges TDC 3000 Data Hiway to LCN for legacy system integration.
51304430-200: HG with dual-port configuration; supports simultaneous connection to two Data Hiway segments.
51401584-100: Application Module (AM) — LCN-resident node for advanced calculations, historian, and batch sequencing.
51401584-200: AM with expanded RAM; supports larger application databases and extended trend archiving.

Sourcing Hard-to-Find & Obsolete TDC 3000 / TPS Parts

The TDC 3000 and TPS platforms are classified by Honeywell as mature/end-of-life product lines. Honeywell's official support for original TDC 3000 hardware has been progressively reduced, with factory repair services and new-manufacture spare parts no longer available for the majority of the catalog. This creates a structural supply gap for facilities that cannot justify a full migration to Experion PKS within their current capital planning cycle.

Quality Control for the TDC 3000 / TPS Range

TDC 3000 and TPS modules present specific test challenges due to their proprietary backplane bus protocols, LCN/UCN communication stacks, and age-related component degradation patterns. DriveKNMS applies a structured test protocol to all units in this product family.

Each module undergoes visual inspection for PCB corrosion, capacitor swelling, and connector pin integrity. Functional testing is performed using dedicated TDC 3000 and TPS test chassis that replicate the original backplane electrical environment. For communication modules (LCN Interface, UCN Interface, Hiway Gateway), protocol-level traffic verification is performed to confirm correct node addressing and message acknowledgment behavior. Analog I/O modules are calibrated against NIST-traceable references to verify channel accuracy within original factory specifications. Power supply modules are load-tested at 100% rated capacity for a minimum burn-in period before release. All tested units are assigned a unique test record number and shipped with a functional test certificate.
