Honeywell TDC 3000 UCN Modules: 51304754-176 51307687-176 High Level Analog Input —

Technical Dossier

Product Details And Specifications

Honeywell TDC 3000 UCN Series: Comprehensive Module Range and Technical Overview

The Honeywell TDC 3000 (Total Distributed Control) platform is one of the most widely deployed Distributed Control Systems (DCS) in global heavy industry. Installed across petrochemical complexes, nuclear power stations, crude oil refineries, pulp and paper mills, and large-scale chemical processing facilities, the TDC 3000 architecture has maintained operational continuity at thousands of sites since its commercial introduction in the 1970s. The UCN (Universal Control Network) subsystem forms the high-speed deterministic backbone of the TDC 3000 environment, interconnecting process controllers, I/O modules, and operator stations at data rates that satisfy the real-time demands of continuous process control. Modules such as the 51304754-176 and its associated assembly 51307687-176 — both classified as UCN High Level Analog Input cards — represent the field-interface layer of this architecture, converting 4–20 mA and voltage-range process signals into digitized values for the control network.

The Evolution of TDC 3000 UCN Architecture

The TDC 3000 platform evolved through three distinct architectural generations. The original TDC 2000 (1975) introduced distributed processing concepts but relied on a proprietary Local Control Network (LCN). The TDC 3000 launch (1983) introduced the Universal Control Network (UCN) as a peer-to-peer token-passing coaxial network operating at 5 Mbps, enabling deterministic communication between Process Manager (PM), Advanced Process Manager (APM), and High-Performance Process Manager (HPM) nodes. The third phase, spanning the 1990s through the 2010s, introduced fiber-optic UCN variants and Ethernet-based supervisory layers (Application Module / AM, History Module / HM) while preserving backward compatibility with legacy UCN I/O cards — including the analog input modules in this listing. This backward compatibility is the primary reason sites continue to source 51304754-176 and equivalent assemblies: replacing the I/O layer would require re-engineering thousands of control strategies. Honeywell's Experion PKS platform (introduced 2002) provides a migration path, but full migration projects at large refineries routinely span 5–10 years, sustaining demand for original TDC 3000 spare parts well into the 2030s.

TDC 3000 UCN Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced components within the Honeywell TDC 3000 / UCN ecosystem. Each entry reflects a discrete functional role within the system architecture.

Analog Input Modules

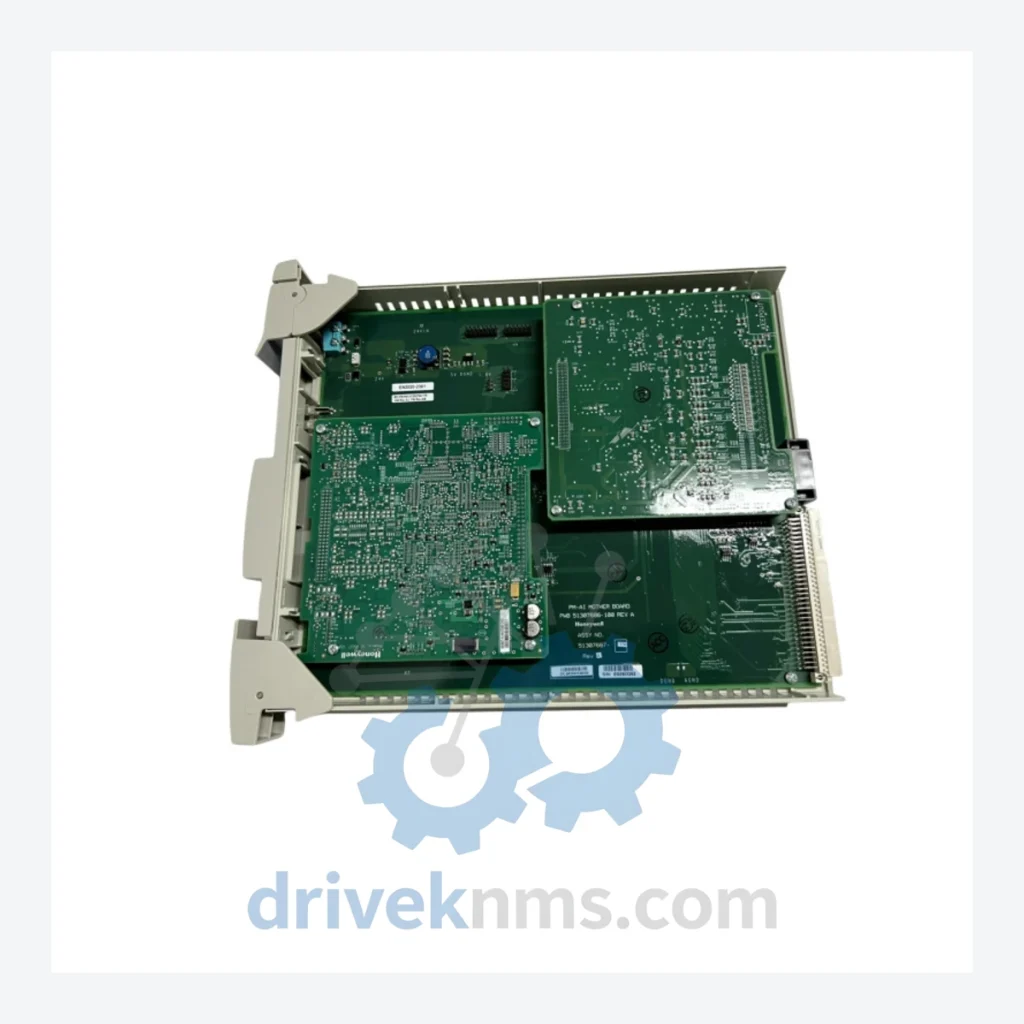

• 51304754-176: UCN High Level Analog Input card, 16-channel, 4–20 mA / 1–5 V, primary assembly
• 51307687-176: UCN High Level Analog Input associated assembly / daughter card for 51304754-176
• 51304485-175: UCN Low Level Analog Input module, thermocouple and mV inputs, 16-channel
• 51304485-176: UCN Low Level Analog Input module, revision 176, enhanced cold-junction compensation
• 51309276-175: UCN Analog Input module, smart transmitter interface, HART-compatible variant

Analog Output Modules

• 51304453-175: UCN Analog Output module, 8-channel, 4–20 mA current output, loop-powered
• 51304453-176: UCN Analog Output module, revision 176, updated firmware baseline
• 51305907-175: UCN High-Side Analog Output, 16-channel, for valve positioner applications

Digital Input Modules

• 51304441-175: UCN Digital Input module, 32-channel, 24 VDC discrete input, isolated
• 51304441-176: UCN Digital Input module, revision 176, enhanced surge protection
• 51309218-175: UCN Digital Input module, 120 VAC field input, 16-channel

Digital Output Modules

• 51304445-175: UCN Digital Output module, 16-channel, 24 VDC sourcing output
• 51304445-176: UCN Digital Output module, revision 176, updated relay driver circuit
• 51309220-175: UCN Digital Output module, 120 VAC triac output, 8-channel

Controller / CPU Modules

• 51401288-100: Process Manager (PM) Controller card, UCN node processor, primary CPU assembly
• 51402497-200: Advanced Process Manager (APM) Controller module, enhanced scan rate, dual-redundant capable
• 51304362-376: High-Performance Process Manager (HPM) I/O Link module, fiber-optic UCN interface

Power Supply Modules

• 51109684-226: TDC 3000 I/O chassis power supply, 24 VDC regulated, 10 A
• 51190493-200: UCN redundant power supply module, hot-swap capable, for PM/APM chassis

Sourcing Hard-to-Find & Obsolete TDC 3000 UCN Parts

Honeywell formally transitioned TDC 3000 hardware to end-of-life (EOL) status on a rolling basis beginning in 2010, with the majority of UCN I/O modules — including the 51304754-176 and 51307687-176 — classified as discontinued from new manufacture. DriveKNMS maintains a dedicated inventory program for TDC 3000 lifecycle extension, sourcing tested surplus units from decommissioned plant assets, controlled-environment warehouses, and verified OEM overstock channels. For operators running TDC 3000 systems under long-term service agreements or site-managed maintenance contracts, DriveKNMS provides: (1) direct unit replacement for failed I/O cards with same-revision assemblies to avoid firmware incompatibility; (2) cross-reference matching for superseded part numbers where Honeywell issued revision changes (e.g., -175 to -176 transitions); (3) emergency same-week dispatch for critical process uptime situations. All units are shipped with full traceability documentation and are available for inspection prior to dispatch upon request.

Quality Control for the TDC 3000 UCN Range

UCN analog input modules such as the 51304754-176 present specific test challenges due to their multi-layer PCB construction, backplane edge connector integrity, and on-board EEPROM calibration data. DriveKNMS applies the following verification protocol to all TDC 3000 UCN modules prior to dispatch: (1) Visual inspection under 10× magnification for solder joint integrity, capacitor ESR degradation, and connector pin wear; (2) Powered functional test using a Honeywell-compatible UCN test chassis, verifying channel-by-channel A/D conversion accuracy against a calibrated 4–20 mA reference source; (3) Backplane communication test confirming UCN token-passing participation and correct module address response; (4) Burn-in cycle (minimum 4 hours at 45°C ambient) to screen latent component failures; (5) Final calibration verification with documented test report issued per unit. Modules that fail any stage are quarantined and not offered for sale.
