ICS Triplex T8153

Technical Dossier

Product Details And Specifications

ICS Triplex T8000 Series Technical Notes

The ICS Triplex T8000 Series is a fault-tolerant distributed control system (DCS) platform engineered for continuous, high-availability industrial processes. Deployed extensively in petrochemical refineries, offshore oil & gas platforms, nuclear power generation facilities, and large-scale chemical processing plants, the T8000 architecture is built around triple modular redundancy (TMR) — a design principle that allows any single module to fail without process interruption. The series has accumulated decades of installed base across North Sea platforms, Gulf Coast refineries, and Asian LNG terminals, making it one of the most widely maintained legacy safety and control platforms in global heavy industry. Its modular backplane design, deterministic scan cycle, and IEC 61508 SIL 2/3 compliance have made it a reference architecture for safety instrumented systems (SIS) and basic process control systems (BPCS) operating under stringent regulatory frameworks.

The Evolution of T8000 Series Architecture

The T8000 platform was introduced by ICS Triplex in the late 1980s as a purpose-built TMR controller for safety-critical applications. The original architecture relied on parallel processing across three independent logic channels, with a voter circuit arbitrating outputs — a design that predated modern IEC 61511 functional safety standards but was retroactively validated against them. Early revisions used proprietary backplane communication at fixed baud rates with limited diagnostics visibility.

Through the 1990s, ICS Triplex expanded the T8000 catalog to include dedicated I/O modules for analog and digital signals, communications adapters for Modbus and HART integration, and redundant power supply modules. The T8110 and T8120 controller modules introduced enhanced memory capacity and faster scan cycles. The T8150-series communications adapters, including the T8153, were introduced to bridge the TMR controller to external supervisory systems via RS-232/RS-485 and proprietary serial protocols.

Following Rockwell Automation's acquisition of ICS Triplex in 2004, the T8000 platform entered a managed lifecycle phase. New installations migrated toward the Allen-Bradley AADvance platform, but the T8000 installed base remained active due to the prohibitive cost and risk of mid-life SIS replacement. As of 2026, the T8000 series is classified as a mature/end-of-life platform. Rockwell Automation no longer manufactures new T8000 modules; all procurement is through authorized aftermarket suppliers and certified repair channels. Long-term maintenance support, including module-level repair, functional testing, and certified spare parts inventory, is the primary service model for this platform.

T8000 Series Full Catalog & Functionalities (SKU List)

Controllers & Processors

• T8110: TMR Main Processor Module — primary logic execution unit, triple-redundant CPU with voter arbitration
• T8111: TMR Processor Module — alternate processor revision with expanded RAM and faster scan cycle
• T8120: TMR Controller Module — enhanced processing unit for high I/O count configurations
• T8121: TMR Controller Module (Rev B) — revised firmware baseline for improved diagnostics reporting

Analog Input Modules

• T8431: 8-Channel Analog Input Module — 4–20 mA HART-compatible, TMR signal conditioning
• T8432: 8-Channel Analog Input Module — voltage input variant, ±10 V DC range
• T8451: 16-Channel Analog Input Module — high-density AI for large process variable counts

Analog Output Modules

• T8461: 8-Channel Analog Output Module — 4–20 mA current output, TMR voted output
• T8462: 8-Channel Analog Output Module — dual-channel variant with independent loop power

Digital Input Modules

• T8311: 32-Channel Digital Input Module — 24 V DC, TMR voting logic, field-side isolation
• T8312: 32-Channel Digital Input Module — 120 V AC input variant for legacy field wiring
• T8321: 64-Channel Digital Input Module — high-density DI for large discrete I/O applications

Digital Output Modules

• T8341: 16-Channel Digital Output Module — 24 V DC sourcing, TMR voted solid-state outputs
• T8342: 16-Channel Digital Output Module — relay output variant for high-current field devices

Communications & Interface Adapters

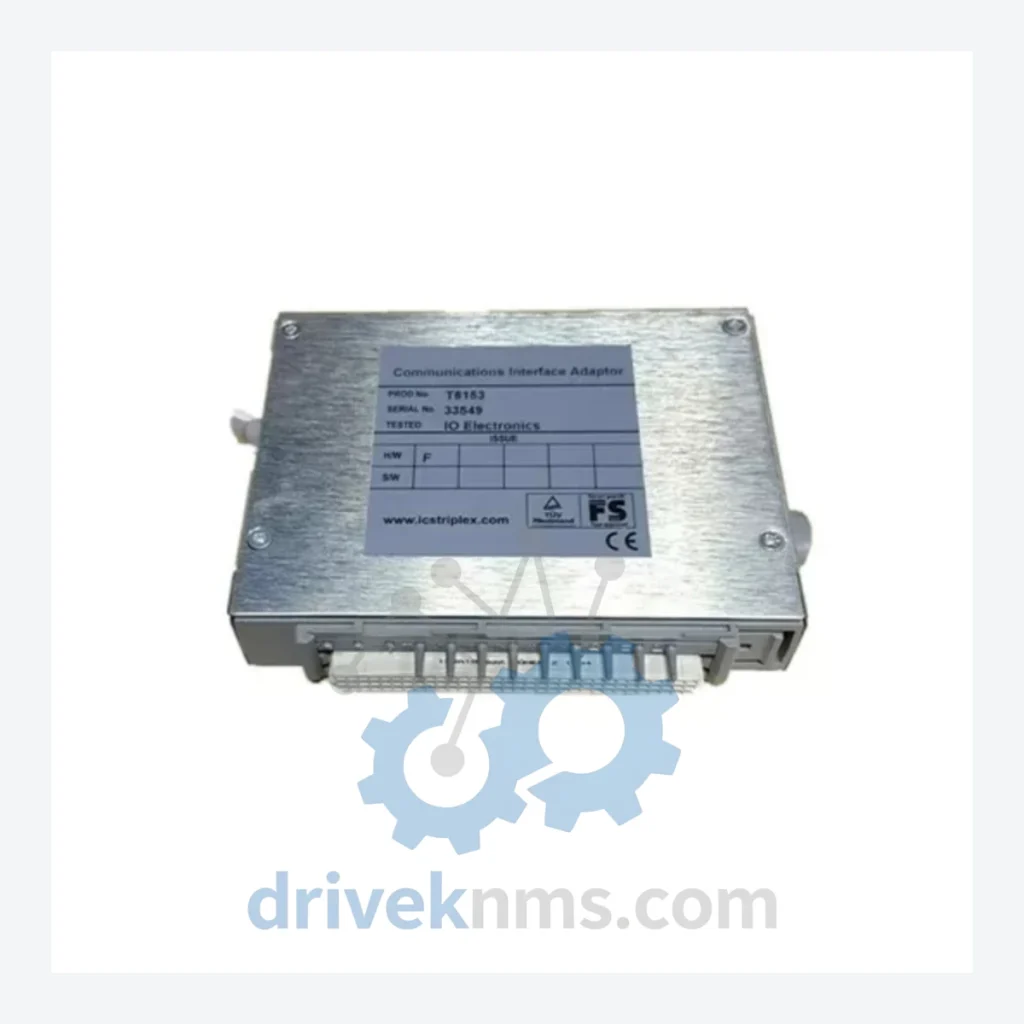

• T8153: Communications Interface Adapter — RS-232/RS-485 serial bridge, links TMR controller to DCS historian or SCADA via Modbus RTU/ASCII
• T8154: Communications Interface Adapter — Ethernet variant, supports Modbus TCP for integration with modern supervisory networks

Power Supply Modules

• T8800: Redundant Power Supply Module — 24 V DC output, hot-swap capable, dual-feed input
• T8801: Power Supply Module — 120/240 V AC input variant for panel-mount configurations

Quality Control for the T8000 Series Range

The T8000 backplane uses a proprietary high-speed serial bus for inter-module communication between the three TMR logic channels. Verification of a T8000 module — particularly communications adapters such as the T8153 — requires test equipment capable of simulating the TMR backplane environment, not generic bench testers.
