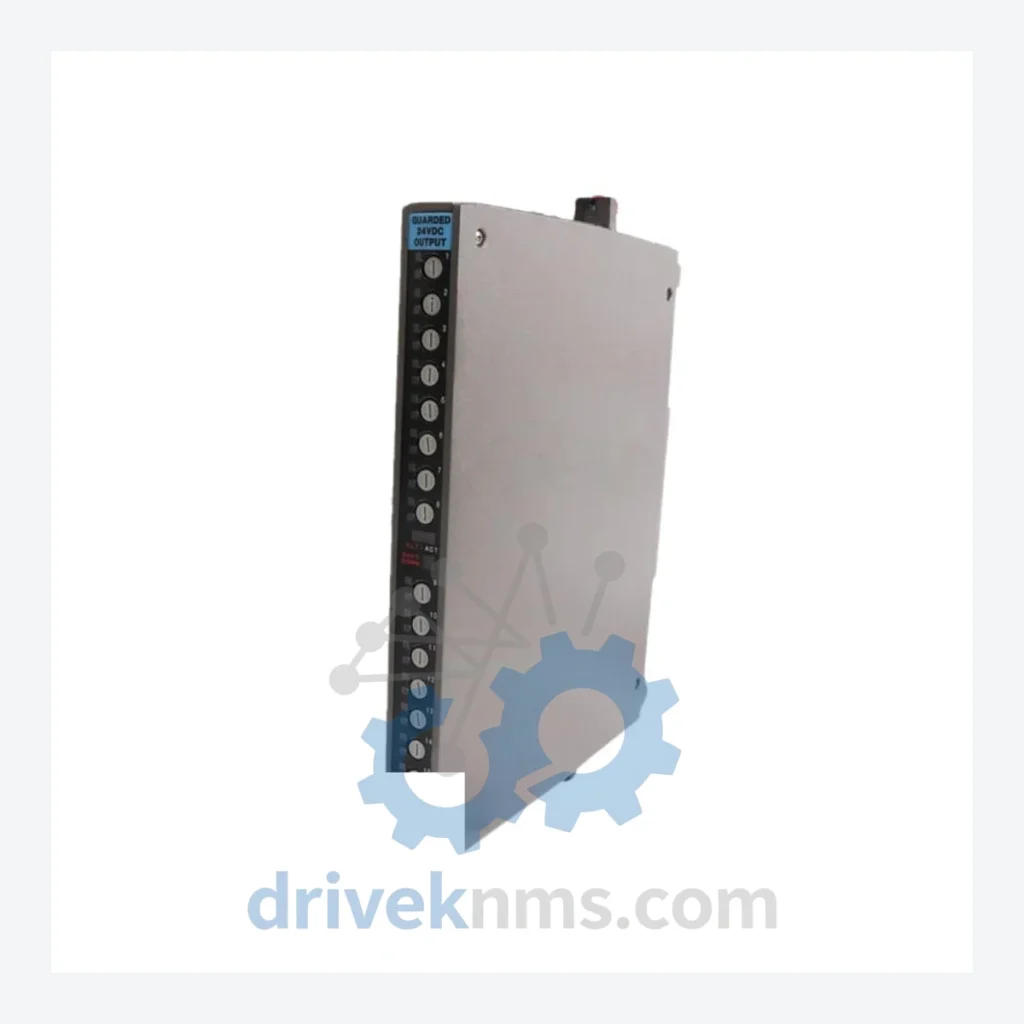

ICS Triplex T3480 Guarded Analog Output Module

Technical Dossier

Product Details And Specifications

ICS Triplex T3000 Series: Comprehensive Module Range and Technical Overview

The ICS Triplex T3000 Series represents one of the most widely deployed fault-tolerant distributed control system (DCS) platforms in global heavy industry. Installed across petrochemical complexes, nuclear power stations, offshore platforms, and refinery process units, the T3000 architecture is engineered to IEC 61508 SIL 2/3 requirements. Its triple modular redundancy (TMR) design ensures continuous process availability even under single-point hardware failure conditions. The T3480 Guarded Analog Output module is a core output node within this architecture, providing isolated 4–20 mA analog drive signals to final control elements including control valves, variable speed drives, and positioners.

The Evolution of T3000 Series Architecture

The ICS Triplex T3000 platform was introduced in the early 1990s as a successor to the earlier Triplex T2000 safety system, which relied on simplex and dual-redundant configurations. The T3000 introduced full TMR (Triple Modular Redundancy) at the I/O level, a significant architectural advancement that allowed individual module replacement without process shutdown — a requirement that became standard in continuous-process industries.

Through the late 1990s and 2000s, the series expanded its I/O density and communication capabilities, adding HART pass-through support on analog modules and integrating Modbus and OPC-DA gateway options. The T3000 backplane bus uses a proprietary high-speed serial protocol that is not compatible with the later Trusted TMR platform (also by ICS Triplex / Honeywell), which succeeded the T3000 in new installations from approximately 2005 onward.

As of 2026, the T3000 Series is in the mature/end-of-life phase. ICS Triplex (now part of Honeywell Process Solutions) no longer manufactures new T3000 hardware. Installed base support is maintained through authorized third-party MRO suppliers. Long-term maintenance contracts and lifecycle extension programs are the primary support pathway for existing T3000 installations.

T3000 Series Full Catalog & Functionalities (SKU List)

Controller / CPU Modules

• T3110: TMR Main Processor Module — primary CPU for T3000 TMR controller chassis
• T3120: TMR Processor Module (enhanced) — upgraded clock speed variant for T3110 replacement
• T3130: Communication Processor Module — handles inter-chassis and host DCS communication

Analog Input Modules

• T3401: Guarded Analog Input, 8-channel, 4–20 mA, HART-capable
• T3411: Guarded Analog Input, 16-channel, 4–20 mA, standard resolution
• T3421: High-Accuracy Analog Input Module — 0.05% full-scale accuracy for precision measurement loops
• T3431: Thermocouple Input Module — supports J, K, T, E, R, S, B type thermocouples
• T3441: RTD Input Module — 3-wire PT100/PT1000 resistance temperature detector inputs

Analog Output Modules

• T3480: Guarded Analog Output Module — 8-channel, 4–20 mA isolated output, TMR voted drive to final control elements
• T3490: High-Drive Analog Output Module — extended current drive capability for long cable runs

Digital Input Modules

• T3201: Digital Input Module, 32-channel, 24 VDC, dry contact and wet contact configurable
• T3211: Digital Input Module, 16-channel, 120 VAC — for field devices operating on AC supply
• T3221: Pulse Input Module — frequency and pulse counting for turbine meters and flow transmitters

Digital Output Modules

• T3261: Digital Output Module, 16-channel, 24 VDC solid-state — for solenoid valves and relay coils
• T3271: Digital Output Module, relay type, 8-channel — for high-current switching applications

Power Supply & Communication

• T3501: TMR Power Supply Module — 24 VDC redundant power distribution within the T3000 chassis
• T3601: Modbus RTU Communication Module — serial gateway for legacy SCADA integration
• T3611: Ethernet Communication Module — OPC-DA and Modbus TCP gateway for DCS historian connectivity

Sourcing Hard-to-Find & Obsolete T3000 Series Parts

The ICS Triplex T3000 Series reached end-of-manufacture status, and OEM spare parts are no longer available through standard Honeywell distribution channels. For facilities operating T3000-based safety instrumented systems (SIS) or basic process control systems (BPCS), unplanned module failures present a significant operational risk if replacement stock is not pre-positioned.

DriveKNMS maintains a dedicated inventory of T3000 Series modules including the T3480, sourced from decommissioned plant assets, controlled warehouse stock, and verified MRO channels. All units are catalogued by revision level and firmware version where applicable. DriveKNMS provides:

• Emergency same-day dispatch for critical process uptime situations
• Revision-matched replacements to avoid backplane compatibility issues
• Long-term supply agreements for facilities with multi-year maintenance schedules
• Cross-reference support for identifying compatible successor modules from the Honeywell Trusted TMR platform

Quality Control for the T3000 Series Range

T3000 Series modules, particularly analog I/O types such as the T3480, incorporate complex backplane edge connectors and TMR voting circuitry that require specialized test procedures beyond standard power-on verification.

DriveKNMS applies the following test protocol to all T3000 modules prior to dispatch:

• Backplane connector inspection: Pin-by-pin continuity check and visual inspection for oxidation or mechanical deformation on the 96-pin DIN 41612 connector
• TMR voting circuit verification: Functional test of the three independent signal paths and majority-vote output logic using a T3000 chassis test rig
• Analog channel calibration: Each of the 8 output channels on the T3480 is driven across the 4–20 mA range and measured against a calibrated reference meter (±0.01 mA resolution)
• Isolation resistance test: Channel-to-channel and channel-to-chassis isolation verified at 500 VDC per IEC 61010 requirements
• Burn-in cycle: 48-hour powered soak at elevated ambient temperature to screen for early-life component failures
• Firmware revision logging: Module firmware version recorded and documented in the shipment certificate
