ICS Triplex T3481 High Density Guarded Output Module – Obsolete Trusted Series Spare Part

Technical Dossier

Product Details And Specifications

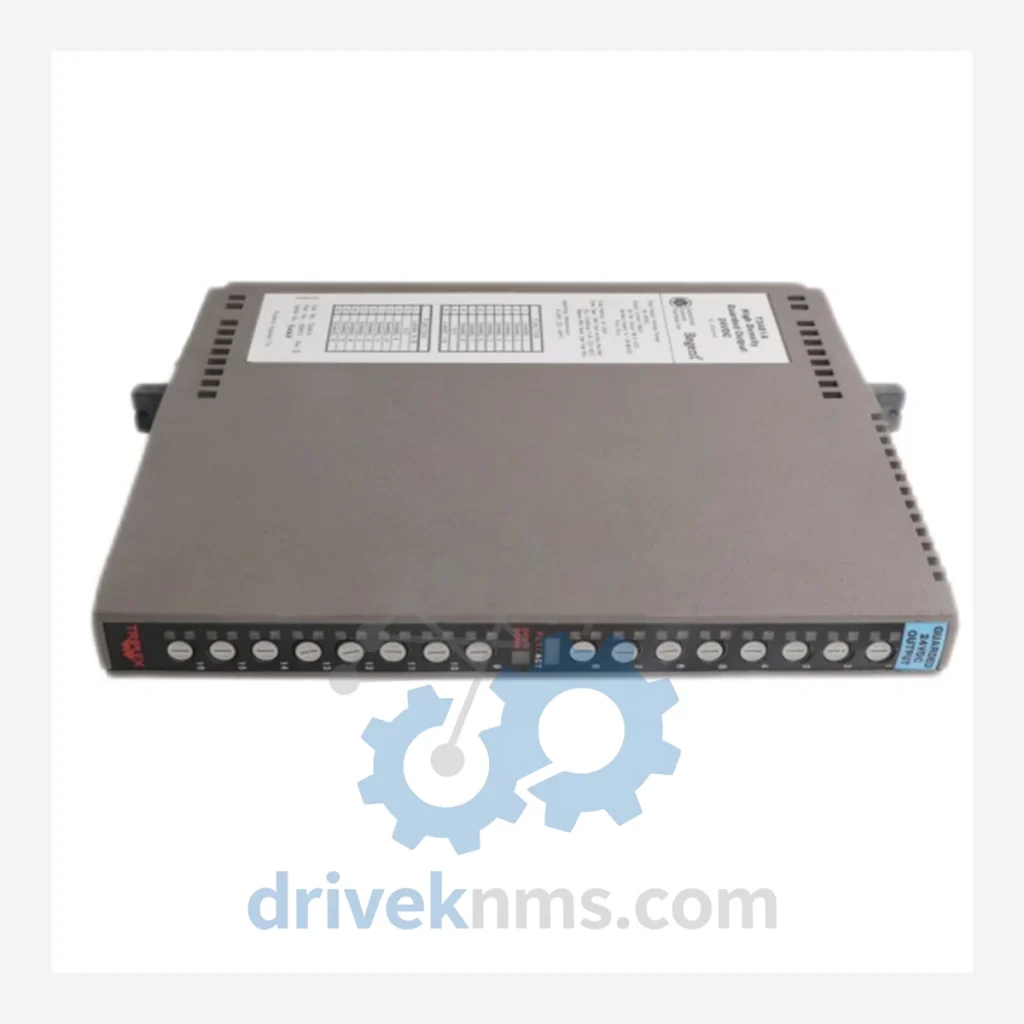

ICS Triplex T3481 High Density Guarded Output Module – Obsolete Trusted Series Spare Part

When an ICS Triplex Trusted TMR safety controller loses a critical output module, the consequences extend far beyond a single card replacement. The Trusted platform—deployed across oil refineries, gas processing plants, and petrochemical facilities worldwide—was engineered for decades of continuous operation in Safety Instrumented Systems (SIS). Replacing the entire safety controller architecture to accommodate a single discontinued module can trigger a full SIL re-validation cycle, new engineering studies, updated P&IDs, and a planned shutdown that costs operators anywhere from several hundred thousand to several million dollars. The T3481 High Density Guarded Output 24VDC module is one of those components that, when it fails, forces that exact decision—unless a verified replacement unit is already on the shelf.

DriveKNMS maintains sourced inventory of the T3481 specifically for facilities that cannot afford to treat a legacy safety system as a scheduled capital project. This is asset protection in its most direct form: one spare card, held in reserve, preserves the operational continuity of a system that took years to engineer and certify.

Technical Specifications

Solving the Discontinued Hardware Crisis

The ICS Triplex Trusted platform was the backbone of safety shutdown logic in some of the world's most demanding process environments. Its TMR architecture—where three independent processing channels vote on every output decision—made it the preferred choice for Emergency Shutdown (ESD) and Fire & Gas (F&G) systems where a single point of failure is not acceptable.

The T3481 output module sits at the final control element interface: it is the card that physically drives the solenoids, actuators, and shutdown valves that protect personnel and assets. When this module reaches end-of-life, facility engineers face a choice with no comfortable options. Migrating to a modern safety controller requires a full HAZOP review update, new Factory Acceptance Testing (FAT), Site Acceptance Testing (SAT), and in many jurisdictions, third-party SIL verification. The engineering and downtime cost of that migration, for a single operating unit, routinely exceeds USD 2–5 million when indirect costs are included.

Maintaining a stock of verified T3481 modules extends the operational life of the existing Trusted system by 5 to 10 years—at a fraction of that cost. For plant managers operating under capital expenditure constraints, this is not a workaround. It is a documented asset life extension strategy that defers a major capital project while maintaining full SIL compliance on the existing certified architecture.

The T3481 is also commonly found in systems running alongside ICS Triplex Trusted T8xxx chassis configurations and is integrated with legacy DCS environments including Honeywell TDC 3000 and ABB MasterPiece 200 in hybrid control architectures. In these installations, the output module is not an isolated component—it is a load-bearing element of a certified safety loop that cannot be substituted with a non-identical replacement without triggering re-certification.

Condition & Reliability Assurance

Sourcing obsolete safety system components from unverified channels introduces risk that defeats the purpose of maintaining a redundant architecture. DriveKNMS applies a structured 5-step qualification process to every T3481 unit before it is offered for sale:

Step 1 – Visual and Mechanical Inspection: Full board inspection for physical damage, connector wear, and evidence of prior field failure modes. Units with burn marks, cracked traces, or damaged connectors are rejected at intake.

Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mechanism in stored power electronics. Each unit is assessed for capacitor bulging, leakage, and ESR degradation. Where capacitor condition is marginal, replacement with specification-matched components is performed before the unit is offered for sale.

Step 3 – Firmware Version Verification: Where accessible, firmware revision is documented and cross-referenced against known compatible versions for the Trusted platform. Customers are advised of the firmware state prior to purchase.

Step 4 – Pin and Connector Corrosion Inspection: Backplane connectors and I/O pins are inspected under magnification for oxidation and corrosion. Affected contacts are cleaned using approved contact restoration procedures. Units with structural connector damage are not offered for sale.

Step 5 – Functional Burn-In: Where test infrastructure permits, units undergo powered operational verification prior to shipment. Test results are documented and available upon request.

Key Features for System Maintenance

The T3481 is a direct drop-in replacement for the same module position within the ICS Triplex Trusted chassis. No firmware re-flashing of the host controller is required for a like-for-like module swap. No re-engineering of the safety logic is necessary. The replacement procedure follows the standard Trusted hot-swap or cold-swap protocol documented in the OEM maintenance manual, which most SIS engineers at Trusted-equipped facilities will have on file.

This matters because the alternative—sourcing a non-identical output module and adapting it to the existing chassis—requires engineering change documentation, updated safety case records, and in most regulated environments, a management of change (MOC) process that adds weeks to the repair timeline. A verified T3481 replacement eliminates that overhead entirely. The system returns to its certified state with no architectural changes and no additional validation burden.

For facilities managing multiple Trusted-equipped units or trains, establishing a minimum stock level of T3481 modules as part of a formal critical spare parts program is a defensible maintenance strategy. The cost of holding two or three verified spare modules is orders of magnitude lower than the cost of an unplanned shutdown while sourcing a replacement on the open market under time pressure.

FAQ

What warranty applies to an obsolete T3481 module?
DriveKNMS provides a 12-month warranty on all T3481 units covering defects identified under normal operating conditions. Warranty terms are confirmed in writing at the time of purchase.

How do I know the unit is new or properly refurbished—not a field pull in unknown condition?
Every unit is processed through our 5-step qualification protocol described above. Condition grade (new surplus or refurbished) is disclosed prior to purchase. Supporting inspection documentation is available upon request for units destined for safety-critical applications.

Should I buy more than one unit?
For any facility where the Trusted system is the primary safety layer for a process unit, holding a minimum of one cold spare T3481 per chassis is standard practice. For multi-train facilities or where the module is used in multiple positions, a formal critical spare analysis is recommended. DriveKNMS can advise on quantity based on your system configuration.

Can you source other ICS Triplex Trusted modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across the Trusted platform and other legacy safety and control systems. Contact us with your full bill of materials for a consolidated sourcing assessment.
