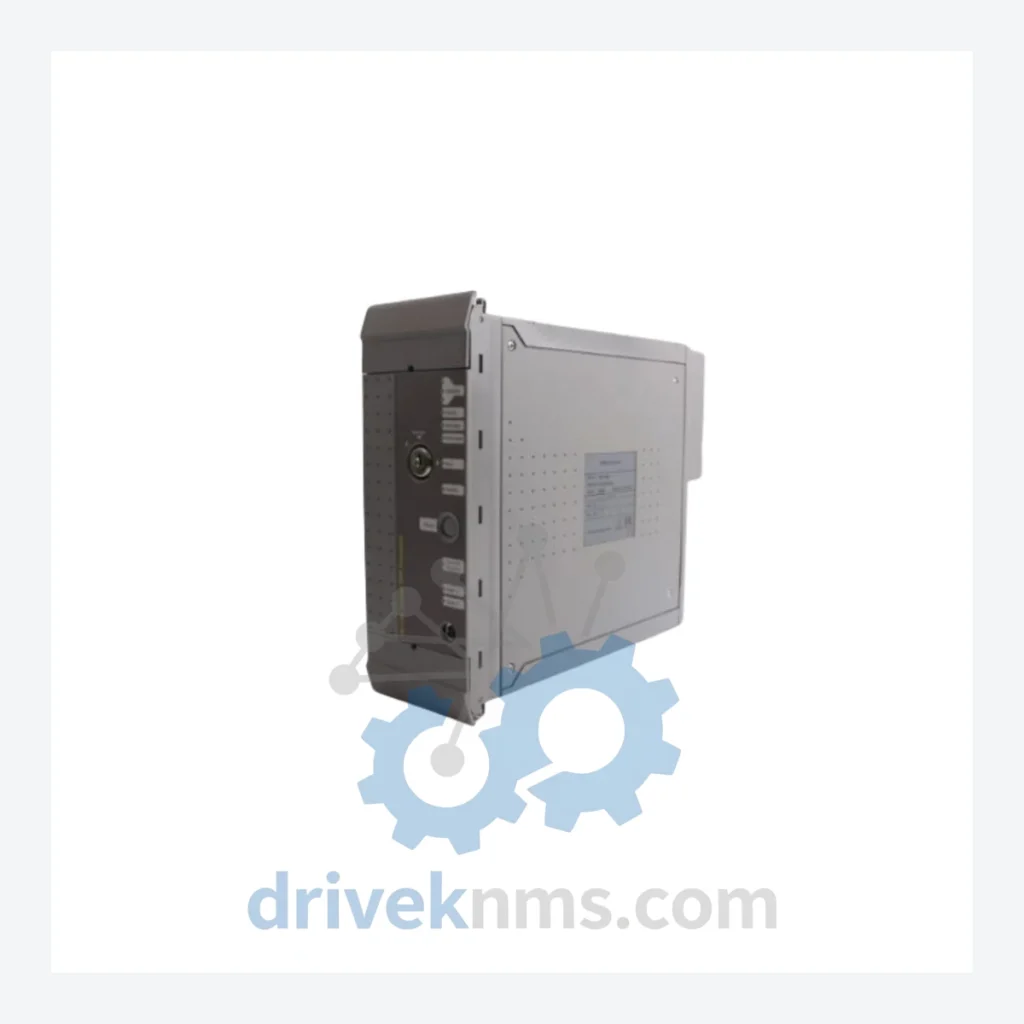

ICS Triplex T8100C Controller Chassis – Obsolete Trusted TMR Spare Part

Technical Dossier

Product Details And Specifications

ICS Triplex T8100C Controller Chassis – Obsolete Trusted TMR Spare Part

When an ICS Triplex T8100C controller chassis fails in a live safety-critical environment, the consequences extend far beyond a single module replacement. The Trusted TMR (Triple Modular Redundancy) architecture was engineered for continuous, fault-tolerant operation in process industries where unplanned downtime is measured in hundreds of thousands of dollars per hour. A full platform migration — from engineering assessment and hardware procurement to software re-validation and regulatory re-certification — routinely exceeds seven figures. DriveKNMS holds verified stock of the T8100C chassis, providing a direct path to system restoration without triggering that cost cascade.

Technical Specifications

Note: Electrical parameters not independently verified. Specifications above are based on known product identity. No parameters have been assumed or fabricated.

Solving the Discontinued Hardware Crisis

The ICS Triplex Trusted TMR platform was deployed extensively across oil & gas, petrochemical, and power generation facilities throughout the 1990s and 2000s. Its TMR architecture — where three independent processing channels vote on every output — made it the preferred choice for Emergency Shutdown (ESD) and Fire & Gas (F&G) applications where SIL 2 and SIL 3 integrity levels were mandatory.

ICS Triplex was acquired and the Trusted product line was eventually discontinued. OEM support has ended. This creates a structural problem for any facility still running this platform: the installed base remains operationally sound, but the supply chain for replacement hardware has collapsed. A failed T8100C chassis cannot be substituted with a modern equivalent without a full system redesign — new I/O modules, new communication infrastructure, new software validation, and in regulated industries, a full functional safety re-assessment under IEC 61511.

For plant managers facing this reality, the calculus is straightforward. A verified spare T8100C chassis extends the operational life of the entire safety system by years, deferring a capital expenditure that may run into millions. Facilities that have implemented a structured obsolete-parts inventory strategy for their Trusted TMR systems routinely achieve 5–10 additional years of compliant operation from hardware that would otherwise force premature platform retirement.

The T8100C chassis is the structural backbone of the controller rack. Without it, no I/O modules, no processor cards, and no communication modules can be installed. It is not a peripheral component — it is the platform itself. Its failure is a system-level event, not a module-level event.

Condition & Reliability Assurance

Every T8100C chassis processed through DriveKNMS undergoes a structured 5-step quality assessment before dispatch:

• Step 1 – Visual and Mechanical Inspection: Full examination of the chassis frame, backplane connectors, and slot guides for physical damage, corrosion, or deformation. Pin integrity on all backplane connectors is verified under magnification.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors on associated power distribution components are identified and evaluated. Units showing visible bulging, electrolyte leakage, or measured capacitance deviation are flagged and addressed.
• Step 3 – Backplane Continuity and Isolation Testing: Electrical continuity across all backplane signal paths is verified. Isolation resistance between power rails and signal lines is measured to confirm no degradation from age or environmental exposure.
• Step 4 – Connector and Pin Corrosion Screening: All edge connectors and module interface pins are inspected for oxidation. Affected contacts are treated using approved contact cleaning procedures. Units with irreversible corrosion are rejected.
• Step 5 – Firmware and Label Verification: Where applicable, firmware revision markings and hardware revision labels are cross-referenced against known production records to confirm authenticity and revision compatibility.

Units that do not pass all five steps are not offered for sale. Condition grade is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in Replacement: The T8100C chassis is a direct mechanical and electrical replacement within the Trusted TMR rack system. No modifications to existing wiring, I/O modules, or processor cards are required.
• No Reprogramming Required: The chassis itself carries no application logic. Replacing it does not affect the safety application software residing on the processor modules. System restart and validation procedures remain within the scope of normal maintenance, not re-engineering.
• Avoids Engineering Reconstruction Costs: Sourcing a verified spare chassis eliminates the need to engage a systems integrator for platform migration. The cost differential between a spare chassis and a platform migration project is typically two to three orders of magnitude.
• Preserves Regulatory Compliance: Facilities operating under IEC 61511 or equivalent functional safety standards face significant re-validation obligations when changing safety system platforms. A like-for-like chassis replacement maintains the existing safety case, avoiding re-certification timelines that can extend 12–24 months.
• Supports Long-Term Spares Strategy: Procurement of multiple units while stock is available is a recognized asset protection practice. As the installed base of Trusted TMR systems continues to age, verified chassis availability will decrease. Forward procurement at current prices is a measurable hedge against future scarcity.

FAQ

Q: What warranty applies to an obsolete part like the T8100C?
A: DriveKNMS provides a 12-month warranty against defects in materials and workmanship on all units that pass our QA process. Warranty terms are confirmed in writing on the order documentation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through documented supply channels. Hardware revision markings, label formats, and physical construction are cross-referenced against known authentic production units. Our QA process includes a specific authenticity screening step. Provenance documentation is available on request.

Q: Should I buy more than one unit?
A: For any facility running a Trusted TMR system as a primary safety layer, holding at least one spare chassis is a minimum prudent position. Given the trajectory of availability for this part, procurement of two or three units — where budget allows — is a defensible asset protection decision. The cost of a spare chassis is a fraction of the cost of an unplanned system outage or an emergency platform migration.

Q: Can you source other Trusted TMR components?
A: Yes. DriveKNMS maintains inventory across the Trusted TMR product family. Contact us with your full bill of materials and we will provide availability and pricing.
