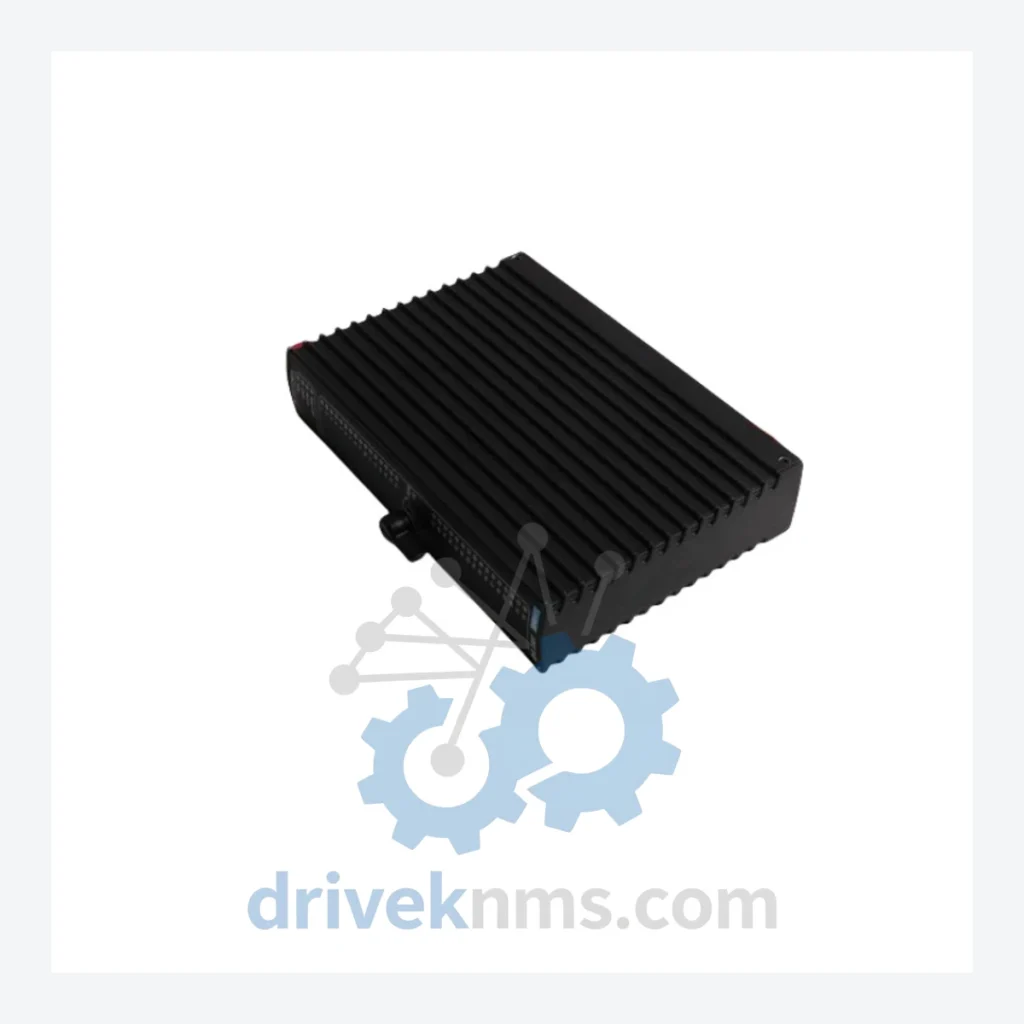

ICS Triplex T8000 Series Modules | T8312-7C 24V DC Digital Input 40-Channel

Technical Dossier

Product Details And Specifications

ICS Triplex T8000 Series: Comprehensive Module Range and Technical Overview

The ICS Triplex T8000 Series is a Triple Modular Redundancy (TMR) safety system platform engineered for continuous, fault-tolerant operation in the most demanding process industries. Deployed extensively in petrochemical complexes, offshore oil & gas platforms, nuclear power generation facilities, and large-scale refinery operations, the T8000 architecture provides 2oo3 (two-out-of-three) voting logic at the hardware level. This design ensures that a single module failure does not interrupt the safety function, making it a preferred platform for SIL 2 and SIL 3 certified applications under IEC 61508 and IEC 61511. Installed base spans facilities operated by major energy companies across North America, Europe, the Middle East, and Asia-Pacific. The platform's longevity — with active deployments dating back to the 1990s — means that spare part availability is a critical operational concern for plant maintenance teams worldwide.

The Evolution of T8000 Architecture

The T8000 platform was developed by ICS Triplex (later acquired by Rockwell Automation) as a successor to earlier TMR architectures. The original T8000 chassis introduced a standardized backplane bus that allowed modular expansion of I/O capacity without altering the core controller logic. Early revisions used discrete wiring termination panels; later revisions introduced marshalling cabinets with pre-wired field termination assemblies (FTAs) to reduce installation time and wiring error risk.

The architecture evolved through several hardware generations: early modules used through-hole PCB construction with EPROM-based firmware; mid-generation modules transitioned to surface-mount technology with flash-upgradeable firmware; current-generation modules incorporate ASIC-based diagnostics for sub-millisecond fault detection. Backplane compatibility has been maintained across generations for most module types, though firmware version alignment between the controller (T8110/T8111) and I/O modules is mandatory and must be verified before any module substitution.

As of 2026, the T8000 platform is classified as a mature/end-of-life product line by Rockwell Automation. New safety system projects are directed toward the AADvance or Trusted platforms. However, the installed base of T8000 systems remains substantial, and ICS Triplex / Rockwell Automation continues to provide limited long-term maintenance support (LTMS) contracts. For facilities without active LTMS agreements, third-party spare part suppliers such as DriveKNMS provide the primary sourcing channel for replacement modules.

T8000 Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced modules within the ICS Triplex T8000 TMR platform. Modules are classified by functional category.

Controllers & Processors

• T8110: TMR Main Processor Module — primary CPU for T8000 chassis, executes safety application logic
• T8111: TMR Processor Module (enhanced) — upgraded variant with expanded memory and faster scan cycle
• T8100: System Controller Module — manages chassis communication and module health monitoring

Digital Input Modules

• T8312-7C: 24V DC Digital Input Module — 40-channel, TMR-redundant, field-proven in ESD and F&G applications
• T8310: 24V DC Digital Input Module — 32-channel standard density DI
• T8311: 48V DC Digital Input Module — 32-channel, suited for legacy field wiring at higher voltage
• T8313: 120V AC Digital Input Module — 16-channel, for AC-powered field devices
• T8314: 24V DC Digital Input Module — high-density 64-channel configuration

Digital Output Modules

• T8431: 24V DC Digital Output Module — 16-channel, solid-state relay output for solenoid valve control
• T8432: 24V DC Digital Output Module — 32-channel, high-current capacity for actuator interfaces
• T8433: 120V AC Digital Output Module — 8-channel, triac output for AC load switching

Analog Input Modules

• T8231: Analog Input Module — 8-channel, 4–20 mA / 1–5V, 16-bit resolution, HART-capable
• T8232: Analog Input Module — 16-channel, 4–20 mA, used for transmitter-dense process areas
• T8233: Thermocouple Input Module — 8-channel, supports J, K, T, E, R, S, B type thermocouples
• T8234: RTD Input Module — 8-channel, PT100/PT1000, 3-wire and 4-wire configurations

Analog Output Modules

• T8451: Analog Output Module — 8-channel, 4–20 mA, 12-bit resolution, for control valve positioners

Communication & Network Adapters

• T8830: Modbus RTU Communication Module — RS-485 serial interface for DCS/SCADA integration
• T8840: Ethernet Communication Module — 10/100 Mbps, supports Modbus TCP and OPC DA

Power Supply Modules

• T8800: TMR Power Supply Module — redundant 24V DC output, hot-swappable, with internal diagnostics
• T8801: Auxiliary Power Supply Module — supplemental power for high-density I/O chassis configurations

Sourcing Hard-to-Find & Obsolete T8000 Parts

With the T8000 platform in end-of-life status, OEM channel availability for many modules — particularly older DI/DO variants and early-revision processor cards — is severely constrained or fully exhausted. DriveKNMS maintains a dedicated inventory of tested T8000 spare parts sourced through authorized decommissioning programs, surplus equipment channels, and direct procurement from facilities undergoing system upgrades.

For modules such as the T8312-7C, T8110, T8231, and T8800, DriveKNMS provides: verified functional testing prior to shipment; full traceability documentation; short lead times compared to OEM back-order queues; and support for emergency breakdown orders with expedited logistics. Customers operating under LTMS contracts who require supplemental stock outside their contracted allocation are a primary segment served by DriveKNMS.

All modules are shipped with inspection reports. Requests for specific firmware revision levels or hardware revision suffixes (e.g., -7C, -7D) are accommodated where stock permits.

Quality Control for the T8000 Range

T8000 modules incorporate complex TMR backplane bus interfaces and inter-module voting logic that require specialized test procedures beyond standard power-on verification. DriveKNMS applies the following test protocol to all T8000 modules prior to dispatch:

• Backplane Bus Integrity Test: Module is seated in a live T8000 test chassis; backplane communication is verified across all three redundant data paths (Leg A, Leg B, Leg C).
• Channel-Level Functional Test: For the T8312-7C and similar DI modules, all 40 input channels are individually stimulated at rated voltage (24V DC) and verified for correct state reporting via the system diagnostic interface.
• Voting Logic Verification: TMR voting behavior is confirmed by simulating single-leg faults and verifying that the module continues to report correct output state without generating a spurious trip.
• Firmware Revision Check: Module firmware version is read and recorded. Compatibility with common T8110/T8111 controller firmware versions is verified and documented.
• Thermal Soak: Modules are operated at elevated ambient temperature (50°C) for a minimum of 4 hours to screen for latent component failures.
• Visual & Mechanical Inspection: PCB condition, connector pin integrity, and front-panel LED functionality are inspected and documented with photographs.
