ICS Triplex Trusted Series Modules: T8403C Trusted Expander Module —

Technical Dossier

Product Details And Specifications

ICS Triplex Trusted Series: Comprehensive Module Range and Technical Overview

The ICS Triplex Trusted Series is a fault-tolerant, triple modular redundancy (TMR) safety system platform deployed across the global heavy process industries — including offshore oil & gas platforms, onshore refineries, petrochemical complexes, nuclear power generation facilities, and LNG terminals. Engineered to IEC 61508 SIL 3 requirements, the Trusted architecture provides continuous self-diagnostics, voted I/O processing, and bumpless transfer between redundant channels. Its installed base spans hundreds of Safety Instrumented Systems (SIS) and Emergency Shutdown Systems (ESD) worldwide, many of which have been in continuous operation for over two decades. The T8403C Trusted Expander Module is a core backplane expansion component within this architecture, enabling chassis-to-chassis communication and I/O expansion without compromising the system's TMR integrity.

The Evolution of Trusted Series Architecture

The Trusted platform was originally developed by Triconex (later acquired by ICS Triplex, then integrated into Rockwell Automation's safety portfolio) as a dedicated TMR safety controller. Early generations — the T3000 and T4000 chassis families — established the foundational voted-logic architecture. The T8000 series represented a significant architectural leap, introducing a high-speed Trusted Communication Link (TCL) backplane bus, modular I/O expansion via expander chassis, and compatibility with the Trusted Engineering Workstation (TEW) software environment.

The T8403C Expander Module belongs to the mature T8000 generation, which remains the dominant installed base in brownfield SIS applications. Compatibility between T8000-generation modules is generally maintained within the same chassis family, but cross-generation substitution (e.g., T3000 to T8000) requires full engineering review. As the T8000 series has entered its end-of-life phase with the OEM, long-term maintenance now depends on specialist distributors capable of sourcing, testing, and certifying surplus and refurbished units.

Trusted Series Full Catalog & Functionalities (SKU List)

Controllers & Processors

• T8110: Trusted TMR Main Processor Module — primary CPU for TMR voted logic execution
• T8110B: Trusted TMR Main Processor Module (Rev B) — enhanced firmware, backward-compatible replacement for T8110
• T8110C: Trusted TMR Main Processor Module (Rev C) — current-generation CPU with extended memory and diagnostics
• T8151: Trusted TMR Power Supply Module — 24 VDC input, triple-redundant power distribution to backplane
• T8151B: Trusted TMR Power Supply Module (Rev B) — improved thermal management over T8151

Digital Input (DI) Modules

• T8420: Trusted TMR 24 VDC Digital Input Module — 40-channel, field-powered discrete input
• T8420B: Trusted TMR 24 VDC Digital Input Module (Rev B) — enhanced channel isolation
• T8422: Trusted TMR 120 VAC Digital Input Module — 16-channel, high-voltage discrete input for AC field devices

Digital Output (DO) Modules

• T8431: Trusted TMR 24 VDC Digital Output Module — 16-channel, solid-state relay output
• T8431B: Trusted TMR 24 VDC Digital Output Module (Rev B) — improved output diagnostics

Analog Input (AI) Modules

• T8440: Trusted TMR Analog Input Module — 8-channel, 4–20 mA / 1–5 VDC, HART-compatible
• T8440B: Trusted TMR Analog Input Module (Rev B) — extended HART pass-through support
• T8441: Trusted TMR Thermocouple Input Module — 8-channel, multi-type TC input with CJC

Expander & Communication Modules

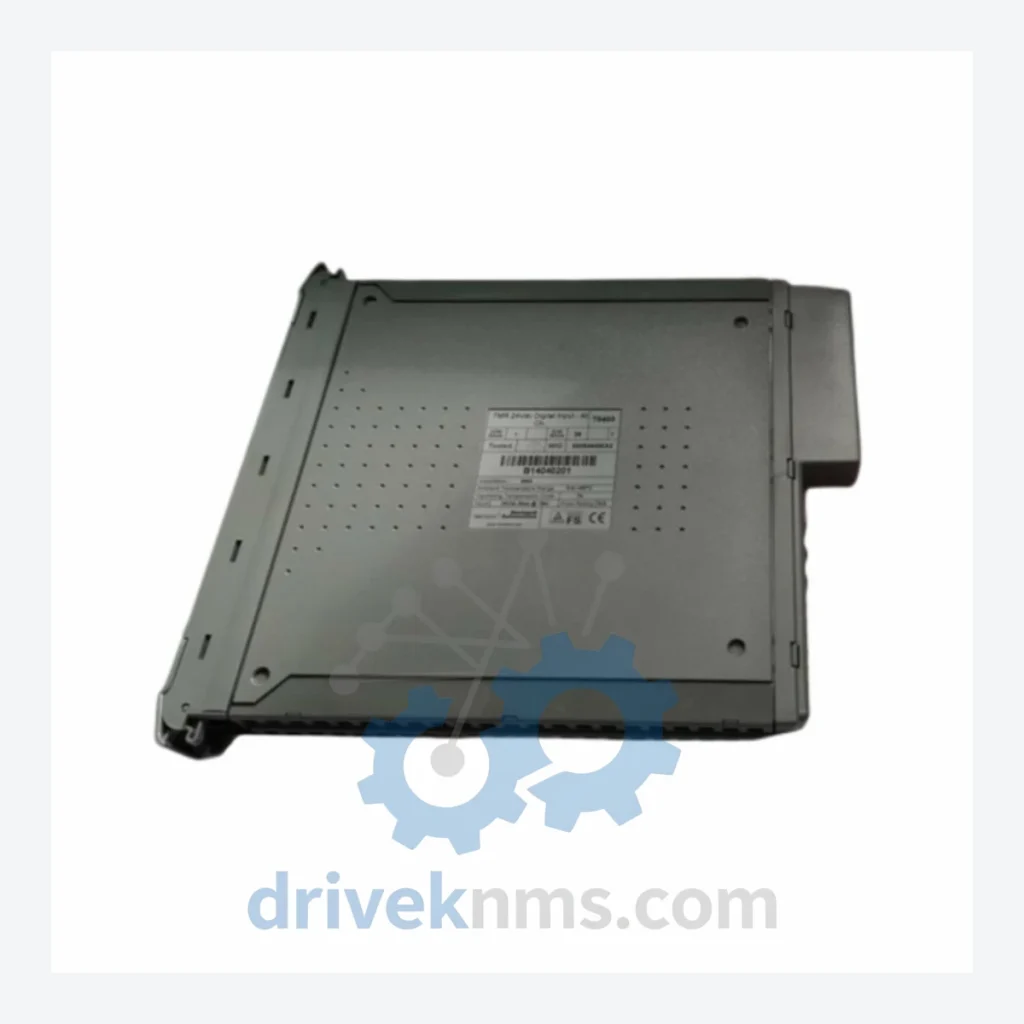

• T8403C: Trusted Expander Module — chassis-to-chassis TCL bus expansion, enables remote I/O chassis integration within TMR architecture
• T8403: Trusted Expander Module (original) — predecessor to T8403C; functionally equivalent but with earlier firmware baseline
• T8403B: Trusted Expander Module (Rev B) — intermediate revision between T8403 and T8403C
• T8461: Trusted TMR Communication Module — Modbus RTU/TCP gateway for DCS integration
• T8480: Trusted TMR Fieldbus Communication Module — PROFIBUS DP interface for field device networks

Sourcing Hard-to-Find & Obsolete Trusted Series Parts

ICS Triplex has formally discontinued active manufacturing of the T8000 Trusted Series. OEM spare parts availability through standard distribution channels is severely limited. For operators of existing Trusted-based SIS installations — particularly those under long-term service agreements or subject to functional safety management plans — sourcing certified surplus inventory is the primary lifecycle extension strategy.

DriveKNMS maintains a dedicated inventory of Trusted Series modules including the T8403C, T8110C, T8420, T8431, and T8440 families. All units are sourced from decommissioned systems or controlled surplus channels, inspected for physical integrity, and subjected to functional verification prior to dispatch. We support emergency breakdown orders, planned maintenance shutdowns, and long-term frame agreements for asset-intensive operators.

Quality Control for the Trusted Series Range

The Trusted Series architecture presents specific test challenges due to its TMR voted-logic design. A module that passes basic power-on self-test may still exhibit faults in its voting circuitry or inter-channel communication paths that only manifest under loaded conditions. DriveKNMS applies a structured verification protocol for all Trusted Series modules:

• Visual inspection: PCB condition, connector pin integrity, conformal coating assessment, capacitor health check
• Power-on diagnostics: Module self-test pass/fail verification against known-good baseline
• Backplane bus communication test: TCL bus signal integrity verification for expander modules including the T8403C
• Functional I/O verification: Channel-by-channel signal injection and response measurement for I/O modules
• Firmware revision logging: Identification and documentation of installed firmware version for compatibility reporting
• Burn-in cycle: Extended power-on soak to screen for latent component failures prior to shipment

All tested units are issued a DriveKNMS inspection certificate with test date, technician ID, and firmware version recorded.
