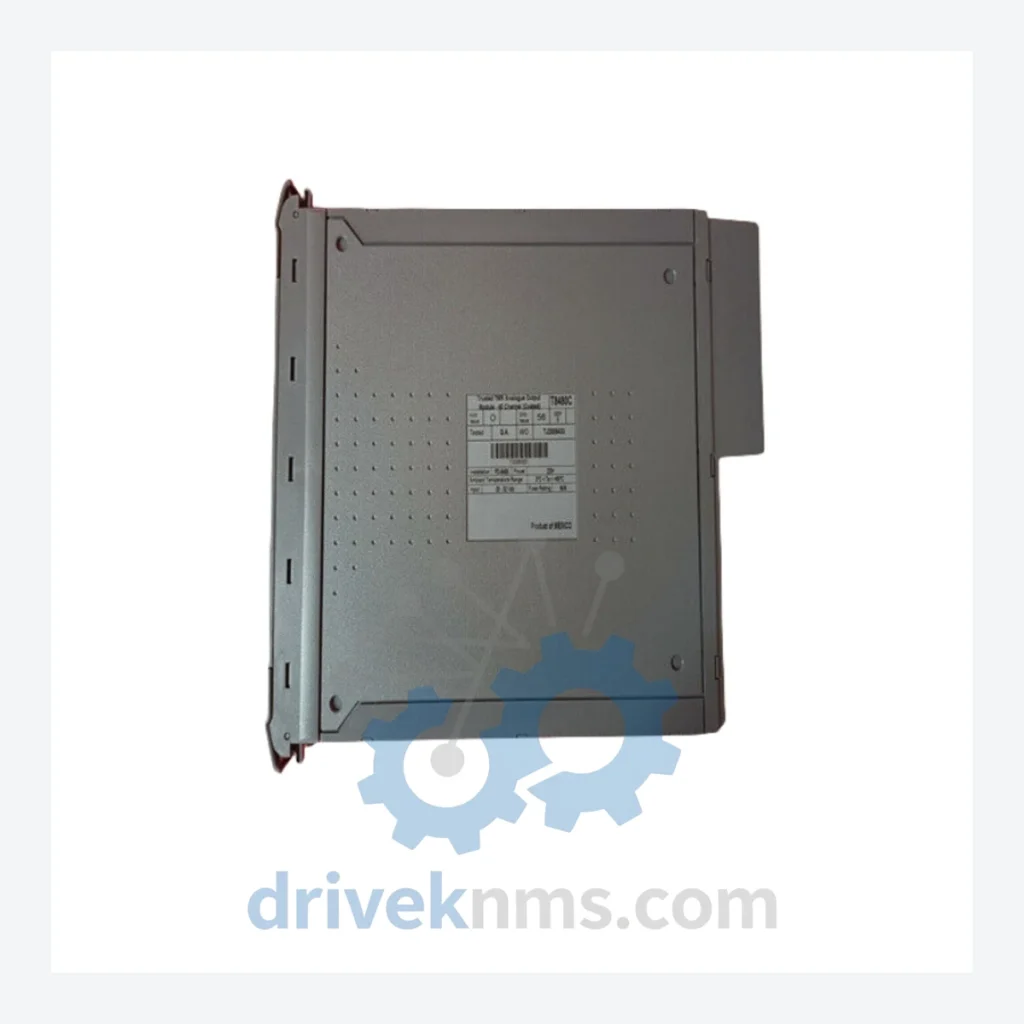

ICS Triplex T8480C Digital Input Module

Technical Dossier

Product Details And Specifications

ICS Triplex T8480 Series Technical Notes

The ICS Triplex T8480 series is a family of Digital Input (DI) modules designed for the Trusted TMR (Triple Modular Redundancy) safety system platform. Deployed across critical infrastructure sectors — including offshore oil & gas platforms, onshore refineries, petrochemical complexes, nuclear power generation facilities, and LNG terminals — the T8480 series provides fault-tolerant digital signal acquisition with continuous self-diagnostics. The Trusted platform, of which the T8480 series is a core I/O component, holds SIL 3 certification per IEC 61508 and is recognized globally as one of the most rigorously validated safety instrumented system (SIS) architectures in heavy industry. Installations span facilities operated by major energy producers across North America, Europe, the Middle East, and Asia-Pacific, many of which have been in continuous operation for 15–25 years, creating sustained demand for long-term spare parts support.

The Evolution of T8480 Architecture

The T8480 series was introduced as part of the ICS Triplex Trusted platform, which succeeded earlier TMR architectures such as the Triconex and the original ICS Triplex ISIS system. The Trusted platform introduced a standardized backplane bus architecture — the Trusted Communication Interface (TCI) — enabling modular I/O expansion without compromising the triple-redundant voting logic at the chassis level. Early T8480 variants (T8480, T8481) were designed for 24 VDC digital input acquisition with 16-channel density. Subsequent revisions introduced higher channel counts (T8482, T8483), extended voltage range compatibility, and enhanced diagnostic coverage ratios (DCavg >99%) to meet evolving IEC 61511 functional safety requirements. The T8480C specifically represents a mid-generation revision incorporating improved ASIC-based input conditioning and extended operating temperature tolerance. Compatibility across T8480 sub-variants is constrained by firmware revision and chassis backplane generation; cross-variant substitution requires validation against the site-specific System Design Specification (SDS). Rockwell Automation acquired ICS Triplex in 2007, and the Trusted platform has since been maintained under the Allen-Bradley Trusted brand, though legacy ICS Triplex part numbers remain the primary reference for installed base procurement.

T8480 Full Catalog & Functionalities (SKU List)

The following SKUs represent the documented T8480 series module range within the ICS Triplex Trusted platform. Modules are categorized by functional type:

Digital Input (DI) Modules

• T8480: 16-channel 24 VDC digital input module, TMR architecture, base revision
• T8480A: 16-channel 24 VDC DI module, revision A, enhanced diagnostic coverage
• T8480B: 16-channel 24 VDC DI module, revision B, updated ASIC input conditioning
• T8480C: 16-channel 24 VDC DI module, revision C, extended temperature range, improved EMC compliance
• T8481: 16-channel 48 VDC digital input module, TMR, for higher-voltage field circuits
• T8481A: 16-channel 48 VDC DI module, revision A, updated field termination compatibility
• T8482: 32-channel 24 VDC digital input module, high-density I/O expansion
• T8482A: 32-channel 24 VDC DI module, revision A, enhanced channel isolation
• T8483: 32-channel 48 VDC digital input module, high-density, extended voltage

Digital Output (DO) Modules

• T8431: 16-channel 24 VDC digital output module, TMR, solid-state relay output
• T8431A: 16-channel 24 VDC DO module, revision A, increased output current rating
• T8432: 8-channel high-current 24 VDC digital output module, for solenoid valve actuation

Analog Input (AI) Modules

• T8451: 8-channel 4–20 mA analog input module, TMR, HART-compatible
• T8451A: 8-channel 4–20 mA AI module, revision A, enhanced HART pass-through
• T8452: 8-channel thermocouple/RTD analog input module, multi-sensor type support

Communication & CPU Modules

• T8100: Trusted TMR main processor module, primary CPU for Trusted chassis
• T8110: Trusted TMR communication processor, Modbus/TCP and OPC-DA gateway
• T8120: Trusted high-speed data highway interface module

Quality Control for the T8480 Range

The T8480 series presents specific test challenges due to its TMR backplane bus architecture and ASIC-based input conditioning circuits. DriveKNMS applies a structured verification protocol for all T8480 series modules prior to dispatch:

• Visual inspection per IPC-A-610 Class 2 criteria, covering connector pin integrity, PCB surface condition, and component seating
• Functional power-on test using a Trusted chassis test rig, verifying module enumeration and self-diagnostic pass status across all three redundant channels
• Channel-level input simulation: each of the 16 DI channels is exercised with a calibrated 24 VDC signal source to verify correct state detection and TMR voting output
• Backplane TCI bus communication verification, confirming correct data exchange with the T8100 CPU module under load conditions
• Firmware revision identification and documentation, provided with each unit to support site compatibility verification
• Burn-in soak at operating temperature for a minimum of 4 hours prior to final inspection
