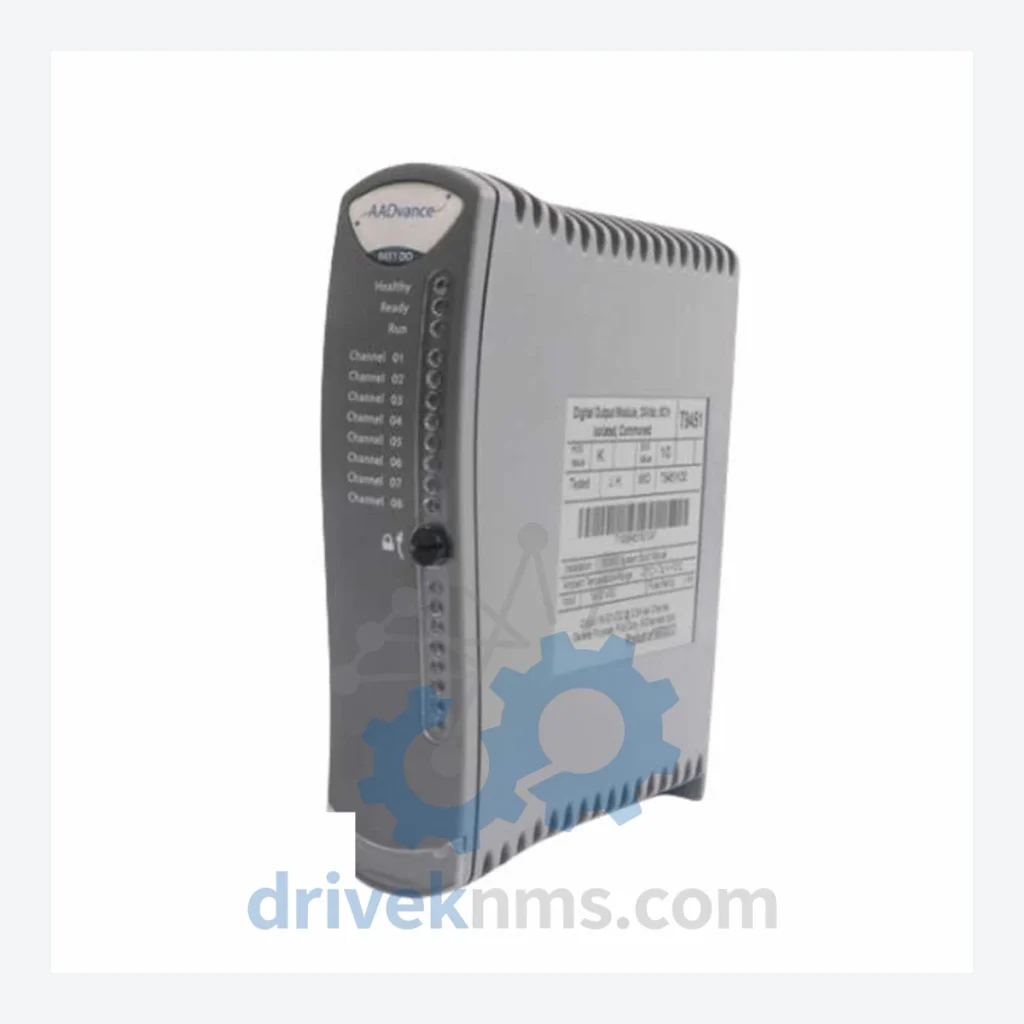

ICS Triplex T9451 Digital Output Module – Obsolete TMR Spare Part

Technical Dossier

Product Details And Specifications

ICS Triplex T9451 Digital Output Module – Obsolete TMR Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters such as output voltage range, channel count, and load ratings are model-specific. Contact DriveKNMS for verified datasheet documentation prior to installation.

Solving the Discontinued Hardware Crisis

ICS Triplex TMR systems were deployed extensively across oil & gas, petrochemical, and power generation facilities throughout the 1990s and 2000s. Following the acquisition of ICS Triplex by Rockwell Automation, active manufacturing support for legacy TMR modules including the T9451 was phased out. OEM replacement channels are closed.

The TMR architecture — where three independent processing channels vote on output decisions — means that module-level redundancy is built into the system design. However, this same architecture creates a hard dependency on exact hardware compatibility. Substituting a non-identical module risks disrupting the voting logic and invalidating the system's SIL certification. There is no generic replacement for the T9451 in an active TMR installation.

How to extend your ICS Triplex TMR system life by 5–10 years:

Condition & Reliability Assurance

Sourcing obsolete safety system hardware from unverified channels introduces risk that is incompatible with SIS applications. DriveKNMS applies a five-step inspection protocol to every T9451 unit before it is offered for sale:

• Step 1 – Visual and mechanical inspection: Full examination of PCB surfaces, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure.
• Step 2 – Electrolytic capacitor assessment: Capacitors are tested for capacitance drift and ESR (equivalent series resistance). Units with out-of-specification capacitors are either recapped with equivalent-rated components or removed from inventory.
• Step 3 – Firmware version verification: Where accessible, firmware version is documented and disclosed to the buyer prior to shipment.
• Step 4 – Pin and connector integrity check: All I/O connector pins are inspected for oxidation, bending, and contact resistance. Corroded contacts are treated or the unit is rejected.
• Step 5 – Functional power-on test: Units are powered and tested for basic operational response where test infrastructure permits. Test results are documented and available on request.

Units that do not pass all five steps are not listed for sale. Condition grade (new surplus or refurbished) is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The T9451 installs directly into the existing TMR chassis backplane. No rewiring, no I/O mapping changes, no PLC program modifications required.
• No reprogramming required: Configuration is held at the system controller level. Module replacement does not require re-entry of process parameters or safety logic.
• Avoids engineering reconstruction costs: Using an original spare eliminates the need for a safety engineer to redesign the I/O architecture, re-document the safety case, or resubmit for third-party SIL verification — costs that routinely exceed the value of the module by two to three orders of magnitude.
• Maintains SIL certification integrity: Installing an original-specification module preserves the validated hardware configuration documented in the facility's safety case. Deviating from the validated hardware list requires a formal management of change (MOC) process.

How do I confirm the unit is new surplus versus refurbished?
Condition is disclosed in writing on the order confirmation and packing documentation. New surplus units retain original manufacturer labeling and show no evidence of field installation. Refurbished units are identified as such and include a summary of the inspection and repair work performed.

Should I buy more than one unit?
For any T9451 installed in a safety-critical output channel, holding a minimum of one spare per installed unit is the standard recommendation. For facilities with multiple TMR cabinets, a centralized pool of three to five units provides coverage without excessive capital commitment. Global supply of this module is not replenishable from the OEM. Each unit sourced now reduces exposure to future emergency procurement at significantly higher cost.

Can DriveKNMS source other ICS Triplex TMR modules?
Yes. DriveKNMS specializes in obsolete and hard-to-find industrial automation components across multiple legacy platforms. Contact us with your full bill of materials for a consolidated sourcing assessment.
