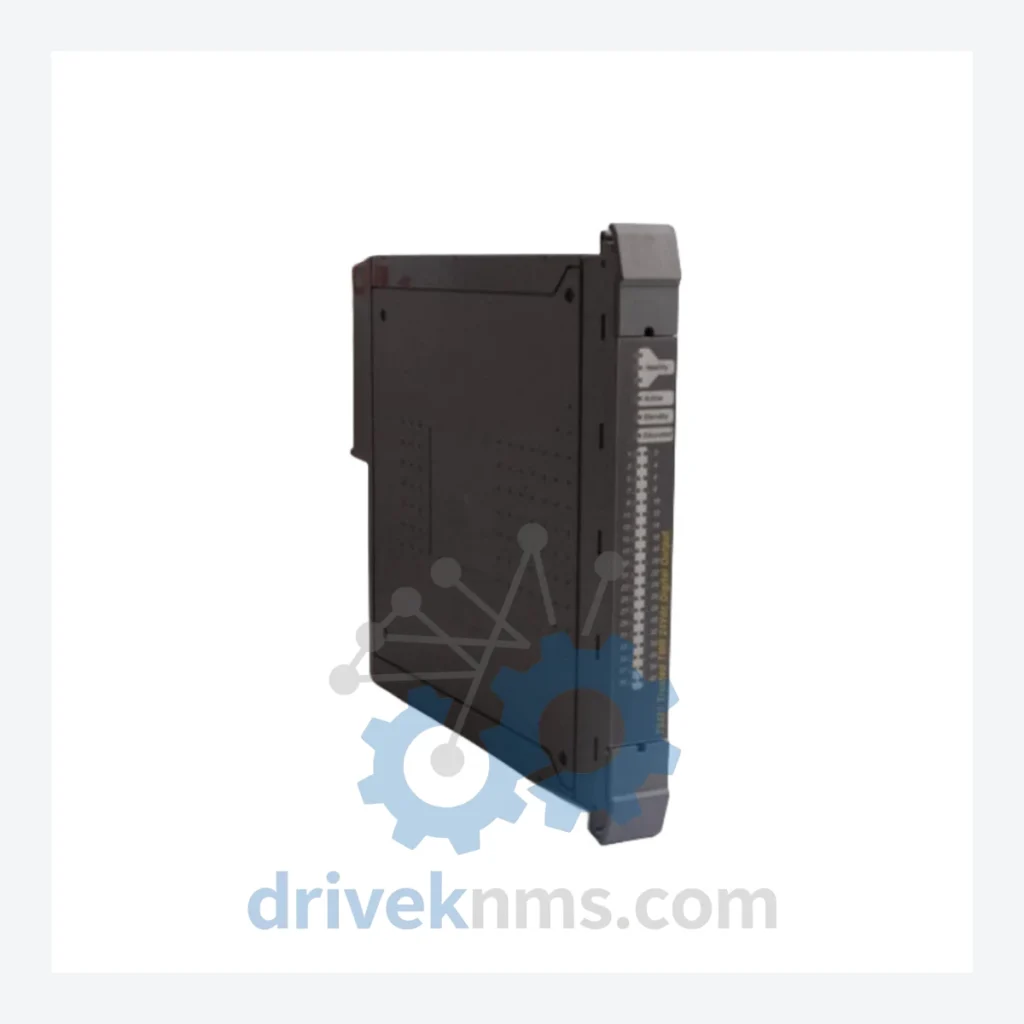

ICS Triplex T9851 Digital Output Module: Trusted Series T9000

Technical Dossier

Product Details And Specifications

ICS Triplex T9000 Trusted Series: Comprehensive Module Range and Technical Overview

The ICS Triplex Trusted T9000 Series is a Safety Instrumented System (SIS) platform deployed across the most demanding sectors of global heavy industry, including offshore oil & gas platforms, onshore refineries, petrochemical complexes, nuclear power generation facilities, and LNG terminals. Certified to IEC 61508 SIL 3 and compliant with IEC 61511, the T9000 architecture operates on a Triple Modular Redundant (TMR) voting principle — three independent processing channels with 2-out-of-3 (2oo3) logic — delivering fault tolerance without process shutdown. Installed base spans facilities operated by major energy companies across North America, Europe, the Middle East, and Asia-Pacific. The platform's long service history, combined with the extended operational lifecycles typical of SIS infrastructure (15–30 years), means that demand for T9000 spare parts and replacement modules remains active well beyond the series' commercial production window.

The Evolution of T9000 Trusted Series Architecture

ICS Triplex introduced the Trusted platform in the early 1990s as a dedicated TMR safety controller, distinct from standard DCS or PLC architectures. The original T9000 chassis established the backplane communication standard that all subsequent I/O modules adhere to, enabling backward compatibility across hardware generations. Early deployments used the T9110 Trusted Controller paired with discrete I/O modules such as the T9851 and T9431. As functional safety standards evolved from IEC 65A (Draft) through to the ratified IEC 61508:1998 and its 2010 revision, ICS Triplex updated firmware and module certification documentation without altering the physical backplane interface — a deliberate design decision that protected existing installed bases.

Rockwell Automation acquired ICS Triplex in 2007, subsequently integrating the Trusted platform into its safety portfolio alongside the Allen-Bradley GuardLogix line. Post-acquisition, the T9000 hardware continued under the Trusted brand with Rockwell support infrastructure. The platform entered a mature/end-of-active-production phase, with Rockwell directing new SIS projects toward the AADvance and later the 1715 Redundant I/O platforms. However, the T9000 remains in active service at thousands of sites globally, and Rockwell's lifecycle policy commits to spare parts availability and repair services for an extended period. Third-party MRO suppliers such as DriveKNMS provide an additional sourcing layer for modules that have exited Rockwell's active inventory.

T9000 Trusted Series Full Catalog & Functionalities (SKU List)

Controllers & Processors

• T9110: Trusted TMR Main Controller Module — primary CPU for 2oo3 voting logic execution
• T9111: Trusted TMR Controller with extended memory — enhanced data historian buffer capacity
• T9120: Trusted Communication Controller — manages inter-chassis and host DCS communication
• T9130: Trusted Expander Controller — extends I/O capacity across remote chassis configurations

Digital Input (DI) Modules

• T9431: 24 VDC Digital Input Module — field contact monitoring, 24-channel, SIL 3 rated
• T9432: 120 VAC Digital Input Module — high-voltage field device interface, 16-channel
• T9433: 24 VDC Digital Input Module with diagnostics — enhanced line fault detection per channel
• T9440: Solenoid Driver Input Module — monitors solenoid valve coil continuity and current draw

Digital Output (DO) Modules

• T9851: 24 VDC Digital Output Module — 16-channel TMR DO, drives solenoids and relays, SIL 3 certified
• T9852: 120 VAC Digital Output Module — AC load switching, 8-channel, for high-power actuator interfaces
• T9853: Relay Output Module — volt-free contact outputs, 8-channel, for hardwired interlock circuits
• T9854: High-Current Digital Output Module — extended current capacity for large solenoid banks

Analog Input (AI) Modules

• T9510: 4–20 mA Analog Input Module — 8-channel, HART-transparent, SIL 3 process variable acquisition
• T9511: RTD/Thermocouple Input Module — temperature measurement, 8-channel, multi-sensor type support
• T9512: High-Density Analog Input Module — 16-channel 4–20 mA, reduced chassis slot consumption

Analog Output (AO) Modules

• T9560: 4–20 mA Analog Output Module — 4-channel, TMR voted output for modulating control valves

Power Supply Modules

• T9200: Trusted Power Supply Module — redundant 24 VDC chassis power, hot-swap capable
• T9210: Trusted Auxiliary Power Supply — secondary power rail for high-load I/O configurations

Communication & Interface Modules

• T9300: Trusted Fieldbus Interface Module — Modbus RTU/TCP gateway for DCS integration
• T9310: Trusted PROFIBUS DP Interface — connects T9000 chassis to PROFIBUS process networks

Sourcing Hard-to-Find & Obsolete T9000 Trusted Series Parts

As the T9000 Trusted Series has transitioned from active production to lifecycle support status, procurement teams at refineries, power stations, and chemical plants face increasing lead times and limited OEM stock for specific modules. DriveKNMS maintains a dedicated inventory of T9000 series modules — including the T9851, T9431, T9110, T9510, and T9200 — sourced through certified MRO channels, decommissioned-plant asset recovery, and authorized distributor networks.

All modules are inspected, tested, and shipped with full traceability documentation. DriveKNMS provides emergency same-day quotation for critical plant shutdown scenarios and standard 3–5 business day lead times for planned maintenance procurement. For sites requiring long-term supply agreements covering multi-year maintenance windows, DriveKNMS offers consignment stock arrangements and annual supply contracts.

Quality Control for the T9000 Trusted Series Range

The T9000 Trusted Series employs a proprietary TMR backplane bus that requires module-level functional verification beyond standard power-on testing. DriveKNMS applies a structured test protocol for all T9000 modules prior to dispatch:

• Backplane communication integrity check: each module is seated in a T9000 test chassis and polled across all three TMR channels to verify correct voter response and channel isolation.
• Digital Output modules (including T9851): output channel activation is verified under resistive load at rated current; channel-to-channel isolation resistance is measured to confirm no cross-coupling faults.
• Digital Input modules: contact wetting voltage and input threshold levels are verified against OEM specification sheets.
• Analog modules: 4–20 mA linearity is tested at 0%, 25%, 50%, 75%, and 100% of span; HART communication pass-through is confirmed where applicable.
• Power supply modules: output voltage regulation under full load and ripple voltage are measured and recorded.
• All test results are documented and included with the shipment as a module test certificate.
