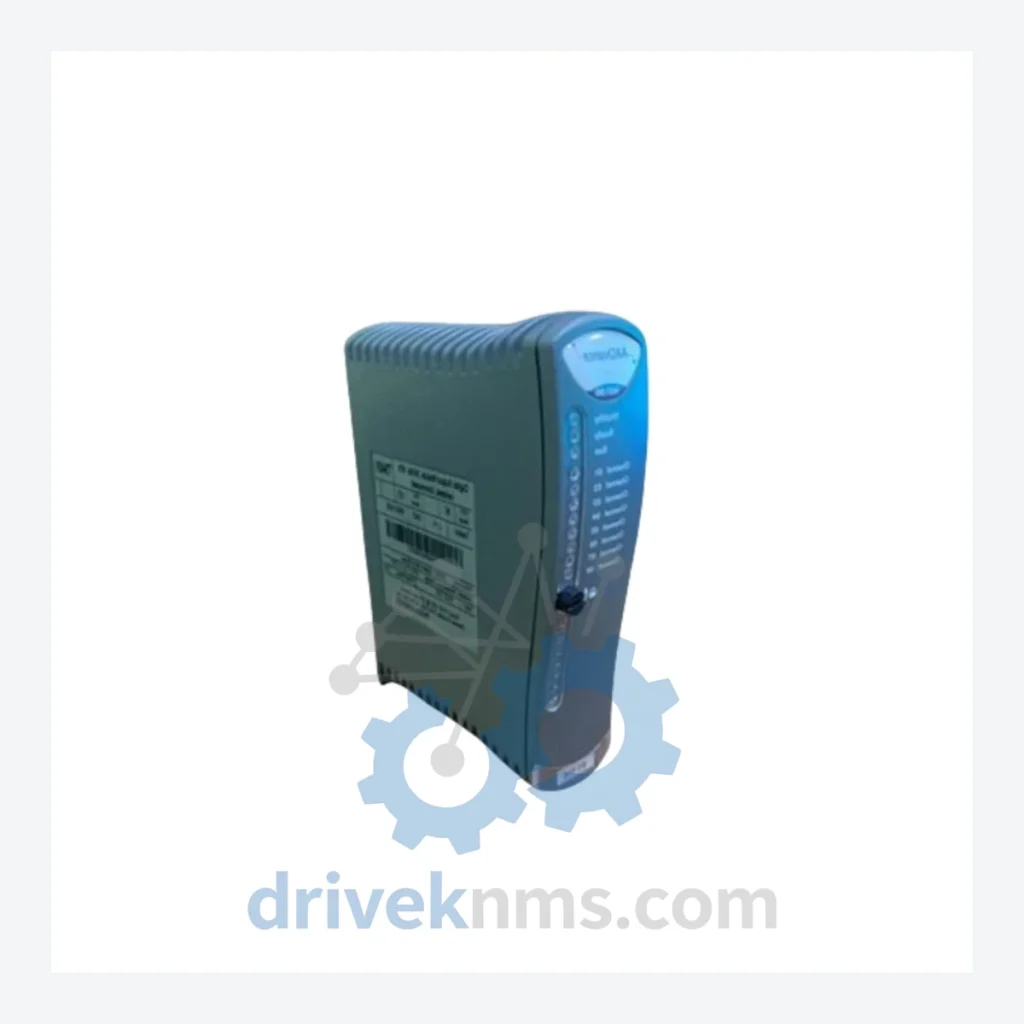

ICS Triplex T9882 Analogue Output Module – Obsolete Trusted TMR Spare Part

Technical Dossier

Product Details And Specifications

ICS Triplex T9882 Analogue Output Module – Obsolete Trusted TMR Spare Part

When a single analogue output module fails inside a Trusted TMR safety-instrumented system, the consequences extend far beyond the cost of the card itself. A forced migration off an ICS Triplex Trusted platform can trigger a full SIL re-validation exercise, new engineering drawings, updated HAZOP documentation, and months of commissioning downtime. Conservative industry estimates place the total cost of a mid-scale safety system replacement in the range of several hundred thousand to several million US dollars. The T9882 is a direct-fit, drop-in replacement that eliminates that exposure entirely — provided you can source one before your maintenance window closes.

DriveKNMS maintains verified stock of the ICS Triplex T9882. This is not a catalogue listing. Inventory is physically held and inspected before any unit ships.

Technical Specifications

Note: Only confirmed parameters are listed above. Electrical specifications not independently verified are intentionally omitted to protect equipment safety.

Solving the Discontinued Hardware Crisis

The ICS Triplex Trusted architecture was engineered for high-integrity process safety applications — oil and gas, petrochemical, nuclear, and power generation facilities where a spurious trip or undetected fault carries regulatory and human consequences. The TMR (Triple Modular Redundant) design means three independent channels vote on every output signal, providing fault tolerance that most modern DCS platforms do not replicate at the module level without significant architectural redesign.

When ICS Triplex was absorbed into the Rockwell Automation and later Schneider Electric supply chains, the Trusted product line entered end-of-life. Spare parts production ceased. Field engineers who built careers around this platform now face a narrowing window: source original hardware, or justify a full system replacement to management and regulators.

The T9882 analogue output module sits at a critical node in this architecture. It translates the voted digital result from the TMR processor into the 4–20 mA signals that drive final control elements — control valves, positioners, and actuators. There is no software patch that compensates for a failed output card. The hardware must be replaced with an identical module to preserve the validated safety function without re-engineering the loop.

Facilities that have invested in Trusted TMR infrastructure over the past two to three decades are not facing a technology problem. They are facing a supply chain problem. DriveKNMS exists specifically to solve that problem.

Condition & Reliability Assurance

Sourcing obsolete safety-system hardware from the secondary market carries legitimate risk. Our QA process is designed to surface and eliminate that risk before any unit reaches your facility.

5-Step Inspection Protocol for Obsolete Modules:

• Step 1 – Visual and Mechanical Inspection: Full examination of PCB, connector pins, and housing for physical damage, corrosion, or evidence of prior field failure.
• Step 2 – Electrolytic Capacitor Assessment: Aged electrolytic capacitors are the primary failure mode in stored or long-service electronics. Each unit is assessed for capacitor condition; units showing bulging, leakage, or elevated ESR are rejected or recapped before sale.
• Step 3 – Pin and Connector Integrity: Backplane connectors and I/O terminals are inspected and cleaned. Oxidised or deformed pins are a common cause of intermittent faults in reinstalled legacy hardware.
• Step 4 – Firmware Version Verification: Where accessible, firmware revision is recorded and cross-referenced against known compatible versions for the target Trusted system revision. Mismatched firmware can cause silent incompatibilities.
• Step 5 – Functional Bench Test: Units are powered and output signal integrity is verified prior to packaging. Only units that pass all five stages are offered for sale.

Key Features for System Maintenance

• Drop-in replacement: The T9882 installs directly into the existing Trusted chassis backplane. No mechanical modification required.
• No reprogramming required: The safety application logic resides in the Trusted processor, not the output module. Swapping the T9882 does not require a safety application download or re-validation of the control logic.
• Preserves SIL certification basis: Using an identical OEM part number maintains the as-built hardware configuration, avoiding the need to re-open the safety case for a like-for-like replacement.
• Avoids engineering redesign costs: A non-identical replacement would require loop re-engineering, updated P&IDs, and potentially a new HAZOP review. The T9882 eliminates all of that cost.
• Extends asset life by 5–10 years: Facilities that maintain a strategic spare inventory of critical TMR modules can defer system retirement decisions until a planned, budgeted migration window — rather than being forced into emergency replacement by an unplanned failure.

Extending Your Trusted TMR Asset Life: A Maintenance Strategy for Plant Management

The decision to retire a safety-instrumented system is rarely driven by the system's inability to perform its function. It is almost always driven by the inability to source spare parts. A structured spare parts strategy changes that equation.

Recommended approach for facilities operating ICS Triplex Trusted systems:

• Conduct a criticality audit: Identify which module types, if failed, would cause a process shutdown or safety system impairment. The T9882 analogue output module typically falls into the highest criticality tier.
• Establish a minimum spare holding: For critical output modules in a TMR system, a minimum of two spare units per chassis type is a defensible starting position. The cost of two T9882 units is a fraction of one day of unplanned downtime.
• Document firmware revisions: Record the firmware version of every installed module during the next planned maintenance window. This information is essential for sourcing compatible replacements from the secondary market.
• Negotiate long-term supply agreements: Secondary market inventory of obsolete parts depletes over time and does not replenish. Securing stock now, while it is available, is materially less expensive than sourcing under emergency conditions three years from now.
• Plan migration on your schedule: A facility with adequate spare coverage can negotiate a planned migration to a modern platform during a scheduled turnaround, rather than accepting the cost and risk of an emergency replacement. The difference in total project cost between a planned and unplanned migration is typically measured in multiples, not percentages.

FAQ

Q: What warranty applies to an obsolete module like the T9882?
A: DriveKNMS provides a 12-month warranty on all units sold as new surplus. Professionally refurbished units carry a 6-month warranty. Warranty terms cover functional failure under normal operating conditions and exclude physical damage caused after installation.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units are sourced through traceable supply channels. Physical markings, PCB construction, and component layout are verified against known-good reference units. We do not sell units where provenance cannot be established.

Q: Can you supply multiple units for a long-term spare holding?
A: Yes. Contact us with your quantity requirement. For larger orders, we can discuss staged delivery and pricing arrangements. We recommend securing your spare holding before available inventory is depleted — secondary market stock of the T9882 is finite.

Q: What if my system requires a specific firmware revision?
A: Provide your current installed firmware version when enquiring. We will cross-reference available stock and advise on compatibility before any order is confirmed.

Q: Do you ship internationally?
A: Yes. DriveKNMS ships globally with full export documentation. Contact us for shipping options to your facility location.
