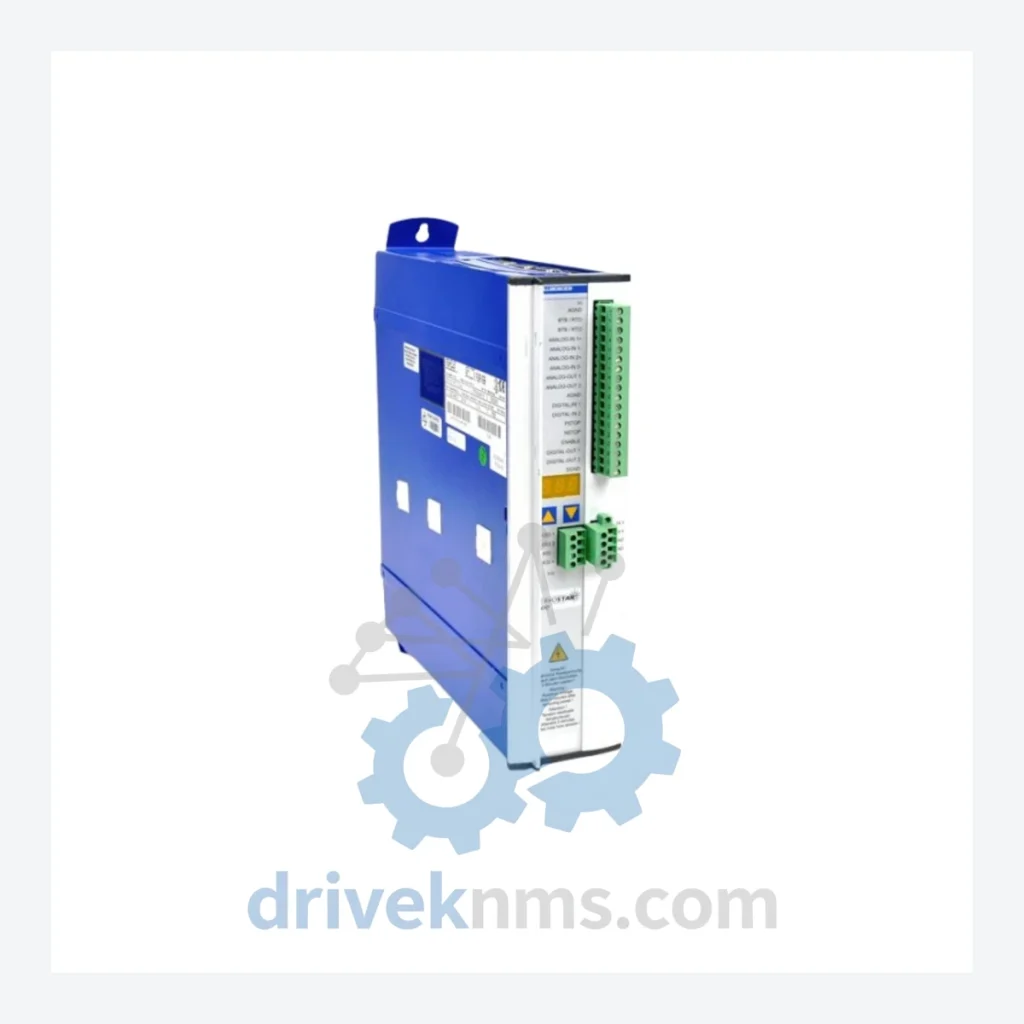

Kollmorgen SERVOSTAR 603 Servo Drive – Obsolete ServoStar 600 Spare Part

When a SERVOSTAR 603 fails on the production floor, the clock starts immediately. For facilities still running Kollmorgen ServoStar 600-series motion control architectures, this is not a component swap — it is a system-level crisis. A full migration away from a legacy ServoStar platform routinely involves new servo amplifiers, motor re-sizing, PLC reprogramming, mechanical recoupling, and weeks of commissioning downtime. Conservative estimates place that cost between $200,000 and $1,500,000 USD per line, depending on axis count and process complexity. DriveKNMS holds verified physical stock of the SERVOSTAR 603. Securing a tested spare today is the lowest-cost insurance policy available against that scenario.

Technical Specifications

Note: Parameters above are drawn from published Kollmorgen documentation. DriveKNMS does not fabricate or estimate electrical specifications. If your application requires confirmation of a specific firmware revision or hardware variant, contact us before ordering.

Solving the Discontinued Hardware Crisis

The ServoStar 600 series was Kollmorgen's flagship digital servo drive platform for over a decade, deployed extensively in packaging machinery, semiconductor handling, medical device manufacturing, and precision CNC applications. The SERVOSTAR 603 — the 3 A continuous variant — was the workhorse of low-to-mid torque single-axis and multi-axis gantry configurations.

Kollmorgen has since transitioned its product line to the AKD and AKD2 platforms. While technically superior, these replacements are not drop-in compatible with ServoStar 600 installations. Migrating a single axis from SERVOSTAR 603 to AKD requires: new drive hardware, motor feedback cable re-termination, Workbench software re-commissioning, and in most cases, PLC motion block rewriting. For a 10-axis system, this is a multi-week engineering project.

The practical consequence: every facility still operating ServoStar 600 hardware is one drive failure away from a forced, unplanned capital project. Maintaining a tested SERVOSTAR 603 spare on the shelf converts that risk from a production emergency into a two-hour maintenance event.

How to extend your ServoStar 600 system life by 5–10 years without a platform migration:

• Spare drive inventory: Hold a minimum of one SERVOSTAR 603 per three operational axes. Drive failure rates increase non-linearly after 15 years of service due to electrolytic capacitor degradation and IGBT thermal cycling fatigue.
• Preventive capacitor replacement: DC bus electrolytic capacitors in servo drives have a rated service life of 10–15 years under nominal load. Proactive replacement on a scheduled basis — rather than reactive replacement after failure — eliminates the most common failure mode in aging drives.
• Firmware version control: Document the exact firmware revision running on each operational SERVOSTAR 603. Replacement units must match firmware to avoid parameter incompatibility with existing motor tuning files.
• Environmental audit: Servo drives in enclosures with inadequate cooling or excessive vibration fail 3–5× faster than nameplate MTBF suggests. A $500 enclosure cooling upgrade can extend drive service life by years.
• Connector and cable inspection: Resolver and encoder feedback connectors are the second most common failure point in legacy servo systems. Annual inspection for pin corrosion and cable jacket cracking costs hours; ignoring it costs drives.

For plant managers facing board-level pressure to defer capital expenditure on automation upgrades, this maintenance posture represents a defensible, low-cost strategy to protect existing asset value while deferring a $500K–$2M migration project by five to ten years.

Condition & Reliability Assurance

DriveKNMS applies a 5-step verification protocol to all obsolete servo drive inventory before shipment:

1. Visual and mechanical inspection: Full external inspection for physical damage, connector pin condition, and enclosure integrity. Units with bent pins, cracked housings, or evidence of thermal events are rejected at this stage.
2. Electrolytic capacitor assessment: DC bus capacitors are tested for capacitance retention and ESR (equivalent series resistance). Capacitors showing >20% capacitance loss or elevated ESR are flagged for replacement before the unit is offered for sale.
3. Firmware version verification: The firmware revision is read and documented. This information is provided to the buyer to confirm compatibility with their existing installation.
4. Connector and pin corrosion inspection: All I/O, feedback, and power connectors are inspected under magnification. Corroded or oxidized contacts are cleaned or the unit is downgraded.
5. Functional power-up test: Where test fixtures permit, units are powered and basic drive enable/disable and fault response behavior is verified prior to shipment.

Units that pass all five stages are classified as Tested Surplus. Units that pass visual and firmware checks but cannot be fully powered are classified as Inspected Surplus and priced accordingly. Condition classification is disclosed on every order confirmation.

Key Features for System Maintenance

• Drop-in replacement: The SERVOSTAR 603 is a direct form-fit-function replacement for any existing SERVOSTAR 603 installation. No mechanical modification, no wiring change, no PLC reprogramming required.
• Parameter file compatibility: Existing motor tuning parameter files (.SDF format) load directly into a replacement unit of the same firmware revision, eliminating re-tuning labor.
• No engineering re-qualification: Because the replacement is identical hardware, most facilities do not require a formal engineering change order or re-validation process — a significant cost avoidance in regulated industries.
• Immediate production restoration: A pre-tested spare on the shelf means mean time to repair (MTTR) is measured in hours, not weeks. For a production line generating $50,000/day in output, that difference is material.

FAQ

What warranty applies to an obsolete SERVOSTAR 603?
DriveKNMS provides a 90-day warranty covering functional defects on all Tested Surplus units. Inspected Surplus units carry a 30-day DOA (dead on arrival) guarantee. Warranty terms are confirmed in writing on the order confirmation.

How do I confirm the unit is genuine Kollmorgen hardware and not a counterfeit?
All units sourced by DriveKNMS are inspected for authentic Kollmorgen labeling, correct PCB markings, and hardware revision consistency. We provide the unit's serial number and firmware revision prior to shipment so you can cross-reference against your existing installed base.

Should I buy more than one unit?
For any facility with more than three SERVOSTAR 603 axes in service, holding two spare units is the standard recommendation. Given that this part is discontinued and global surplus inventory is finite and declining, procurement lead times will increase over time. Units available today may not be available in 18 months.

Can you source specific firmware revisions?
We document firmware on all units in stock. Contact us with your required revision and we will confirm availability before invoicing.

Do you ship internationally?
Yes. DriveKNMS ships globally with full export documentation. Contact us for freight options and lead times to your location.
