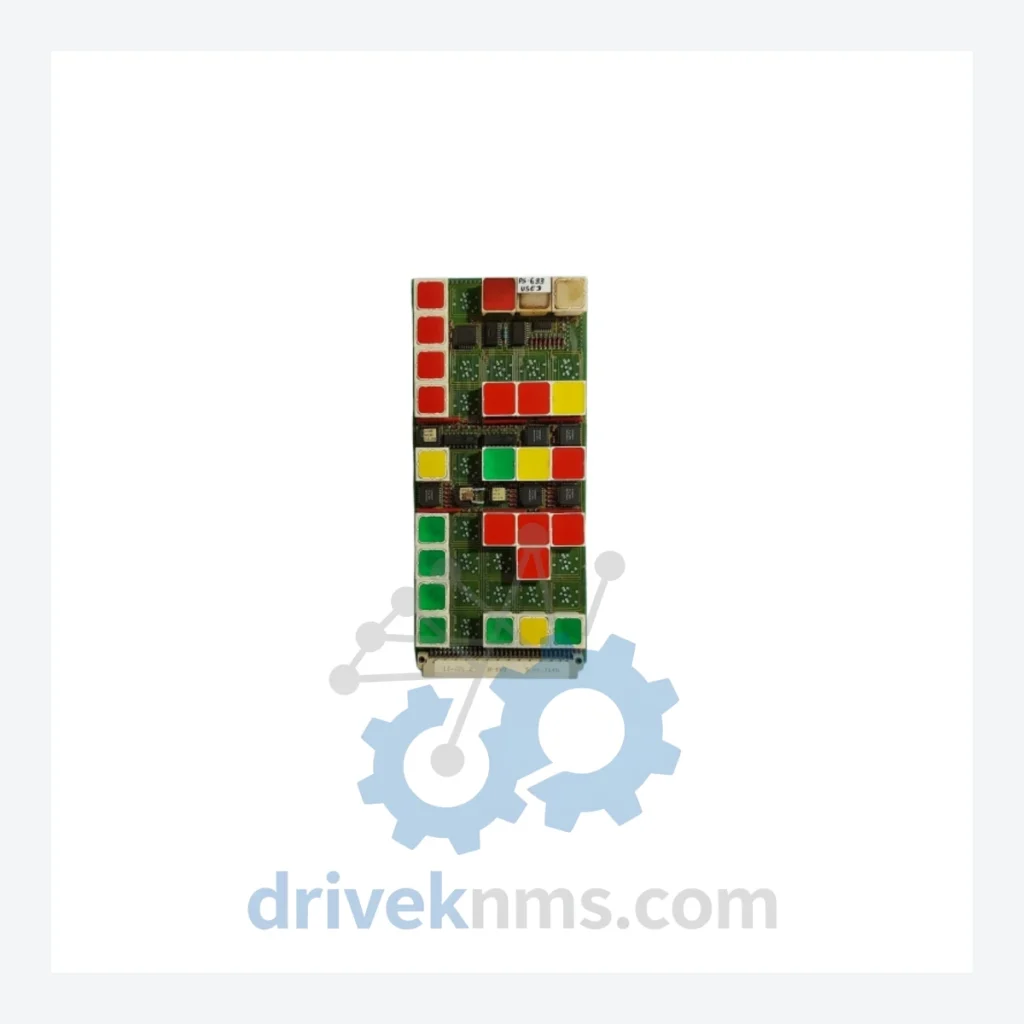

Kongsberg NA-1E221 Panel Card – Obsolete XL Series Spare Part

Technical Dossier

Product Details And Specifications

Kongsberg NA-1E221 Panel Card – Obsolete XL Series Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Technical Specifications

Note: Electrical parameters are verified only against confirmed datasheets. No speculative values are published. Contact us for full technical documentation.

Solving the Discontinued Hardware Crisis

Kongsberg XL-series flatbed cutting systems have been deployed across packaging, signage, and composites manufacturing for decades. The control architecture of these machines — including the panel card subsystem — was engineered for long service life, but OEM support has been formally withdrawn. The NA-1E221 panel card sits at the intersection of operator interface and machine control logic. Its failure does not produce a graceful degradation; it produces a hard stop.

The secondary market for Kongsberg XL panel cards is thin. Units that surface through auction or liquidation channels carry unknown service histories and no functional verification. DriveKNMS applies a structured intake and verification process to every unit before it enters available inventory.

Extending Automation Asset Life by 5–10 Years: A Maintenance Strategy for Plant Management

The economic case for extending the service life of a Kongsberg XL cutting system rather than replacing it is straightforward when the numbers are examined directly. A replacement platform — including installation, calibration, software licensing, and operator qualification — represents a capital outlay that most facilities cannot absorb outside of a planned capital cycle. The alternative is a proactive spare parts strategy built around the known failure modes of the existing system.

DriveKNMS recommends that facilities operating Kongsberg XL systems with more than 8 years of service maintain a minimum of one spare NA-1E221 panel card in controlled storage. Proper storage — cool, dry, anti-static packaging — preserves the component indefinitely. This is not a consumable. It is an asset protection measure.

Condition & Reliability Assurance

Every NA-1E221 panel card processed by DriveKNMS passes through a five-stage quality verification protocol before it is offered for sale:

• Stage 1 – Visual Inspection: Full board examination for physical damage, pin corrosion, solder joint integrity, and connector condition. Units with compromised connectors or corroded pins are rejected at intake.
• Stage 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in boards of this generation. Each capacitor is evaluated for ESR (equivalent series resistance) drift and physical signs of electrolyte leakage or case deformation. Boards with degraded capacitors are either recapped with matched-specification components or rejected.
• Stage 3 – Firmware Version Verification: Where firmware is embedded in the panel card, the version is documented and confirmed against known-compatible system configurations. Version mismatches that would cause integration failures are flagged before dispatch review.
• Stage 4 – Functional Bench Test: The board is powered and tested under controlled conditions against its specified operating parameters.
• Stage 5 – Pre-Shipment Documentation: Each unit ships with a condition report documenting the results of all four prior stages. This record travels with the part and supports your internal maintenance documentation.

Key Features for System Maintenance

• Drop-in replacement: The NA-1E221 is a direct form-fit-function replacement for the original Kongsberg XL panel card position. No mechanical modification to the host system is required.
• No reprogramming required: The panel card interfaces with the existing system architecture without requiring PLC reprogramming, parameter re-entry, or software reconfiguration. Installation restores the system to its prior operational state.
• Avoids engineering reconstruction costs: Substituting a compatible spare eliminates the need for system integrator engagement, new wiring harness design, or control cabinet modification — costs that accompany any platform migration.
• Preserves validated process parameters: Facilities with certified cutting processes — particularly in aerospace composites or regulated packaging — avoid the revalidation burden that accompanies a platform change.

Should I purchase more than one spare?
For facilities with a single Kongsberg XL system, one spare is the minimum defensible position. For facilities with multiple XL systems or those operating in high-criticality production environments, two spares is the standard recommendation. The secondary market supply of this part is finite and will not recover. Each unit that leaves the available pool does not return.

How should spare panel cards be stored?
Store in original anti-static packaging inside a sealed container. Maintain storage temperature between 10°C and 30°C with relative humidity below 60%, non-condensing. Avoid proximity to strong magnetic fields. Under these conditions, the component has an indefinite shelf life.
