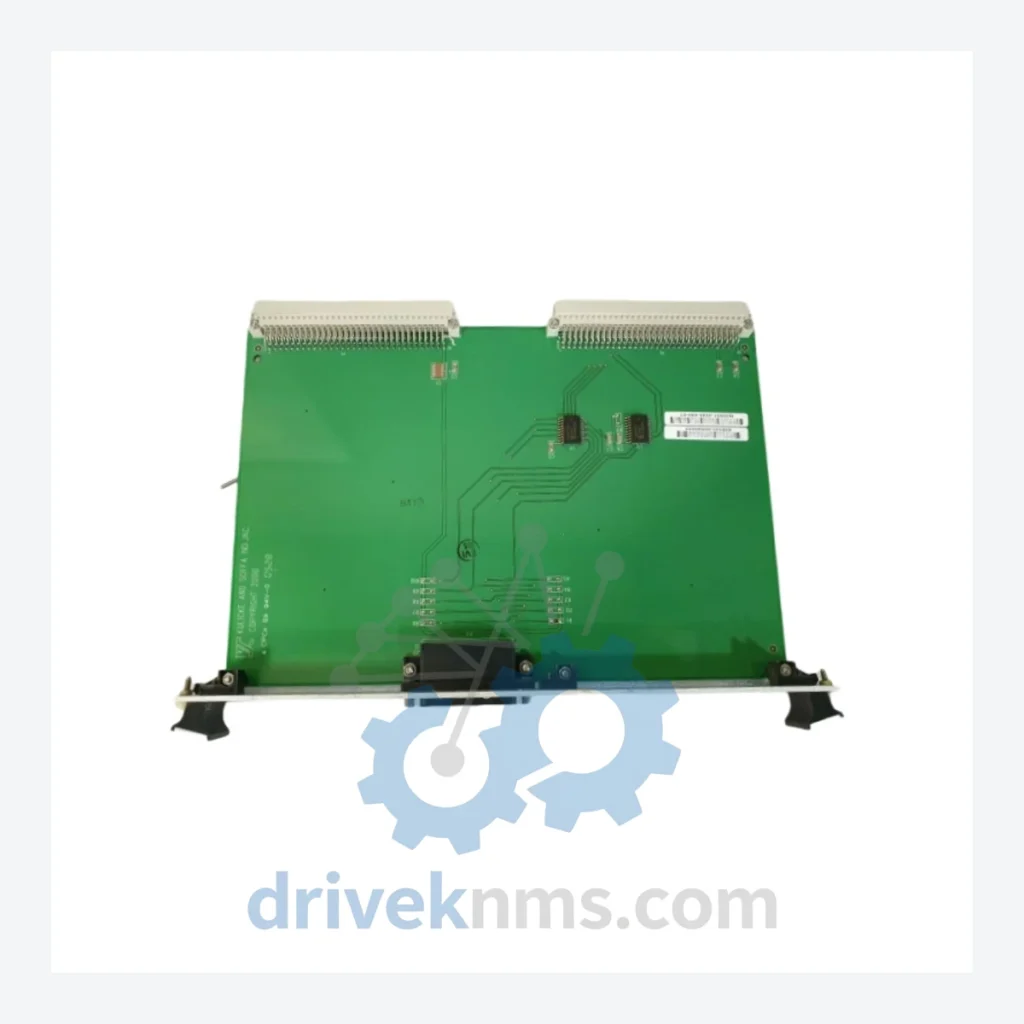

Kulicke & Soffa 8001 Series Boards

Technical Dossier

Product Details And Specifications

Kulicke & Soffa 8001 Series: Comprehensive Module Range and Technical Overview

The Kulicke & Soffa (K&S) 8001 series represents a family of printed circuit board assemblies and control modules deployed across K&S wire bonding platforms, including the 8020, 8028, 8060, and related automatic ball bonder systems. These boards are embedded in capital equipment operating in semiconductor back-end assembly lines — environments characterized by continuous multi-shift operation, sub-micron process tolerances, and zero-tolerance for unplanned downtime. The 8001 series is found in facilities ranging from OSAT (Outsourced Semiconductor Assembly and Test) factories in Southeast Asia to integrated device manufacturers (IDMs) in the United States, Japan, and Europe. Given the long service life of K&S wire bonders (often 10–20 years in production), the 8001 board series remains a critical spare parts category for maintenance engineers managing aging equipment fleets.

The Evolution of 8001 Series Architecture

The 8001 board series was developed as K&S transitioned its wire bonder platforms from analog servo control to fully digital, microprocessor-based motion and process control architectures during the late 1980s and through the 1990s. Early 8001 boards handled discrete I/O interfacing and analog signal conditioning for bond force, ultrasonic energy, and XY table positioning. As platforms evolved, the series expanded to include dedicated CPU boards, memory expansion modules, communication interface cards, and power regulation assemblies — each assigned a unique 8001-XXXX part number.

Compatibility across sub-generations is a known maintenance challenge: boards from early 8020 platforms are not always interchangeable with those from the 8028 or 8060 without firmware and jumper configuration verification. Engineers sourcing replacement boards must confirm the exact machine model, software revision, and board revision level before installation. DriveKNMS maintains cross-reference data to assist with this verification process.

By the mid-2000s, K&S had migrated newer platforms to updated board architectures, rendering many 8001-series boards end-of-life (EOL) from the OEM. However, installed base demand for these boards continues, as equipment replacement cycles in semiconductor packaging often extend well beyond OEM support windows.

8001 Series Full Catalog & Functionalities (SKU List)

The following SKUs represent confirmed part numbers within the Kulicke & Soffa 8001 board series. Each entry reflects a distinct functional role within the wire bonder control architecture:

8001-4246: Main control PCB assembly for K&S wire bonder servo and process interface.
8001-4200: CPU board; primary microprocessor module for machine control sequencing.
8001-4201: Memory expansion board; extends RAM capacity for process recipe storage.
8001-4210: Analog I/O board; handles bond force and ultrasonic transducer signal conditioning.
8001-4215: Digital I/O interface board; manages discrete sensor and actuator signals.
8001-4220: XY servo amplifier board; drives linear motor or stepper-based table positioning.
8001-4225: Z-axis (bond head) servo control board; regulates vertical bond head motion profile.
8001-4230: Ultrasonic generator board; produces and controls ultrasonic energy for ball bonding.
8001-4235: Vision system interface board; connects camera and image processing subsystem to main controller.
8001-4240: Power supply regulation board; conditions and distributes DC voltages to subsystems.
8001-4250: Communication interface board; supports RS-232/RS-422 host and peripheral connectivity.
8001-4255: Encoder feedback board; processes linear and rotary encoder signals for closed-loop control.
8001-4260: Temperature control board; manages bond stage and clamp heater regulation.
8001-4265: Interlock and safety I/O board; monitors machine safety interlocks and E-stop circuits.
8001-4270: Diagnostic and test interface board; provides in-system test access points for field service.
8001-4275: Backplane bus interface board; manages data routing across the internal VME or proprietary bus.
8001-4280: Operator interface controller board; drives front-panel display and keypad input logic.

Sourcing Hard-to-Find & Obsolete 8001 Series Parts

The majority of 8001 series boards have been discontinued by Kulicke & Soffa. OEM spare parts availability is limited or exhausted for most part numbers in this family. DriveKNMS specializes in lifecycle extension support for exactly this category of industrial electronics. Our inventory strategy for the 8001 series includes:

• Stocked new-surplus and refurbished units sourced from decommissioned equipment and authorized secondary market channels.
• Cross-reference matching to identify functionally equivalent boards across K&S platform generations.
• Board-level repair services for units with repairable failure modes (power section failures, failed ICs, damaged connectors).
• Long-term consignment and exchange programs for facilities managing multiple K&S wire bonder assets.

Facilities operating K&S 8020, 8028, or 8060 platforms are advised to establish a minimum buffer stock of critical 8001 series boards — particularly CPU, servo amplifier, and ultrasonic generator modules — given lead times of 8–24 weeks for sourced replacements and the production impact of unplanned board failures.

Quality Control for the 8001 Series Range

All 8001 series boards processed by DriveKNMS undergo a structured inspection and functional verification protocol prior to shipment:

• Visual inspection: Component-level examination for corrosion, cracked solder joints, damaged traces, and electrolytic capacitor condition.
• Power-on verification: Board is energized at rated voltage; supply rails and reference voltages are measured against OEM specifications.
• Functional bus test: Where applicable, boards are tested in a compatible backplane environment to verify data bus communication integrity.
• Analog signal path verification: For I/O and servo boards, input/output signal linearity and response are tested against documented K&S calibration parameters.
• Burn-in cycling: Refurbished boards undergo thermal cycling to screen for latent component failures before release.
• Documentation: Each unit ships with a test report, revision label verification, and traceability record.
