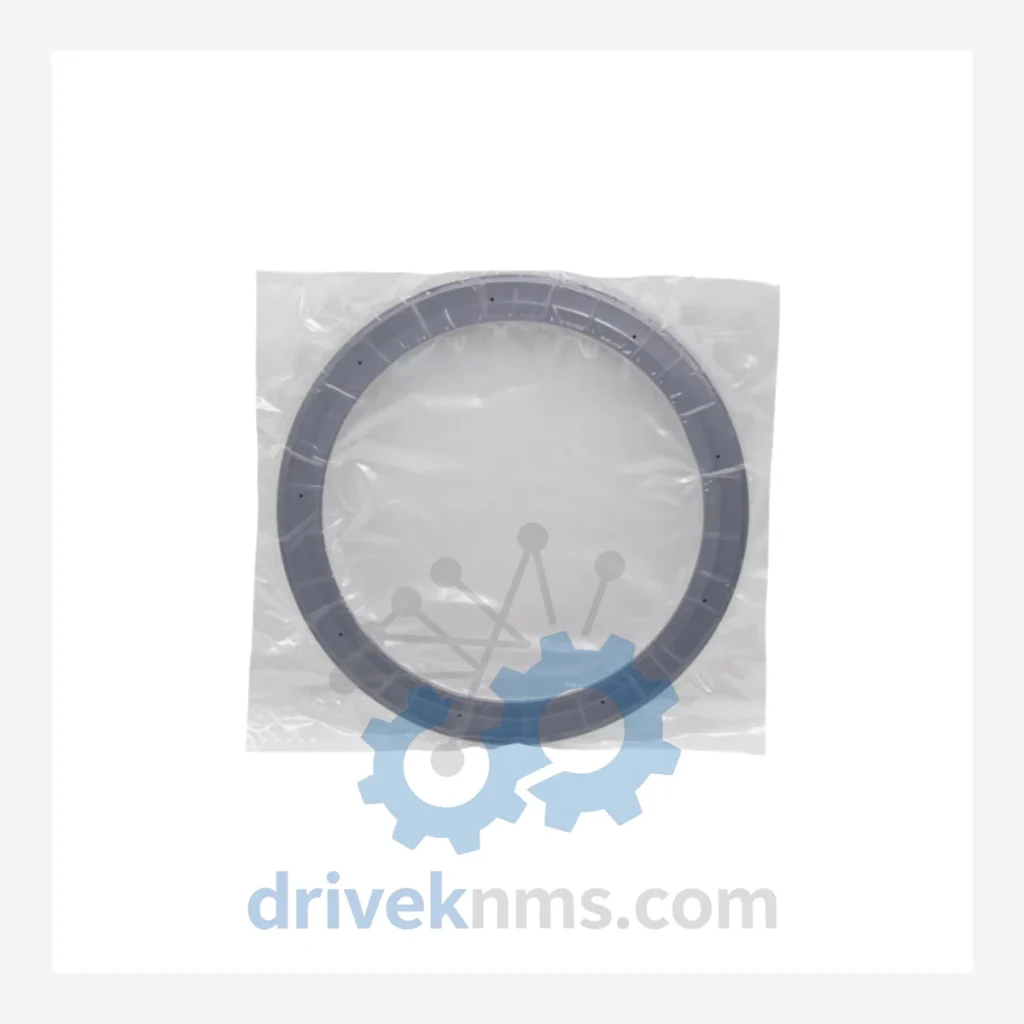

LAM RESEARCH 716-230577-371 0190-40177 0240-23355 Ring – Plasma Etch Chamber Spare Part

Technical Dossier

Product Details And Specifications

LAM RESEARCH 716-230577-371 0190-40177 0240-23355 Ring: Supply Continuity Strategy for Semiconductor Procurement Teams

LAM Research plasma etch chamber components — particularly consumable and semi-consumable rings — sit at the intersection of high criticality and chronic supply scarcity. The part numbers 716-230577-371, 0190-40177, and 0240-23355 are cross-referenced OEM identifiers for the same ring assembly used across LAM Research Kiyo, Flex, and 2300 series etch platforms. Fab procurement managers sourcing this part face a binary risk: accept extended lead times from the OEM channel, or qualify a reliable secondary-market supplier with documented traceability.

DriveKNMS operates a global industrial spare parts network with dedicated sourcing desks for semiconductor capital equipment. We maintain active stock positions and supplier relationships specifically for hard-to-find LAM Research consumables. This page is designed to give your procurement team the technical and commercial data needed to make a defensible sourcing decision — not a sales pitch.

Procurement Specifications

Cost Optimization & TCO Analysis

Procurement decisions for etch chamber rings are rarely about unit price alone. The real cost driver is unplanned downtime. A single unscheduled tool outage on a 300mm etch platform can cost a fab between USD $50,000 and $200,000 per day in lost wafer output, depending on utilization rate and product mix. Against that baseline, the price premium of sourcing through a verified secondary supplier — versus waiting 8–16 weeks for OEM replenishment — is economically trivial.

Spare Parts Turnover Rate: For high-utilization etch tools running 24/7, ring components typically require replacement every 200–500 RF hours. Fabs running lean PM schedules without buffer stock are the most exposed to supply disruption. DriveKNMS recommends maintaining a minimum of 1–2 units of critical consumables as safety stock, particularly for parts with OEM lead times exceeding 6 weeks.

Total Cost of Ownership (TCO) Considerations:

• Acquisition cost: DriveKNMS pricing is benchmarked against secondary market rates, typically 15–35% below OEM list price for equivalent-condition parts.
• Qualification cost: We provide full traceability documentation to support your incoming inspection and qualification process, reducing re-qualification overhead.
• Downtime risk cost: Confirmed lead time at order placement — not an estimate — is our standard commitment. This allows your maintenance planning team to schedule PMs with confidence.
• Disposal/exchange cost: We accept core returns on select refurbished parts. Ask about our exchange program at RFQ stage.

Quality Compliance & Logistics

Every shipment from DriveKNMS is backed by a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. We do not ship parts without accompanying documentation.

• Export compliance: All shipments are processed with formal export declarations, commercial invoices, and packing lists compliant with Chinese customs regulations and destination country import requirements.
• Payment flexibility: We accept T/T (wire transfer), L/C (letter of credit for orders above USD $10,000), PayPal, and Western Union. Multi-currency invoicing available in USD, EUR, and CNY.
• Logistics partners: DHL Express, FedEx International Priority, and UPS Worldwide — with typical transit times of 3–5 business days to North America, Europe, and Southeast Asia.
• Packaging: ESD-safe packaging for all semiconductor-grade components. Custom crating available for fragile assemblies.
• Customs support: We provide HS code classification assistance and can prepare documentation to support duty drawback or import exemption claims where applicable.

Why Procurement Managers Choose DriveKNMS

The semiconductor spare parts market has a well-documented counterfeit problem. Procurement managers who have been burned by substandard parts — particularly on critical chamber components — know that supplier qualification is not a formality. Here is what differentiates our sourcing model:

• Global sourcing network: We maintain relationships with authorized LAM Research distributors, certified refurbishers, and fab decommissioning channels across North America, Europe, Japan, South Korea, and Taiwan. When a part is not in our warehouse, we know where to find it.
• Part number cross-referencing: LAM Research uses multiple internal part number systems. Our engineering team verifies cross-references before shipment to prevent mis-shipment — a common failure point with generalist brokers.
• Financial compliance: We issue VAT-compliant invoices and can provide documentation required for capital expenditure approval workflows, including supplier qualification questionnaires and ISO-aligned quality records.
• No-surprise quoting: Our quotes include freight, insurance, and any applicable export fees. There are no hidden charges at invoice stage.

FAQ

Q: What are your payment terms?
A: Standard terms are 100% T/T in advance for first-time orders. For established accounts, we offer Net 30 or 50% deposit / 50% before shipment. L/C accepted for orders above USD $10,000.

Q: What does the 12-month warranty cover?
A: The warranty covers functional failure and manufacturing defects under normal operating conditions. It does not cover damage resulting from improper installation, process excursions, or use outside the specified operating parameters.

Q: Do you offer volume discounts?
A: Yes. Orders of 5+ units of the same part number receive preferential pricing. Contact us with your annual consumption forecast for a framework agreement discussion.

Q: What is your return and exchange policy?
A: Parts may be returned within 30 days of receipt if unused and in original packaging, subject to a restocking fee. Defective parts under warranty are replaced or credited at our discretion after inspection.

Q: Can you provide a certificate of conformance?
A: Yes, for new OEM parts. For refurbished parts, we provide a refurbishment report and functional test record. Specify your documentation requirements at RFQ stage.

Q: How do I confirm the part is compatible with my specific tool configuration?
A: Provide your tool serial number and chamber configuration at RFQ stage. Our technical team will verify compatibility before confirming the order.
