LAM Research 810-800256-004 System Module Card – Obsolete Semiconductor Spare Part

Technical Dossier

Product Details And Specifications

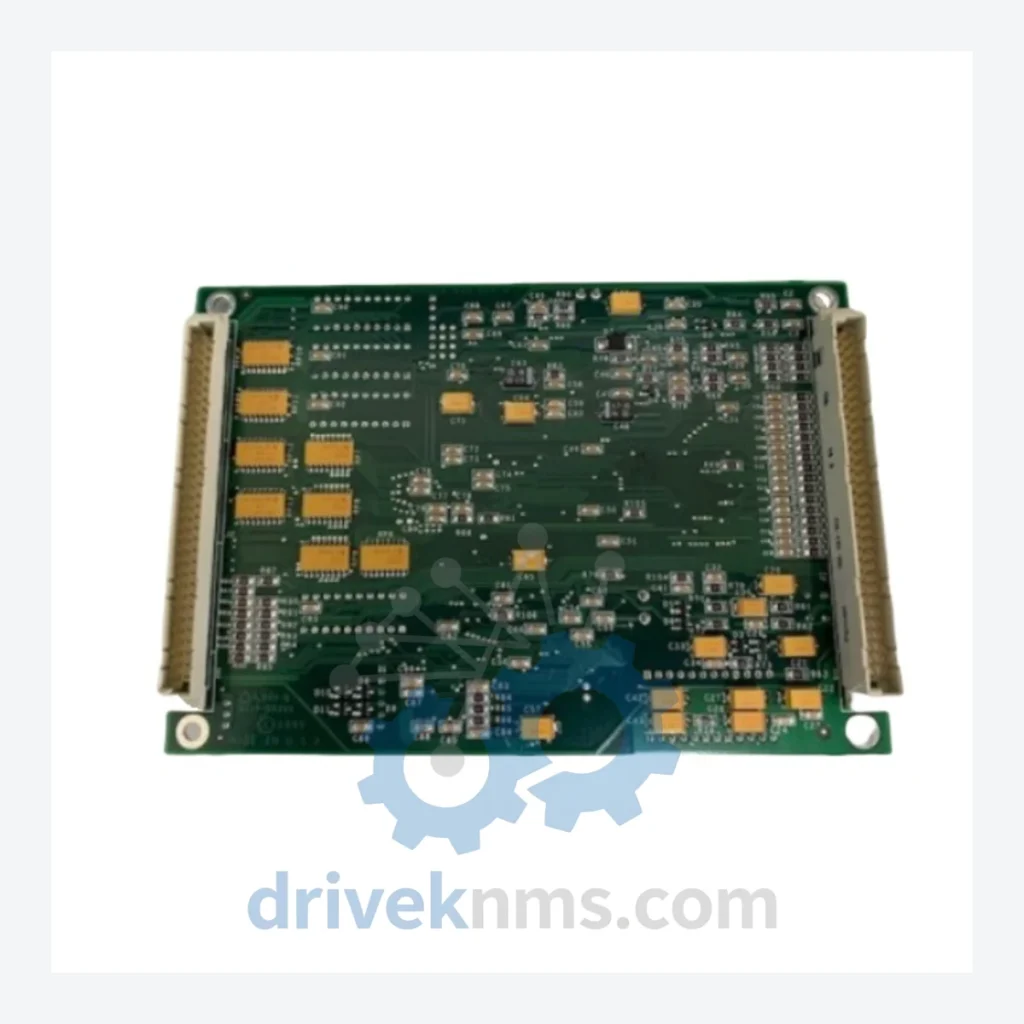

LAM Research 810-800256-004 System Module Card – Obsolete Semiconductor Spare Part

A single failed module card in a LAM Research etch or CVD system does not merely halt one tool — it can idle an entire fab bay. Replacing a legacy LAM Research platform with a modern equivalent carries capital expenditure that routinely exceeds several million USD, plus months of process re-qualification, new operator training, and lost wafer output. For fabs still running proven, process-stable legacy equipment, that cost is not a business decision — it is a crisis. DriveKNMS holds verified stock of the 810-800256-004 System Module Card, a component that has become increasingly difficult to source as LAM Research has discontinued support for older platform generations. Securing this part now is not a procurement task; it is asset protection.

Technical Specifications

Note: Electrical parameters specific to this card are not published in open documentation. DriveKNMS does not fabricate specifications. Buyers requiring detailed electrical data should request the original LAM Research service manual or contact our technical team for verified datasheet support.

Solving the Discontinued Hardware Crisis

LAM Research's legacy etch platforms — including systems from the Rainbow, TCP, and Versys families — remain in active production at fabs worldwide, particularly in mature-node and specialty semiconductor manufacturing. The 810-800256-004 module card sits within the system's control and signal routing architecture. When this card fails, the tool goes down. There is no modern drop-in substitute from the OEM; LAM Research's end-of-life policy means spare parts support has been withdrawn.

The industrial reality is straightforward: a fab running 200mm legacy equipment on mature nodes cannot simply swap to a 300mm platform. Process IP, customer qualifications, and equipment depreciation schedules all anchor the operation to existing hardware. The only viable path to continued production is a reliable supply of genuine spare parts.

Fabs that have established a strategic spare parts buffer for critical modules like the 810-800256-004 report tool availability rates that extend equipment productive life by 5 to 10 years beyond OEM support termination. The math is not complicated — one unplanned tool-down event lasting two weeks costs more in lost wafer output than a year's worth of proactive spare parts inventory. DriveKNMS specializes in sourcing, verifying, and holding exactly these components for exactly this reason.

Recommended maintenance strategy for plant managers facing legacy system retirement pressure:

• Conduct a criticality audit: identify every single-point-of-failure module on each legacy tool. The 810-800256-004 is a strong candidate for this list.
• Establish a minimum buffer stock of two units per tool for high-criticality cards. One unit in service, one on the shelf.
• Negotiate long-term supply agreements with specialist distributors rather than relying on spot-market availability, which becomes increasingly unreliable as a part ages.
• Document firmware and software revision compatibility for each spare before storage. A card pulled from a different system revision may require configuration alignment before installation.
• Schedule annual inspection of stored spares: check for electrolytic capacitor swelling, pin oxidation, and storage environment compliance (temperature, humidity, ESD protection).

Condition & Reliability Assurance

DriveKNMS applies a structured 5-step quality assurance process to all obsolete module cards before shipment:

• Step 1 – Visual and Mechanical Inspection: Full board inspection for physical damage, solder joint integrity, and connector pin condition. Corroded or oxidized pins are documented and addressed before any unit is offered for sale.
• Step 2 – Electrolytic Capacitor Assessment: Aging electrolytic capacitors are the primary failure mode in stored legacy PCBs. Each unit is assessed for capacitor swelling, leakage, and ESR deviation. Units with compromised capacitors are either recapped by qualified technicians or downgraded.
• Step 3 – Firmware and Revision Verification: Where accessible, firmware version and hardware revision markings are recorded and disclosed to the buyer. Compatibility with the target system revision is the buyer's responsibility to confirm, but we provide all available revision data to support that decision.
• Step 4 – Functional Bench Test (where applicable): Units that can be bench-tested against known-good reference configurations are tested. Test results are documented and available on request.
• Step 5 – ESD-Safe Packaging and Storage: All units are stored and shipped in anti-static packaging with desiccant. Storage conditions are controlled for temperature and humidity to prevent further degradation.

Key Features for System Maintenance

• Drop-in replacement: The 810-800256-004 is a direct OEM part number replacement. No hardware modification to the host system is required for installation.
• No re-programming required: Module cards of this type retain their configuration from the host system's control software. There is no standalone firmware flashing procedure required at the card level (verify with your system's service documentation).
• Avoids engineering re-qualification costs: Substituting a genuine OEM part number eliminates the process re-qualification burden that any non-OEM or platform-migration alternative would trigger. For a qualified production process, re-qualification is not a minor inconvenience — it is a multi-month, multi-engineer program.
• Extends capital asset life: Maintaining a functioning legacy tool with genuine spare parts is consistently the lowest-cost path to continued production on mature, depreciated equipment.

FAQ

Q: What warranty applies to an obsolete part like the 810-800256-004?
A: DriveKNMS provides a 90-day warranty against DOA (Dead on Arrival) and functional defects identified during our QA process. Warranty terms for refurbished units are confirmed in writing at the time of order. New Old Stock units carry the same 90-day DOA warranty. Extended warranty arrangements can be discussed for volume orders.

Q: How do I know the unit is genuine and not a counterfeit?
A: All units sourced by DriveKNMS are traceable to documented supply chain origins. We do not source from anonymous brokers. Physical markings, revision labels, and board characteristics are cross-referenced against known-genuine references. Buyers are encouraged to request photos of the specific unit prior to purchase.

Q: Should I buy more than one unit?
A: For any module card classified as obsolete with no OEM supply path, the answer is yes — if your operation depends on the tool. The cost of a second unit is a fraction of one day of unplanned downtime. For multi-tool fabs, a minimum buffer of two units per tool type is a defensible maintenance policy.

Q: Can you source additional units if I need more than you have in stock?
A: DriveKNMS maintains active sourcing networks for legacy semiconductor equipment components. Contact us with your quantity requirement and timeline, and we will provide a sourcing assessment.
