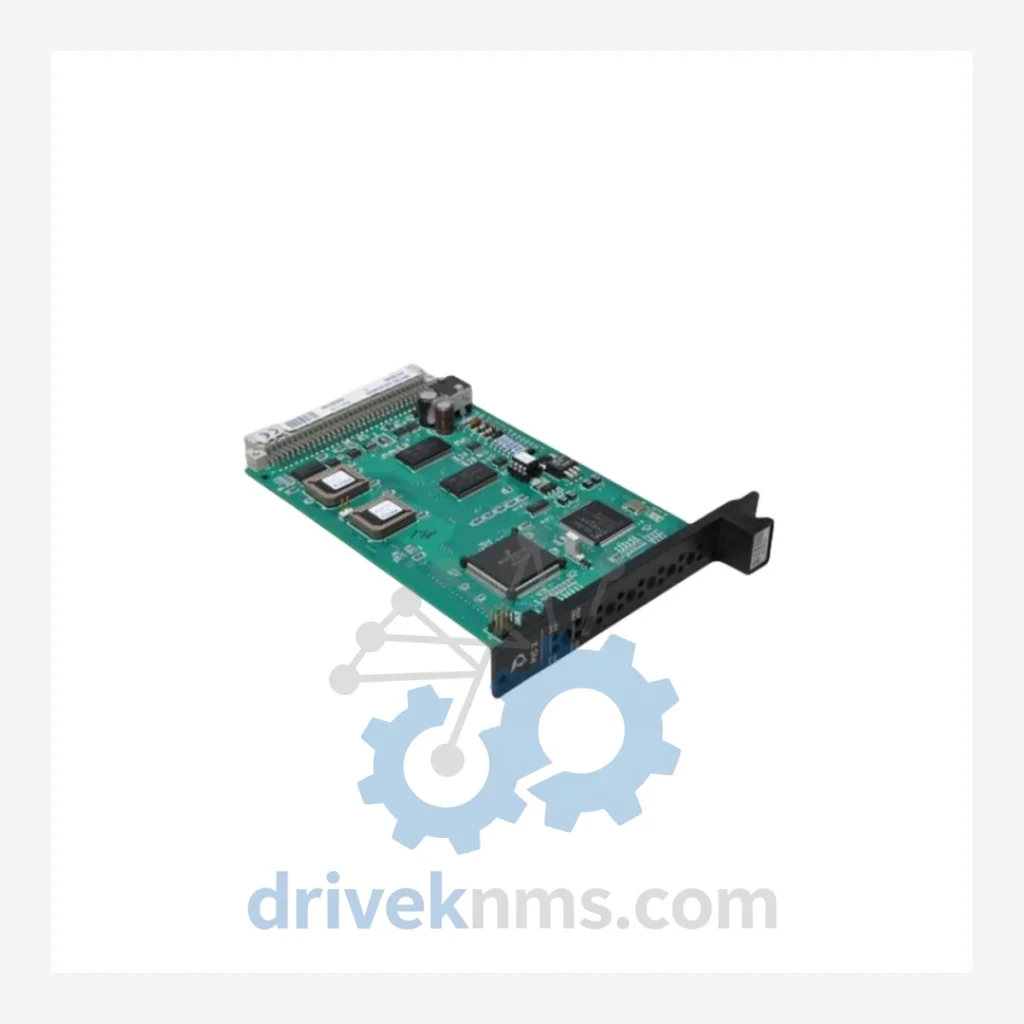

Metso A413240 PIC2 Board – Obsolete Neles/Metso Spare Part

When a PIC2 board fails inside a Metso valve controller, the immediate question is not where to find a replacement — it is whether the entire valve automation system must be decommissioned. For plants running Metso ND9000, NDX, or earlier Neles-branded intelligent valve controllers, this board is a core processing component. A single failed unit can halt a critical control loop. Sourcing a new-generation replacement requires not just capital expenditure on hardware, but engineering hours for reconfiguration, loop tuning, and process validation — costs that routinely exceed six figures before the line restarts. DriveKNMS holds verified stock of the A413240 PIC2 Board. This is not a catalog listing. It is a physical unit, inspected and ready to ship.

Technical Specifications

Note: Electrical parameters not published here to prevent misapplication. Contact us for full datasheet and compatibility verification before ordering.

Solving the Discontinued Hardware Crisis

The Metso ND9000 and NDX intelligent valve positioner platform was widely deployed across oil & gas, pulp & paper, and chemical processing facilities throughout the 1990s and 2000s. These positioners remain embedded in thousands of control loops globally. The PIC2 board — designated A413240 — serves as the primary processing and communication interface within the positioner housing. It handles position feedback processing, digital communication with the DCS, and local diagnostic functions.

Metso has discontinued this component through official channels. The OEM no longer stocks or supports it. For a plant manager facing a failed unit, the options narrow quickly: locate a verified spare on the secondary market, or commit to a full positioner replacement program. A full replacement program on a mid-sized process unit with 50–200 valve positioners carries a capital cost that is rarely below seven figures when engineering, commissioning, and process downtime are included.

The A413240 PIC2 board is not interchangeable with current-generation Metso positioner electronics. It is a generation-specific component. This is precisely why secondary market availability matters: there is no modern substitute that installs without system-level changes.

How to extend your Metso valve positioner assets by 5–10 years without a capital replacement program:

• Identify failure-prone boards proactively. The PIC2 board in high-vibration or high-temperature service locations degrades faster. Audit positioners in those zones first and hold at least one spare per 20 units in service.
• Establish a board-level spare pool. A pool of 3–5 verified A413240 units covers most mid-sized facilities for a multi-year horizon. The cost of this pool is a fraction of a single unplanned shutdown day.
• Do not wait for failure to source. Secondary market availability of obsolete boards is finite and decreasing. Each year, fewer verified units remain in circulation. Procurement decisions made under emergency conditions result in higher prices and longer lead times.
• Pair board replacement with positioner recalibration. When replacing a PIC2 board, use the opportunity to recalibrate the positioner and inspect the pneumatic components. This resets the service clock on the entire unit.
• Document firmware versions before removal. The PIC2 board may carry firmware that is specific to your DCS communication protocol. Record the version before any swap to ensure the replacement is configured identically.

Condition & Reliability Assurance

Obsolete boards sourced from the secondary market carry inherent risk if not properly evaluated. DriveKNMS applies a five-step inspection protocol to every A413240 PIC2 board before it is offered for sale:

• Step 1 – Visual and mechanical inspection. Full board examination for physical damage, burn marks, cracked solder joints, and connector pin condition. Boards with corrosion on edge connectors or pin headers are rejected at this stage.
• Step 2 – Electrolytic capacitor assessment. Electrolytic capacitors are the primary age-related failure point on boards of this generation. Each capacitor is checked for bulging, leakage, and ESR (equivalent series resistance) deviation. Out-of-spec capacitors are replaced with equivalent-rated components before the board proceeds.
• Step 3 – Firmware version verification. The firmware version present on the board is recorded and cross-referenced against known compatible versions for ND9000 and NDX positioner variants. Boards with corrupted or unreadable firmware are not offered for sale.
• Step 4 – Functional bench test. Where test fixtures are available, the board is powered and its core functions are verified. Communication outputs and feedback signal processing are checked against known-good reference values.
• Step 5 – Packaging and ESD protection. Boards are cleaned, wrapped in anti-static packaging, and shipped in rigid protective enclosures. Each unit is labeled with its inspection date and condition grade.

Key Features for System Maintenance

• Drop-in replacement. The A413240 PIC2 board installs directly into the existing Metso ND9000 or NDX positioner housing using the original mounting points and connectors. No mechanical modification is required.
• No reprogramming of the DCS required. Because the board maintains the same communication interface as the original, the DCS configuration does not need to be altered. The positioner reappears on the network with its existing tag and parameters.
• No engineering reconfiguration costs. Unlike a full positioner replacement, a board-level swap does not trigger loop recertification in most facility maintenance protocols. This keeps the repair within the maintenance budget rather than the capital budget.
• Preserves existing calibration data. In most cases, positioner calibration data is stored in a separate memory component and is not lost during board replacement. Verify this with your specific firmware version before proceeding.
• Maintains process continuity. A board swap can be completed during a planned maintenance window without requiring a full loop shutdown and recommissioning sequence.

FAQ

Q: What warranty applies to an obsolete board like the A413240 PIC2?
A: DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the obsolete status of this component, we recommend purchasing a minimum of two units to maintain a local spare.

Q: How do I know the board is genuine and not a counterfeit?
A: All units are sourced from decommissioned OEM equipment or verified distributor stock. Physical markings, board revision codes, and component layouts are cross-checked against reference documentation. We do not source from unverified brokers.

Q: Should I buy one unit or build a spare inventory?
A: For facilities with more than 10 Metso ND9000 or NDX positioners in service, holding a minimum of two A413240 PIC2 boards is a defensible maintenance strategy. Secondary market supply of this part is finite. Once current stock is exhausted globally, lead times for sourcing additional units will extend significantly — if units can be found at all.

Q: Can this board be used in positioners running on HART or fieldbus protocols?
A: The PIC2 board variant and its firmware determine protocol compatibility. Contact us with your positioner serial number and current firmware version so we can confirm compatibility before shipment.
