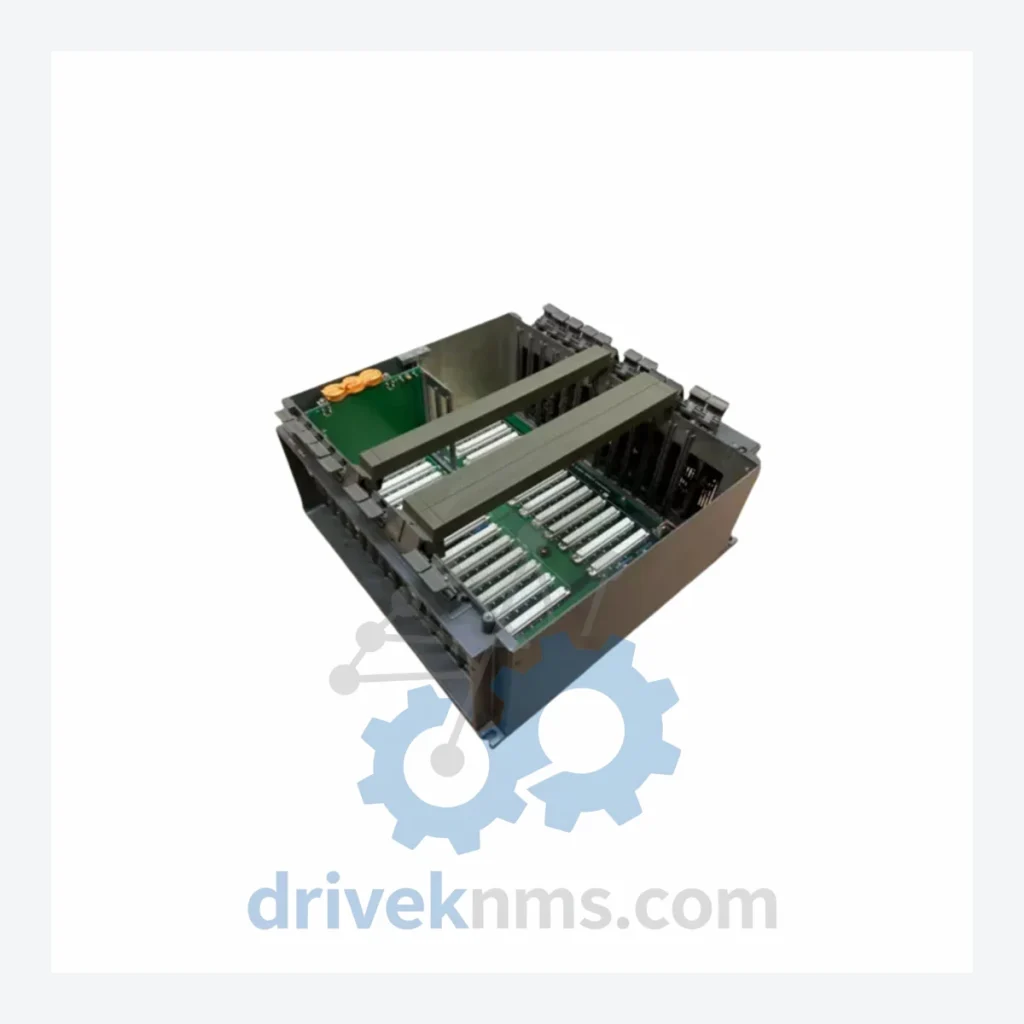

Mitsubishi FCA-335M Numerical Control System – Obsolete MELDAS Series Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FCA-335M Numerical Control System – Obsolete MELDAS Series Spare Part

A failed FCA-335M is not a parts problem. It is a production stoppage. Machine tools built around Mitsubishi's MELDAS CNC platform were engineered for decade-long service cycles, and many remain in active production today precisely because they were built to last. The problem is that Mitsubishi Electric discontinued the FCA-335M along with the broader FCA-series controller line, and the authorized supply chain dried up years ago. When this unit fails, the realistic alternative to sourcing a verified replacement is a full machine retrofit or replacement — a project that routinely runs into hundreds of thousands of dollars in engineering, downtime, and retraining costs, before a single part is machined.

DriveKNMS maintains sourced inventory of the FCA-335M for facilities that cannot afford that exposure. This is not a commodity listing. Stock is finite, condition-verified, and allocated on a first-confirmed basis.

Technical Specifications

Note: Electrical parameters specific to individual unit configurations are not published here to prevent misapplication. Contact our technical team for configuration verification before ordering.

Solving the Discontinued Hardware Crisis

The MELDAS FCA-series controllers were the backbone of a generation of precision machine tools. Facilities that invested in these machines in the 1990s and early 2000s built production processes around their specific G-code dialects, axis configurations, and PLC ladder logic. That institutional knowledge — embedded in programs, fixtures, and operator training — has real monetary value that disappears the moment the machine is retired.

The FCA-335M is not interchangeable with later MELDAS generations without significant re-engineering. Upgrading to a current Mitsubishi M800 or M80 series controller requires new servo wiring, parameter migration, PLC rewrite, and in many cases mechanical interface modifications. Independent estimates for a full retrofit on a mid-size machining center range from USD 40,000 to USD 120,000, excluding production downtime.

Holding one verified FCA-335M spare on the shelf eliminates that risk for a fraction of the cost. For facilities running multiple machines on the same platform, a structured spare parts reserve — covering the control unit, key I/O boards, and the power supply — can extend the productive life of the entire cell by 5 to 10 years. That is not a theoretical figure. It reflects the actual service extension achieved by maintenance teams that treat legacy CNC controllers as managed assets rather than consumables.

The strategic calculus is straightforward: the cost of a verified spare is measured in thousands. The cost of an unplanned retrofit is measured in hundreds of thousands. The cost of extended unplanned downtime while sourcing an obsolete part on the open market is measured in both dollars and customer relationships.

Condition & Reliability Assurance

Obsolete CNC controllers present specific failure modes that differ from standard electronic components. Our 5-step QA process is designed around the actual degradation patterns of this hardware class:

• Step 1 – Electrolytic Capacitor Assessment: Capacitor aging is the primary failure mechanism in controllers of this vintage. Each unit is inspected for capacitor bulge, leakage, and ESR deviation. Units with degraded capacitors are either reconditioned with matched replacements or rejected from inventory.
• Step 2 – Firmware Version Verification: The FCA-335M firmware version directly affects axis behavior and PLC compatibility. We document and disclose the firmware revision of each unit so your engineering team can confirm compatibility before installation.
• Step 3 – Pin and Connector Inspection: Connector corrosion and pin oxidation are common in stored units. All I/O connectors, bus connectors, and power terminals are inspected under magnification and cleaned or treated as required.
• Step 4 – Power-On Functional Test: Where test fixtures are available for this platform, units are powered and checked for normal initialization, display function, and communication response.
• Step 5 – Packaging for Long-Term Storage: Units intended for spare stock are packaged in anti-static shielding with desiccant, suitable for controlled-environment storage of 3–5 years without re-inspection.

Key Features for System Maintenance

• Drop-in replacement: The FCA-335M installs into the original mounting position without mechanical modification. No new cable harnesses, no panel rework.
• No reprogramming required: Existing NC programs, tool offsets, and PLC ladder logic transfer directly. Machine behavior is restored to pre-failure state without engineering intervention.
• Avoids retrofit cost: Replacing a failed FCA-335M with a verified spare eliminates the engineering, commissioning, and retraining costs associated with a controller upgrade — costs that are rarely fully recovered in the production budget.
• Preserves production continuity: For facilities with customer delivery commitments, the ability to restore a machine within hours rather than weeks has direct commercial value that exceeds the cost of the spare by a significant margin.

FAQ

What warranty applies to an obsolete part like the FCA-335M?
We provide a 90-day warranty covering functional defects identified during installation and initial operation. Given the discontinued status of this unit, warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not a counterfeit or misrepresented part?
Each unit is sourced through documented supply channels and inspected against original Mitsubishi Electric part markings. We provide unit photographs and, where available, original packaging documentation prior to shipment.

Should I buy more than one unit as a long-term reserve?
For facilities running more than one machine on the FCA-series platform, holding two units is a defensible maintenance strategy. Open-market availability of the FCA-335M will not improve over time. Each year, fewer verified units remain in circulation. Procurement cost and lead time both increase as supply contracts. Facilities that establish a reserve now do so at lower cost and with greater selection than those that wait for a failure event.

Can you source other MELDAS FCA-series components?
Yes. Contact us with your full bill of materials. We maintain sourcing relationships for FCA-series servo boards, power supply units, and I/O expansion modules.
