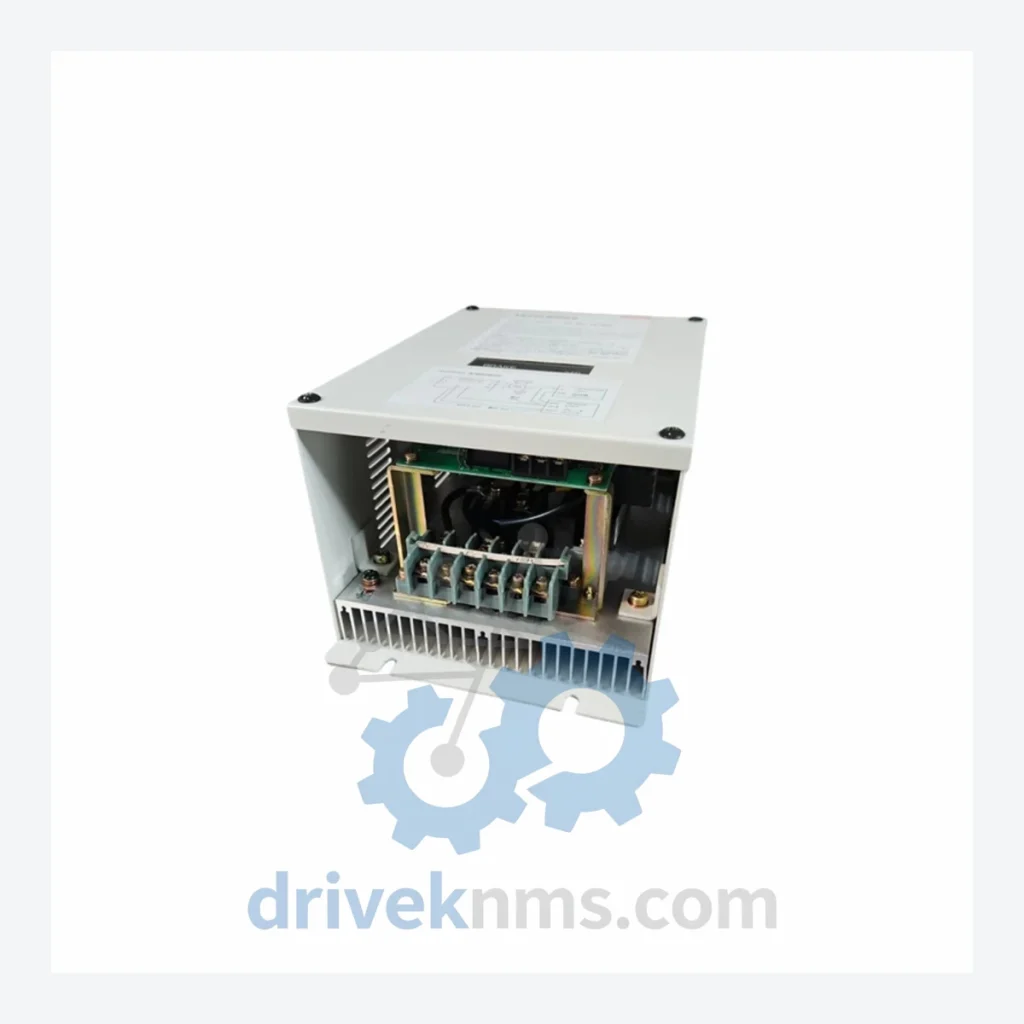

Mitsubishi FR-BU-H15K Brake Unit – FR-BU Series

Technical Dossier

Product Details And Specifications

Mitsubishi FR-BU-H15K Brake Unit: Supply Continuity Strategy & Asset ROI in a Constrained Global Market

The Mitsubishi Electric FR-BU-H15K is a dedicated dynamic braking unit designed for use with Mitsubishi FR-A and FR-F series variable frequency drives (VFDs) rated at 15kW. It is a critical safety and performance component in crane and hoist systems, vertical conveyors, injection molding machines, and heavy-duty industrial automation lines — sectors where uncontrolled deceleration is not an operational inconvenience but a safety liability.

As Mitsubishi Electric continues to evolve its inverter lineup, legacy brake units such as the FR-BU-H15K have become increasingly difficult to source through standard distribution channels. Procurement managers operating in steel, port logistics, automotive stamping, and process manufacturing face a clear risk: a single missing brake unit can ground an entire production cell. This page is designed to help you make a sourcing decision with full cost and risk visibility.

Procurement Specifications

Cost Optimization & TCO Analysis

When evaluating the total cost of ownership (TCO) for the FR-BU-H15K, procurement teams often focus exclusively on unit price. This is a costly oversight. Consider the full cost equation:

• Unplanned downtime cost: In crane or conveyor-dependent operations, a single day of downtime can exceed USD 15,000–80,000 in lost throughput, depending on industry. A brake unit failure without a spare on hand converts a USD 800–1,500 component into a five-figure operational loss.
• Spare parts turnover rate: The FR-BU-H15K has a relatively low turnover frequency in stable operations — typically one replacement per 5–8 years per drive. However, facilities running multiple 15kW drives should maintain at least one unit in buffer stock. The carrying cost of one spare is negligible compared to the downtime risk.
• Sourcing from DriveKNMS vs. spot market: Grey-market sourcing without traceability documentation introduces warranty voidance risk on your primary inverter. DriveKNMS provides full export documentation, original packaging where available, and a 12-month warranty — reducing your compliance exposure and total risk-adjusted cost.
• Refurbished vs. new: For non-critical auxiliary applications, tested-used units at 40–60% of new price are a viable TCO lever. We clearly disclose condition grades — no ambiguity.

Quality Compliance & Logistics

• 12-Month Warranty: All units shipped by DriveKNMS carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.
• Export Documentation: Full commercial invoice, packing list, certificate of origin, and customs declaration documents provided for every shipment. Suitable for L/C, T/T, and corporate PO-based procurement workflows.
• Multi-Currency Payment: USD, EUR, CNY, HKD accepted. Wire transfer, PayPal (for verified buyers), and trade finance arrangements available for qualified accounts.
• Global Logistics: DHL Express, FedEx International Priority, and UPS available. Standard transit: 3–5 business days to Europe/North America; 2–4 days to Southeast Asia. Air freight with full tracking and insurance included on request.
• Packaging: Anti-static foam packaging with moisture barrier. Fragile components double-boxed. Gross weight and dimensions declared accurately for customs compliance.

Why Procurement Managers Choose DriveKNMS

• Cross-brand sourcing network: We maintain active sourcing relationships across Japan, Germany, and the US for Mitsubishi, Siemens, ABB, Yaskawa, and Schneider Electric components. If FR-BU-H15K is unavailable, we can identify compatible alternatives (e.g., FR-BU2-H15K) and provide a formal compatibility assessment before you commit.
• Part number verification: Our technical team cross-checks your inverter model against the brake unit specification to prevent mismatched procurement — a common and expensive error when sourcing through non-specialist channels.
• Financial compliance: All transactions are invoiced through a registered entity with full VAT/tax documentation. Suitable for enterprise ERP procurement workflows requiring three-way match (PO / GR / Invoice).
• No minimum order quantity: Single-unit orders accepted. Volume pricing available for 3+ units — contact us for a tiered quote.

FAQ

Q: What payment terms are available?
A: Standard terms are 100% T/T in advance for first-time orders. For established accounts, 30% deposit with balance before shipment is available. Net-30 terms considered for verified corporate buyers with credit references.

Q: What does the 12-month warranty cover?
A: The warranty covers functional failure under normal operating conditions. It does not cover damage from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed within 5 business days of receiving the defective unit.

Q: Is volume pricing available?
A: Yes. Orders of 3+ units receive preferential pricing. Orders of 10+ units qualify for dedicated sourcing support and extended payment terms. Contact us with your quantity and delivery schedule for a formal quotation.

Q: What is your return policy?
A: Returns accepted within 30 days for units in original, uninstalled condition. Defective units under warranty are replaced or refunded at our discretion. Return shipping costs are covered by DriveKNMS for confirmed defective units.

Q: Can you provide a compatibility confirmation before I order?
A: Yes. Send us your inverter model number and nameplate data. Our technical team will confirm compatibility in writing before you place the order — at no charge.
