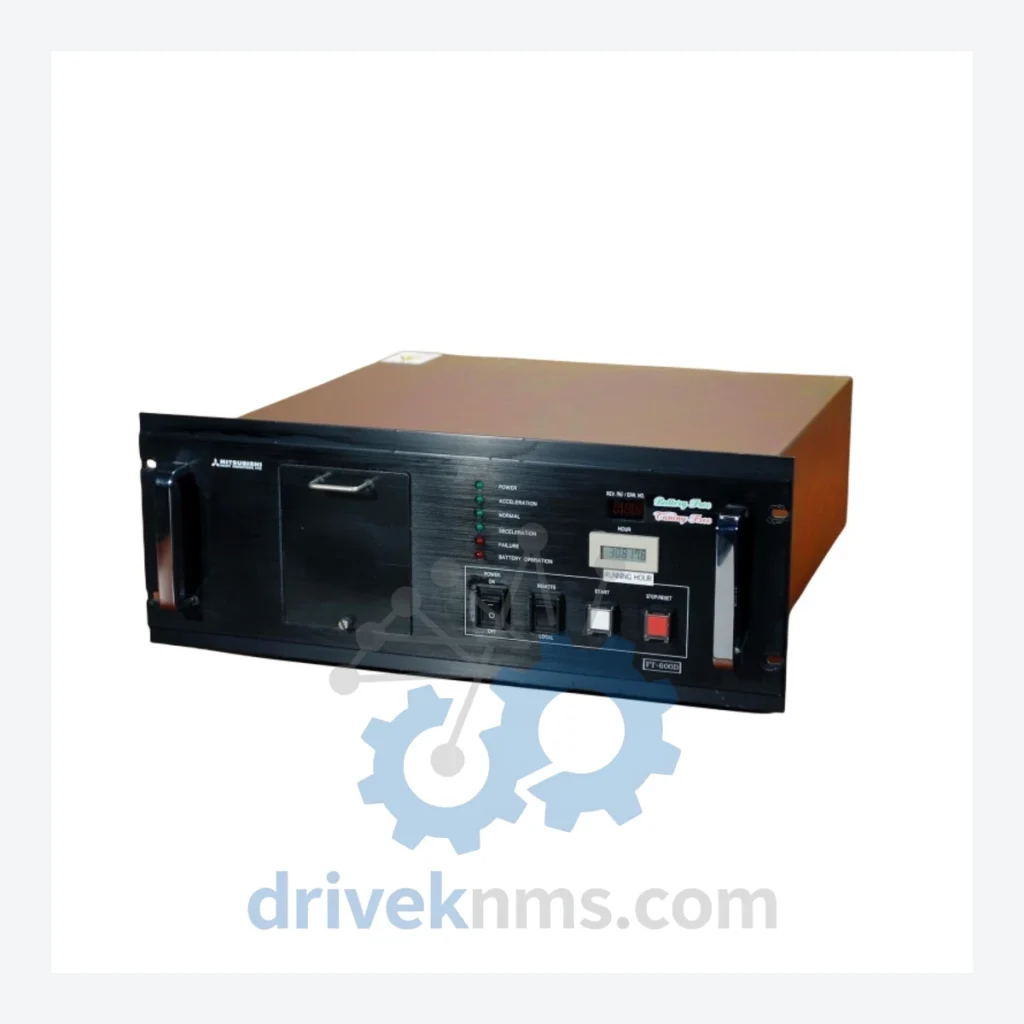

Mitsubishi FT-600D(HVP P.S) FTI-600D-T6 Turbomolecular Pump Controller – Obsolete Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi FT-600D(HVP P.S) FTI-600D-T6 Turbomolecular Pump Controller – Obsolete Spare Part

When a turbomolecular pump controller fails on a production line, the consequences extend far beyond the cost of the part itself. Semiconductor fabs, thin-film coating systems, and high-vacuum research installations built around Mitsubishi's FT-600D series face a hard reality: the controller is discontinued, and the entire vacuum sub-system is engineered around its specific communication protocol and power sequencing logic. A forced platform migration — new pump, new controller, new interlocks, new process validation — routinely costs $500,000 to several million USD in engineering hours, downtime, and requalification. DriveKNMS holds verified physical stock of the Mitsubishi FT-600D(HVP P.S) / FTI-600D-T6 / USAHEM-02-TE53 / 2706-LV2R turbomolecular pump controller. Securing one unit today is not a maintenance expense — it is asset protection.

Technical Specifications

Note: Electrical parameters (input voltage range, output frequency, control interface) are not published here to prevent misapplication. Contact our technical team for verified datasheet confirmation before ordering.

Solving the Discontinued Hardware Crisis

The Mitsubishi FT-600D controller series was designed to manage the acceleration, speed regulation, and protection functions of specific turbomolecular pump models in high-vacuum environments. Its control logic — including soft-start ramp profiles, over-temperature shutdown thresholds, and rotor speed feedback — is tightly coupled to the pump it drives. There is no universal drop-in substitute from a competing brand without re-engineering the interlock wiring and revalidating the process chamber's base pressure performance.

Facilities that built vacuum infrastructure around this controller in the 1990s and 2000s are now operating equipment that has long since been written off on paper but continues to generate production value every day. The OEM discontinued the FT-600D series, and authorized service channels have exhausted their buffer stock. The only viable path to keeping these systems operational — without a capital expenditure project — is sourcing verified spare controllers from specialist distributors who acquired stock before the supply window closed.

A single unplanned shutdown of a vacuum-dependent production line typically costs between $20,000 and $150,000 per day in lost throughput, depending on the industry. Against that figure, the cost of a pre-positioned spare controller is not a procurement decision — it is a risk management calculation.

Extending Asset Life 5–10 Years: A Maintenance Strategy for Plant Managers

For plant managers facing pressure to defer capital replacement projects, the following approach has proven effective in extending the operational life of vacuum systems dependent on discontinued controllers like the Mitsubishi FT-600D series:

1. Secure a minimum of two spare controllers. One unit goes into active standby, stored in a climate-controlled environment per manufacturer storage guidelines. The second is designated for bench testing and firmware verification. This eliminates single-point-of-failure exposure at the controller level.

2. Audit electrolytic capacitor condition annually. The primary failure mode in controllers of this era is electrolytic capacitor degradation — not mechanical wear. A qualified technician can measure ESR (Equivalent Series Resistance) on the main filter capacitors without full disassembly. Capacitors showing ESR values more than 2× their rated specification should be replaced proactively. This single intervention extends controller service life by 3–5 years in most cases.

3. Document firmware version and do not update. The FT-600D's embedded firmware was validated against specific pump models. Unauthorized firmware changes — even from OEM service tools — can alter speed ramp parameters and void any remaining warranty on the pump itself. Lock the firmware version in your maintenance records and treat it as a controlled configuration item.

4. Establish a controlled storage environment for spare parts. Turbomolecular pump controllers contain precision analog circuitry sensitive to humidity and electrostatic discharge. Spares should be stored at 15–25°C, relative humidity below 60%, in anti-static packaging. Improper storage is the leading cause of NFF (No Fault Found) failures when spare controllers are eventually installed.

5. Negotiate a long-term supply agreement with your spare parts distributor. If DriveKNMS holds multiple units, a reserved-stock agreement locks in pricing and guarantees availability for a defined period — typically 12–36 months. This converts an unpredictable procurement risk into a fixed maintenance budget line item.

Facilities that implement this five-point protocol consistently report 7–10 additional years of productive life from vacuum systems that would otherwise have been retired due to parts unavailability rather than mechanical end-of-life.

Condition & Reliability Assurance

Every Mitsubishi FT-600D controller unit shipped by DriveKNMS passes a five-stage inspection protocol before dispatch:

Step 1 – Visual and Mechanical Inspection: Full external examination for physical damage, connector pin corrosion, and PCB contamination. Units with corroded edge connectors or cracked housings are rejected at this stage.

Step 2 – Electrolytic Capacitor Assessment: ESR measurement on all accessible electrolytic capacitors. Units with out-of-specification capacitors are either recapped with equivalent-rated components or quarantined from sale.

Step 3 – Firmware Version Verification: The embedded firmware version is read and recorded. This information is provided to the buyer to confirm compatibility with their specific pump model before shipment.

Step 4 – Functional Power-On Test: Where test fixtures are available, units are powered and basic control outputs are verified. Results are documented and included with the shipment.

Step 5 – ESD-Safe Packaging and Documentation: Units are packaged in anti-static bags with desiccant, placed in rigid foam-lined shipping containers, and accompanied by an inspection report and firmware record.

Key Features for System Maintenance

The Mitsubishi FT-600D(HVP P.S) / FTI-600D-T6 is a direct replacement for the original controller in compatible systems. No PLC reprogramming is required. No interlock rewiring is required. No process revalidation is triggered by a like-for-like controller swap. This is the critical distinction between sourcing a genuine spare and attempting a cross-brand substitution.

Engineering teams that have attempted to retrofit alternative controllers into FT-600D-based vacuum systems report an average of 6–14 weeks of integration and revalidation work before the system returns to production-qualified status. At fully-loaded engineering rates, that represents $80,000–$250,000 in labor alone, before accounting for production losses during the requalification period. A verified spare controller eliminates this cost entirely.

FAQ

Q: What warranty applies to an obsolete spare part?
A: DriveKNMS provides a 90-day functional warranty on all inspected units. If a unit fails to perform its specified control functions within 90 days of delivery under normal operating conditions, we will replace or refund the unit. Extended warranty arrangements are available for volume orders — contact us to discuss terms.

Q: How do I confirm the unit is new or quality-refurbished, not a field-pulled scrap unit?
A: Every unit is accompanied by a written inspection report detailing its condition grade (New Old Stock, Tested Refurbished, or Tested Used), the results of each inspection step, and the firmware version recorded. We do not ship units without documentation. If a unit's condition cannot be verified to our inspection standard, it is not offered for sale.

Q: Should I buy more than one unit?
A: For any system where unplanned downtime costs exceed $10,000 per day, holding a minimum of one spare controller on-site is standard risk management practice. For critical production lines with no redundancy, two units is the defensible position. Global supply of the FT-600D series is finite and diminishing — prices for verified stock will not decrease over time.

Q: Can you source additional units if I need more than you currently stock?
A: DriveKNMS maintains active sourcing relationships across Asia, Europe, and North America for discontinued industrial components. Contact us with your quantity requirement and timeline, and we will provide a sourcing assessment within 48 hours.
