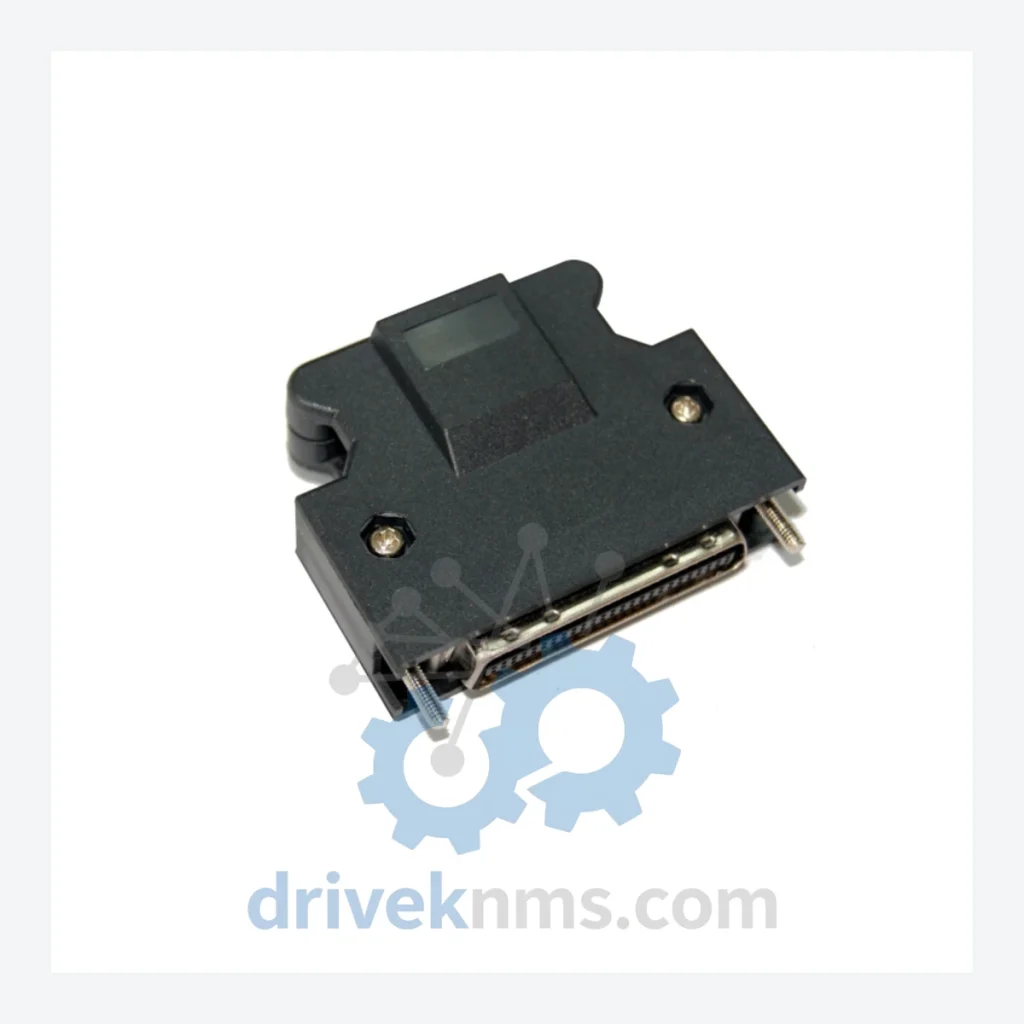

Mitsubishi MR-J3CN1 Signal Connector – Obsolete MR-J3 Spare Part

Technical Dossier

Product Details And Specifications

Mitsubishi MR-J3CN1 Signal Connector – Obsolete MR-J3 Spare Part

RFQ support for obsolete parts: Send the model number, required quantity and destination so DriveKNMS can confirm sourcing options before quotation.

Solving the Discontinued Hardware Crisis

Q: How are RFQ terms confirmed?
A: Quantity, required condition, documentation needs, destination and sourcing route are confirmed during RFQ review before quotation.

The CN1 connector is the command interface between the servo amplifier and the controller — whether that controller is a Mitsubishi Q-series PLC with a motion CPU, a CNC system, or a third-party pulse-train master. Without a functional CN1 connector, the servo amplifier cannot receive position commands, velocity references, or enable signals. The axis is dead.

Factory managers facing MR-J3 system retirement pressure from corporate asset teams often underestimate the true cost of migration. A like-for-like replacement with current MR-J4 or MR-J5 series drives requires new cables (the CN1 pinout changed), updated servo parameters, and in many cases, revised motion program timing due to different default filter settings. For a 20-axis system, this engineering effort alone can consume 200–400 hours of skilled commissioning time. Maintaining the existing MR-J3 platform with genuine spare connectors, by contrast, costs a fraction of that — and preserves the validated, proven motion behavior that your process depends on.

Extending MR-J3 system life by 5–10 years through strategic spare parts procurement is a defensible capital expenditure strategy. The MR-J3CN1 connector is a low-cost, high-leverage component in that strategy. A single unit in your maintenance store can prevent a multi-week production disruption.

Key Features for System Maintenance

• Drop-in replacement: The MR-J3CN1 is a direct physical and electrical replacement for the original CN1 connector on all MR-J3-□A and MR-J3-□B amplifiers. No wiring modifications, no parameter changes, no re-commissioning required.
• No reprogramming: Because the connector interface is identical to the original, the servo amplifier recognizes the controller without any parameter initialization. Your existing motion program runs without modification.
• Avoids engineering reconstruction costs: Replacing a connector rather than migrating to a new drive generation eliminates the need for cable harness redesign, motion program re-tuning, and safety validation re-runs — costs that typically dwarf the price of the spare part by orders of magnitude.
• Protects validated process performance: Your MR-J3-based motion system has been tuned and validated for your specific process. Maintaining it with genuine spare parts preserves that validated state. A platform migration resets that validation clock.

Q: How is condition confirmed before quotation?
A: Available condition, photos, test records and documentation are checked according to the requested model and sourcing channel before a formal RFQ response.

How do I know the part is genuine and not a counterfeit?
All MR-J3CN1 units are inspected against Mitsubishi Electric part number documentation. We do not source from unverified secondary markets. Provenance documentation is available on request for critical applications.

Should I buy more than one unit?
For any MR-J3 installation with more than four axes, holding a minimum of two MR-J3CN1 connectors in your maintenance store is prudent. Given that production has ceased and market inventory is finite, prices will not decrease over time. Procurement now, at current pricing, is the lowest-cost insurance available for your system's continued operation.
