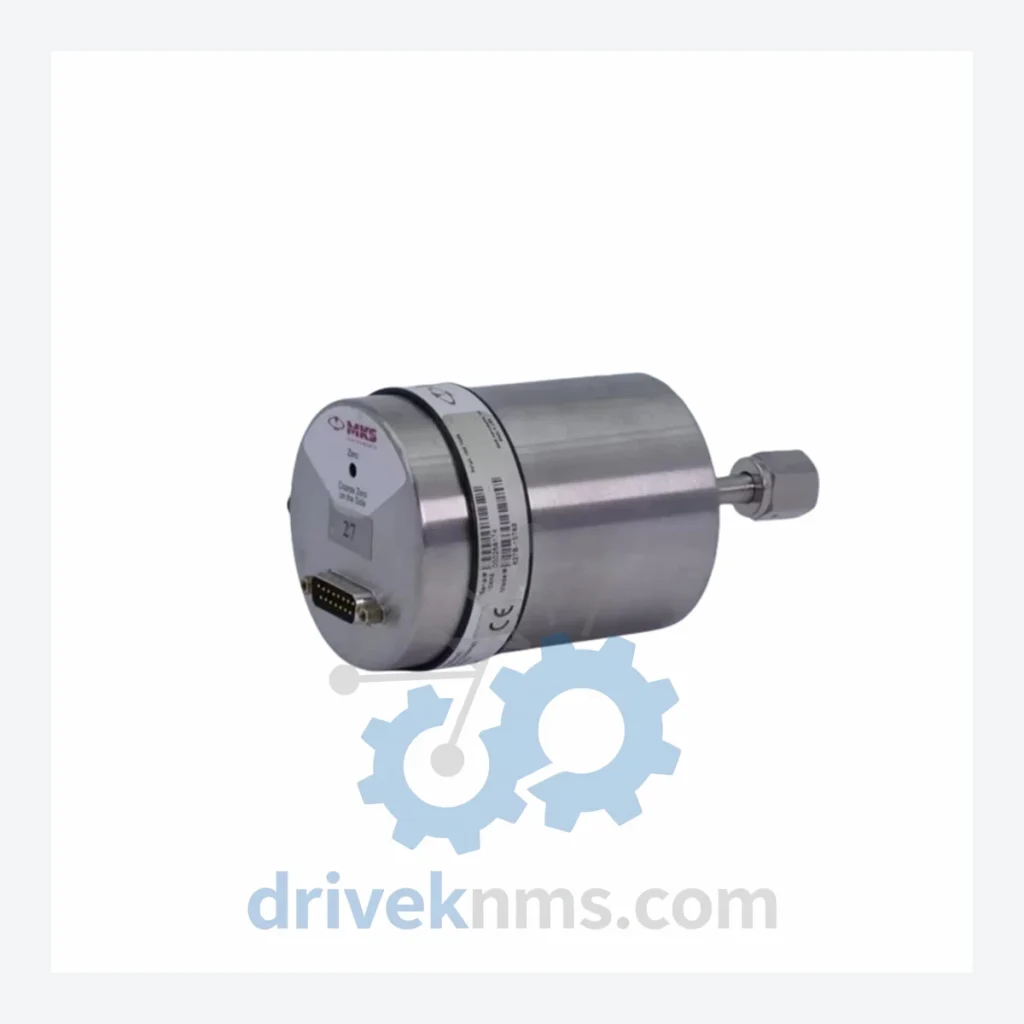

MKS 627B-15789 Pressure Transducer – Obsolete 627B Series Spare Part

Technical Dossier

Product Details And Specifications

MKS 627B-15789 Pressure Transducer – Obsolete 627B Series Spare Part

When the MKS 627B-15789 pressure transducer fails in a running process line, the consequences are not limited to a single instrument replacement. In semiconductor fabrication, chemical vapor deposition (CVD), and industrial vacuum systems where this unit has historically been deployed, a single unplanned shutdown can cascade into days of lost production, contaminated batch losses, and emergency engineering labor. A full process line upgrade triggered by one discontinued sensor module routinely exceeds USD $500,000 in capital expenditure — before accounting for requalification, downtime, and retraining costs.

DriveKNMS maintains verified physical inventory of the MKS 627B-15789. For plant managers and maintenance engineers operating legacy vacuum and process control infrastructure, this is not a commodity transaction. It is asset protection.

Technical Specifications

Note: Electrical parameters specific to the -15789 suffix configuration (full-scale range, process connection, heated/unheated variant) should be confirmed against your original purchase order or system documentation. DriveKNMS does not fabricate specifications.

Solving the Discontinued Hardware Crisis

The MKS 627B Baratron series was a standard pressure measurement solution across semiconductor, flat panel display, solar cell, and general industrial vacuum process equipment for over two decades. The 627B-15789 variant, identified by its specific full-scale range and process fitting suffix, was integrated into tools and control architectures that were engineered around its exact signal characteristics and mechanical interface.

When MKS Instruments discontinued the 627B line in favor of newer Baratron generations, facilities operating older process tools faced a structural problem: the replacement sensors carry different connector pinouts, different signal conditioning requirements, or different mechanical footprints. Substituting a current-generation unit is not a drop-in operation — it requires engineering review, signal conditioner reconfiguration, and in many cases, process requalification. For a facility running 24/7 production, that engineering work is measured in weeks and tens of thousands of dollars.

The only path that avoids this cost is maintaining a supply of original 627B-15789 units. A single spare on the shelf converts a potential multi-week shutdown into a two-hour maintenance event.

How to extend your automation asset life by 5–10 years using critical spare parts:

• Identify single points of failure. In any legacy process tool, map every sensor and actuator that has no current-generation drop-in equivalent. The 627B-15789 is a textbook example. These are your highest-priority procurement targets.
• Calculate the cost of downtime, not the cost of the part. A pressure transducer priced at a few hundred dollars protects a process tool worth $2–5 million. The procurement decision should be evaluated against the asset value and daily production output, not against the unit price of the spare.
• Establish a minimum stock level before the next scheduled maintenance window. Reactive procurement of obsolete parts under production pressure is the most expensive way to source them. Inventory held in advance costs a fraction of emergency sourcing fees and expedited freight.
• Document firmware and configuration baselines. For instruments with embedded configuration (signal range, output scaling), record the exact settings from a working unit before it fails. This eliminates reconfiguration risk when installing a replacement.
• Engage specialist distributors, not general catalogs. Obsolete MKS components do not appear on Digi-Key or Mouser. Sourcing requires specialist inventory networks. DriveKNMS maintains dedicated stock of discontinued process instrumentation for exactly this reason.

Condition & Reliability Assurance

Pressure transducers that have been in storage or removed from decommissioned equipment require systematic inspection before installation in a live process environment. DriveKNMS applies a 5-step QA protocol to all obsolete instrumentation prior to dispatch:

1. Electrolytic capacitor aging assessment. Capacitance manometers contain internal signal conditioning electronics. Electrolytic capacitors degrade over time regardless of use. Units are inspected for capacitor condition and, where necessary, reconditioned before shipment.
2. Firmware and configuration version verification. Where the unit carries embedded configuration data, the firmware version and output scaling parameters are documented and confirmed against the part number specification.
3. Connector and pin corrosion inspection. All electrical connectors and signal pins are inspected under magnification for oxidation, corrosion, and mechanical damage. Affected contacts are cleaned or the unit is rejected from inventory.
4. Mechanical integrity check. Process fittings, diaphragm housing, and sensor body are inspected for physical damage, thread condition, and seal surface integrity.
5. Functional verification. Where test equipment permits, units are powered and output signal stability is verified prior to packaging.

Key Features for System Maintenance

• Drop-in replacement: The 627B-15789 installs directly into the original mechanical and electrical interface. No process tool modification required.
• No reprogramming required: Signal output characteristics match the original unit. Your existing MKS signal conditioner (Type 270, 290, or equivalent) requires no reconfiguration.
• Avoids engineering rework costs: Using an original replacement eliminates the need for process requalification, signal conditioner replacement, or tool modification that a current-generation substitute would require.
• Protects production continuity: A verified spare in stock converts a critical failure event into a scheduled maintenance task.

FAQ

What warranty applies to an obsolete part?
DriveKNMS provides a 90-day warranty covering functional defects identified under normal operating conditions. Given the discontinued status of this part, warranty terms are confirmed in writing at the time of order.

How do I know the unit is genuine and not counterfeit?
All MKS 627B-15789 units in DriveKNMS inventory are sourced through documented supply chains — decommissioned OEM equipment, authorized surplus, and specialist distributor networks. Physical markings, date codes, and construction are verified against known-good reference units. We do not source from unverified gray-market channels.

New or refurbished?
Stock condition (new surplus, tested used, or professionally refurbished) is disclosed at the time of quotation. Refurbished units have completed the 5-step QA process described above. Condition is confirmed in the sales order before shipment.

Should I buy more than one unit?
For any process tool running 24/7 production, holding a minimum of two spare units is standard practice for discontinued instrumentation. The 627B-15789 will not return to production. Once existing global inventory is exhausted, the only remaining options are reverse engineering or process tool modification — both of which carry significant cost and risk. Procurement now, at known cost, is the lower-risk strategy.

Can DriveKNMS source other MKS obsolete parts?
Yes. DriveKNMS specializes in discontinued process instrumentation and control hardware across multiple OEM brands. Contact us with your full part number for availability.
