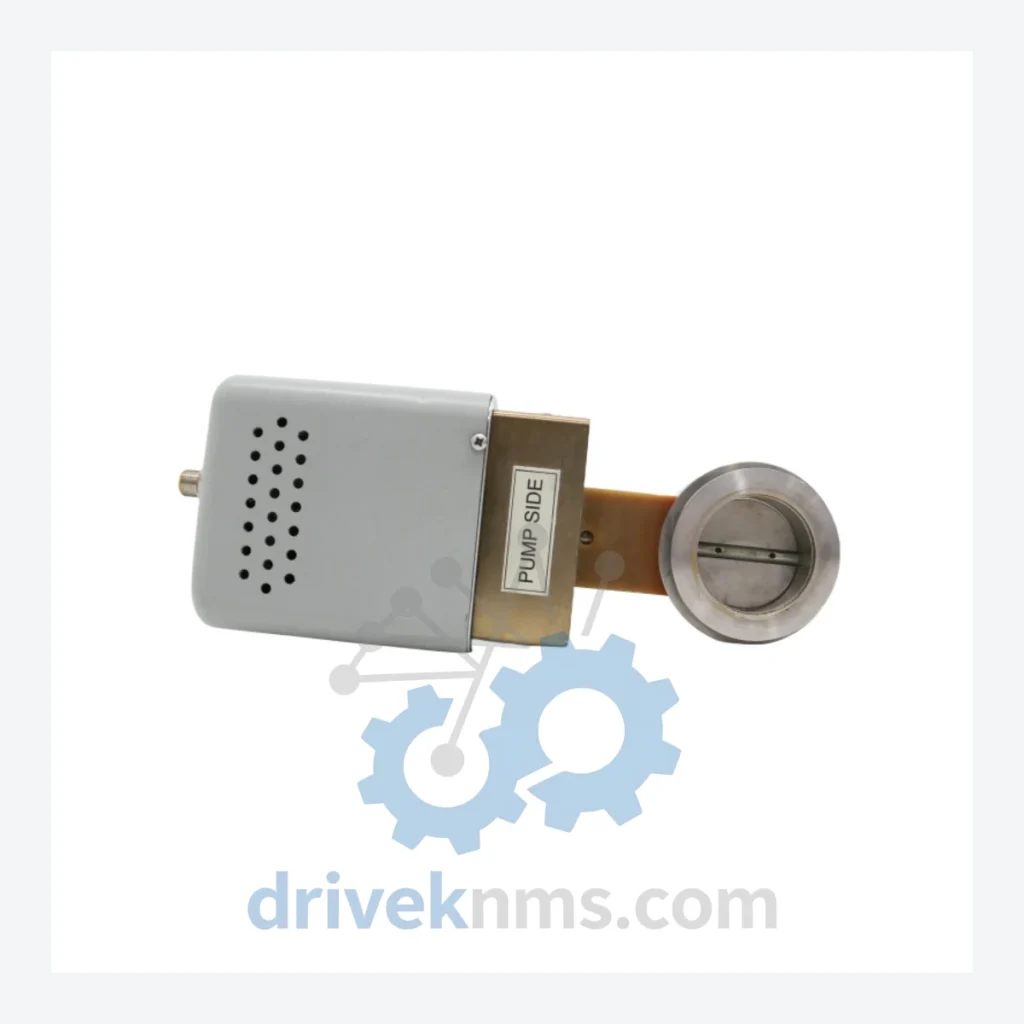

MKS Instruments TYPE 683 Exhaust Throttle Control Valve – Obsolete Semiconductor Process Spare Part

When an MKS Instruments TYPE 683 exhaust throttle control valve fails in a legacy CVD, PVD, or etch process chamber, the consequences extend far beyond a single component replacement. Semiconductor fabs and research institutions that built their process infrastructure around this valve face a stark choice: locate a verified spare, or commit to a full chamber retrofit that routinely runs into hundreds of thousands of dollars in engineering, requalification, and lost production time. DriveKNMS maintains verified inventory of this discontinued valve to give process engineers and maintenance managers a third option — one that protects capital assets without forcing a premature system overhaul.

Technical Specifications

Note: Electrical and mechanical parameters not listed here are not confirmed from available documentation. DriveKNMS does not fabricate specifications. Contact us for datasheet support.

Solving the Discontinued Hardware Crisis

The MKS Instruments TYPE 683 throttle valve was a standard component in vacuum exhaust management for process chambers used across semiconductor, flat panel display, and advanced materials deposition applications. Its role is to maintain precise chamber pressure during deposition and etch cycles — a function that directly governs process repeatability and yield.

When MKS discontinued this series, facilities running legacy tools faced a support gap with no direct OEM replacement path. The TYPE 683 is not a commodity valve; its dimensional envelope, actuation characteristics, and interface compatibility are specific to the chamber designs it was engineered for. Substituting an alternative valve without full requalification introduces process drift risk that most fabs cannot accept.

For plant managers and process engineers under pressure to retire aging equipment, the financial case for sourcing a verified spare is straightforward. A single chamber retrofit — including mechanical modification, new valve procurement, process requalification, and production downtime — typically costs between $150,000 and $500,000 USD depending on tool complexity. A verified TYPE 683 spare, properly refurbished and tested, extends that chamber's productive life by 5 to 10 years at a fraction of that cost.

The strategic approach for facilities managing legacy vacuum process tools is to establish a minimum buffer stock of critical wear components — throttle valves, gate valves, and pressure transducers — before the secondary market supply dries up entirely. The window for sourcing obsolete MKS TYPE 683 units in acceptable condition is finite. Facilities that act on procurement now avoid the position of negotiating from scarcity when the next failure occurs.

Condition & Reliability Assurance

DriveKNMS applies a 5-step quality assurance protocol to all refurbished obsolete parts before shipment:

• Step 1 – Visual and Mechanical Inspection: Full external examination for corrosion, seal degradation, actuator damage, and port integrity. Units with compromised body integrity are rejected at this stage.
• Step 2 – Electrolytic Capacitor Assessment: For units containing control electronics, capacitor aging is evaluated. Capacitors showing ESR drift or physical swelling are replaced with specification-matched components.
• Step 3 – Firmware and Control Board Verification: Where applicable, firmware version is confirmed against known-good references. Control board continuity and signal response are tested.
• Step 4 – Pin and Connector Corrosion Screening: All electrical connectors and signal pins are inspected under magnification. Oxidized contacts are treated; connectors with structural damage are replaced.
• Step 5 – Functional Validation: The valve is cycled through its operational range under controlled conditions. Actuation response, seating integrity, and control signal response are verified before the unit is cleared for shipment.

New Old Stock (NOS) units bypass refurbishment steps but undergo full inspection and functional validation before release.

Key Features for System Maintenance

• Drop-in Replacement: The TYPE 683 spare supplied by DriveKNMS matches the original dimensional and interface specifications, enabling direct installation without chamber modification.
• No Reprogramming Required: Compatible with existing chamber control systems. No PLC reconfiguration or process recipe adjustment is needed upon installation.
• Avoids Engineering Retrofit Costs: Maintaining the original valve design eliminates the need for mechanical adaptation, new process qualification runs, or control system software updates.
• Preserves Process Qualification Status: Facilities operating under ISO, SEMI, or customer-specific process qualification frameworks can maintain their qualified process baseline without revalidation triggered by hardware substitution.
• Long-Term Sparing Strategy: DriveKNMS can advise on minimum buffer stock quantities for facilities managing multiple tools with TYPE 683 installations.

FAQ

Q: What warranty applies to obsolete parts?
A: DriveKNMS provides a 90-day warranty on all tested refurbished units covering functional defects identified under normal operating conditions. New Old Stock units carry a 30-day inspection warranty. Warranty terms are confirmed in writing prior to shipment.

Q: How do I confirm the unit is new or quality-refurbished — not a field pull of unknown history?
A: Each unit shipped by DriveKNMS is accompanied by an inspection report documenting its condition classification (NOS or refurbished), the specific QA steps completed, and the technician sign-off. We do not ship untested field-pull units without explicit disclosure and customer agreement.

Q: Should we stock multiple units given the discontinuation status?
A: For facilities with more than one tool using the TYPE 683, stocking a minimum of two spare units is a defensible maintenance position. Secondary market availability of this part is declining. Procurement decisions made now carry significantly lower cost and lead-time risk than emergency sourcing after a failure event.

Q: Can DriveKNMS source other obsolete MKS Instruments components?
A: Yes. DriveKNMS specializes in hard-to-find and discontinued industrial automation and process control components. Submit your full BOM or part number list for availability assessment.
