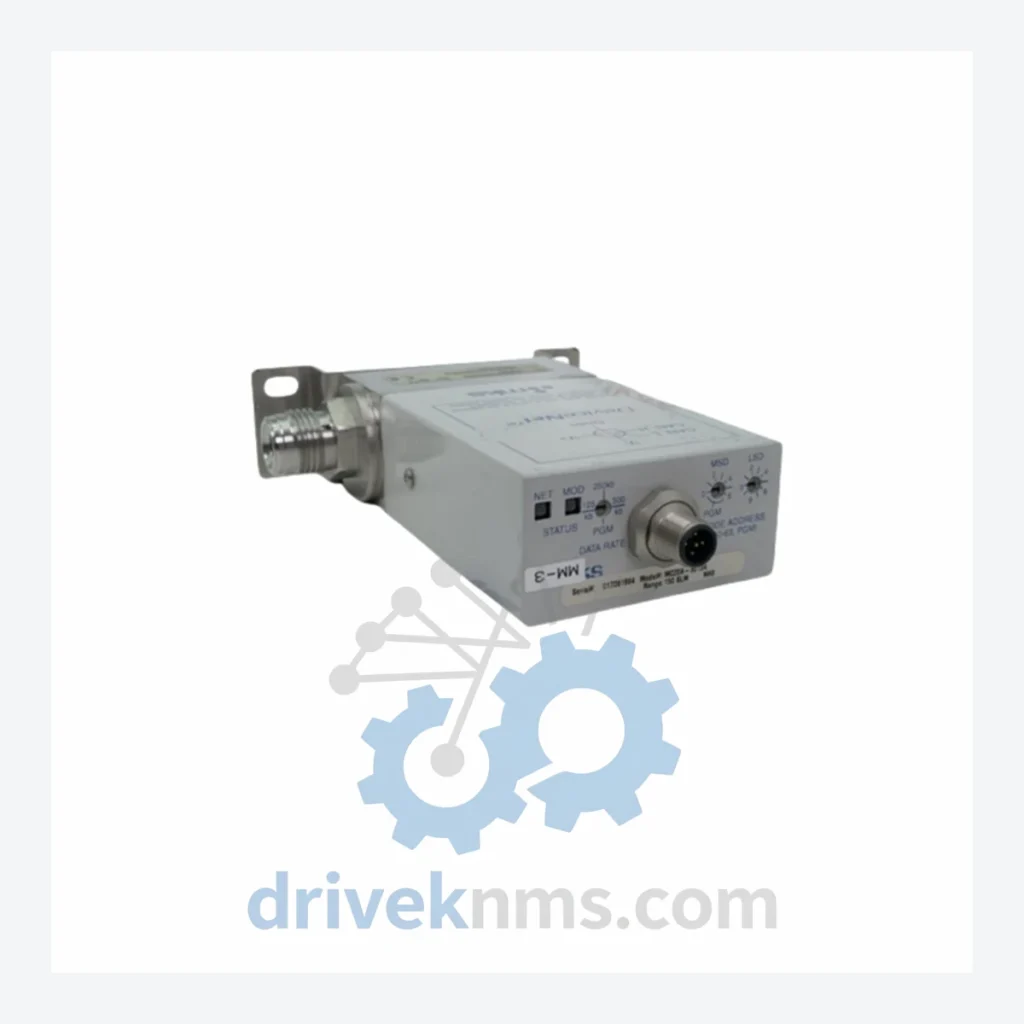

MKS MC20A Mass Flow Controllers MC20A-30190

Technical Dossier

Product Details And Specifications

MKS MC20A Series Technical Notes

The Evolution of MC20A Architecture

The MC20A series represents MKS Instruments' thermal mass flow control platform, utilizing a capillary tube bypass sensor design with a proportional solenoid valve actuator. Early production units operated on analog 0-5 VDC or 4-20 mA command/readback signals, with RS-232 digital interface options introduced in later firmware revisions. The series was designed for compatibility with MKS Type 247, 651, and PR4000 readout and control systems, enabling integration into legacy process tool architectures without full controller replacement.

As process nodes advanced in semiconductor manufacturing, the MC20A was progressively replaced by the MKS GE50A and later the MFC Gen 2 platform (Type 1179/1479 series), which offered improved response time, lower pressure drop, and DeviceNet/EtherNet/IP fieldbus compatibility. However, the MC20A remains in active service in installed tools where retrofit costs are prohibitive, making long-term spare parts availability a critical operational requirement. The -30190 suffix in MC20A-30190 denotes a specific gas calibration and full-scale range configuration, typically nitrogen-equivalent at a defined sccm rating.

MC20A Full Catalog & Functionalities (SKU List)

The following SKUs represent verified, commonly sourced configurations within the MKS MC20A series. Each unit is a thermal mass flow controller with integrated valve, calibrated for a specific gas and full-scale flow range.

• MC20A-30190: N2-calibrated MFC, standard analog I/O, 1/4 inch VCR fittings, process tool OEM configuration
• MC20A-01000: 1000 sccm N2 equivalent, 0-5 VDC signal, stainless steel wetted parts
• MC20A-02000: 2000 sccm N2 equivalent, analog control, low-pressure drop valve assembly
• MC20A-00500: 500 sccm N2 equivalent, precision capillary sensor, solenoid valve actuator
• MC20A-00200: 200 sccm N2 equivalent, high-accuracy thermal sensor, 4-20 mA option
• MC20A-00100: 100 sccm N2 equivalent, low-flow capillary bypass, analog readout compatible
• MC20A-00050: 50 sccm N2 equivalent, ultra-low flow configuration, semiconductor process gas service
• MC20A-05000: 5000 sccm N2 equivalent, high-flow valve body, chemical plant gas delivery
• MC20A-10000: 10 slm N2 equivalent, large-bore valve, industrial process gas metering
• MC20A-00020: 20 sccm N2 equivalent, precision low-flow, specialty gas calibration available
• MC20A-30100: OEM-specific range configuration, analog I/O, VCR face-seal fittings
• MC20A-30200: OEM-specific configuration, 4-20 mA signal, process tool integration variant
• MC20A-30500: Mid-range OEM configuration, N2 calibration, standard analog interface
• MC20A-31000: High-range OEM variant, solenoid valve, stainless wetted path
• MC20A-32000: Extended-range OEM configuration, dual-signal output option, refinery gas service
• MC20A-00300: 300 sccm N2 equivalent, thermal bypass sensor, proportional valve control
• MC20A-00010: 10 sccm N2 equivalent, micro-flow precision configuration, lab and R&D service

Quality Control for the MC20A Range

Each MC20A unit processed by DriveKNMS undergoes a structured inspection and functional verification protocol prior to shipment. The procedure addresses the specific failure modes common to thermal mass flow controllers of this generation, including sensor drift from contamination, valve seat wear, and PCB corrosion from process gas exposure.

Inspection steps include: visual examination of wetted surfaces and VCR fittings for corrosion, particulate contamination, or mechanical damage; electrical continuity verification of sensor bridge circuit and valve solenoid coil; functional flow test using nitrogen at calibrated reference conditions with readback comparison against factory specification; zero and span verification against the unit's original calibration certificate where available; and leak integrity check of valve seat at rated inlet pressure. Units that do not meet specification are either reconditioned to tolerance or quarantined and listed as-is for parts recovery. All conforming units ship with a DriveKNMS inspection report.
