TEL SRX-4 0190-09475 Multi-Axis Motion Controller PCB – SRX Series

Technical Dossier

Product Details And Specifications

TEL SRX-4 0190-09475 Multi-Axis Motion Controller PCB: Supply Continuity Strategy for Semiconductor Equipment Procurement

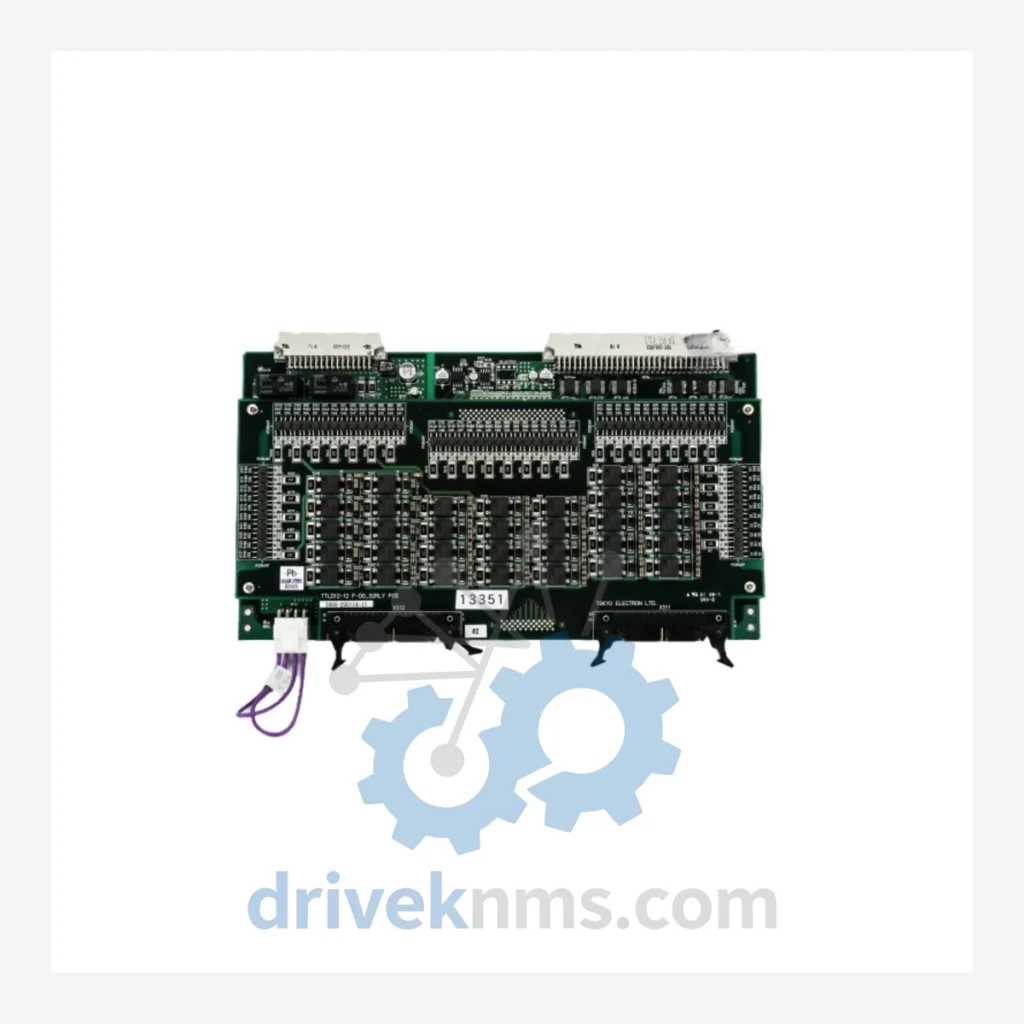

The TEL SRX-4 (P/N: 0190-09475, Assembly: 3880-200114-11) is a multi-axis motion controller PCB used in Tokyo Electron semiconductor processing equipment. Configured with TTLD11-12 F-DO_32 and TTLD12-12 F-DO_32RLY daughter boards, this assembly governs precision axis coordination in wafer handling and process chamber automation. As TEL has transitioned its installed base toward newer platform architectures, this part number is no longer in active production — making verified, traceable inventory the single most critical procurement variable for fabs and OEM service teams still operating legacy TEL tools.

For procurement managers running cost-per-wafer models, an unplanned motion controller failure translates directly into tool downtime, yield loss, and schedule disruption. The question is not whether to source this part — it is where to source it without compromising traceability or compliance.

Procurement Specifications

Cost Optimization & TCO Analysis

When evaluating total cost of ownership (TCO) for legacy semiconductor equipment, the SRX-4 motion controller sits at a high-leverage point: a single failed unit can idle a process tool worth tens of millions of dollars. Procurement teams that rely solely on OEM channels for discontinued parts face two compounding risks — extended lead times (often 8–20 weeks for rebuilt units) and premium pricing with no competitive benchmark.

DriveKNMS operates a multi-tier sourcing network that includes decommissioned fab equipment, certified refurbishers, and cross-regional surplus channels. This allows us to offer the SRX-4 assembly at a price point that is typically 30–60% below OEM list price for equivalent-condition units, without sacrificing functional verification. For high-volume or multi-unit requirements, volume pricing tiers are available upon RFQ.

Spare Parts Turnover Rate Consideration: For fabs maintaining a strategic spares buffer, the SRX-4 has a moderate-to-high criticality rating given its role in axis coordination. We recommend holding at least one cold spare per tool cluster. Sourcing through DriveKNMS allows you to replenish buffer stock at a lower per-unit cost, improving your spare parts ROI without inflating carrying costs.

Unplanned Downtime Risk: Based on industry benchmarks, unplanned semiconductor tool downtime costs between $50,000 and $500,000 per hour depending on tool type and fab utilization. A pre-positioned spare sourced at competitive cost is a straightforward risk mitigation investment with a calculable payback period.

Quality Compliance & Logistics

Every SRX-4 unit shipped by DriveKNMS undergoes functional verification prior to dispatch. We do not ship untested boards. Documentation provided with each shipment includes a test report, serial number record, and export compliance declaration suitable for customs clearance in the US, EU, Japan, South Korea, and Taiwan.

• Warranty: 12 months, covering functional failure under normal operating conditions
• Export Documentation: Commercial invoice, packing list, certificate of conformance, and country-of-origin declaration
• Payment: USD, EUR, CNY, HKD accepted; T/T wire transfer, PayPal, and LC available for qualified buyers
• Logistics: DHL Express, FedEx International Priority, and freight forwarding for multi-unit orders; typical transit 2–5 business days to major industrial hubs
• Packaging: ESD-safe anti-static packaging with foam cushioning; compliant with IPC/JEDEC J-STD-033 handling standards

Why Procurement Managers Choose DriveKNMS

Sourcing discontinued motion controller PCBs from the open market carries real risk: counterfeit assemblies, untested boards sold as functional, and suppliers with no recourse policy. DriveKNMS was built specifically to address these failure modes for industrial and semiconductor procurement teams.

• Global Sourcing Network: We maintain active relationships with decommissioned fab equipment dealers, certified refurbishers, and OEM surplus channels across Asia, North America, and Europe — giving us access to inventory that does not appear on standard distributor platforms.
• Part Number Verification: Our technical team cross-references assembly numbers, revision levels, and daughter card configurations before confirming availability. We will flag mismatches before shipment, not after.
• Financial Compliance: All transactions are documented for audit purposes. We issue formal commercial invoices, support purchase order workflows, and can provide supplier qualification documentation for your vendor approval process.
• Substitution Guidance: If the exact revision is unavailable, we will identify functionally compatible alternatives and provide a compatibility assessment — reducing your engineering team's research burden.
• No-Surprise Policy: Lead time, condition, and pricing are confirmed in writing before any order is placed. We do not substitute parts without explicit buyer approval.
